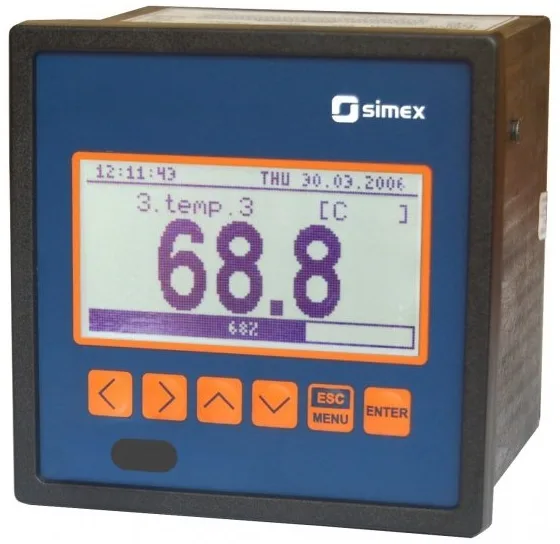

SWT-99 Temperature Indicator

Description

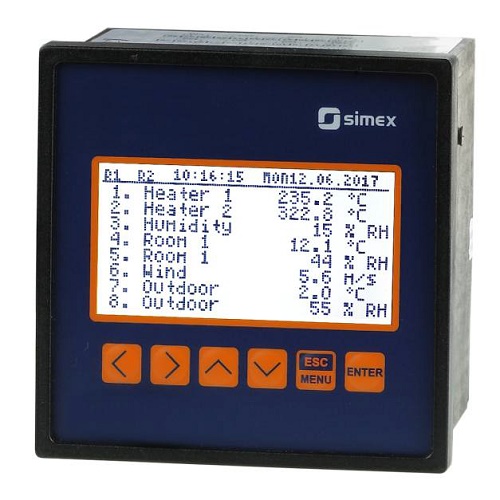

The SWT-99X display is designed for the presentation and measurement of temperature readings from up to 8 input channels. Each channel can be individually identified with any measuring unit. The backlit LCD graphical display allows for visualization of the values from all 8 channels simultaneously. A significant advantage is the possibility of viewing the trends in each measuring channel as the graphs for a period of the last 12 seconds to 8 hours. Each device is equipped with electronic relay outputs that can be used to control external devices. There are icons on the screen signalling the status of the outputs. The meter can be configured using a local keyboard or free S-Toolkit software via the RS485 or USB PC communications port.

Features

  • Multi-Channel display with graphical or numerical display
  • Up to 8 Thermocouples or RTD inputs.
  • 2 Electronic relay outputs
  • Programmable measuring range and indication filtration
  • White or Amber colour LCD
  • RS485, Modbus RTU and USB-PC Comms
  • Free configuration S-Toolkit software

Specifications

Inputs: Thermocouples (Type K, S, J, T, N, R, B or E), RTD (PT100, PT500 or PT1000) or 0-150mV
No. Inputs: 2, 4 or 8 Input Channels
Sampling Rate: Depends on number and type of inputs.
Accuracy: 0.1% (mV, RTD, Type K, J or E); 0.2% (Type N); 0.5% Type S, T, R, B).
Outputs: 2 electronic relays, NO type (ER1, ER2) with max. load 24V AC (35V DC) / 200 mA, overload protection
Display: Graphic LCD, 128 x 64 points, with backlight (amber or white)
Display Range: ± 9999 + decimal point
Power Supply: 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC. Consumption: 7 VA Typical; 12 VA Max
Comms Interface: RS485, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (isolated from measuring inputs)
Operating Temp: 0 to +50°C, optional -20 to + 50°C
Storage Temp: -10 to +70°C
Case Material: NORYL- GFN2S E1
Case Dimensions: 96 x 96 x 100 mm
Panel Cut-out Dims: 90,5 x 90,5 mm
Installation Depth: min 102 mm
Protection Class: IP 65 (front), available options: additional IP 65 frame for panel cut-out sealing; IP 20 (case and connection clips)

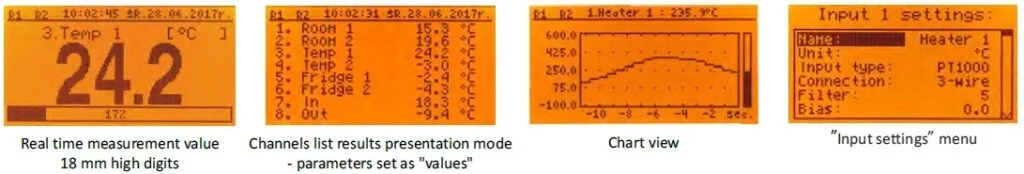

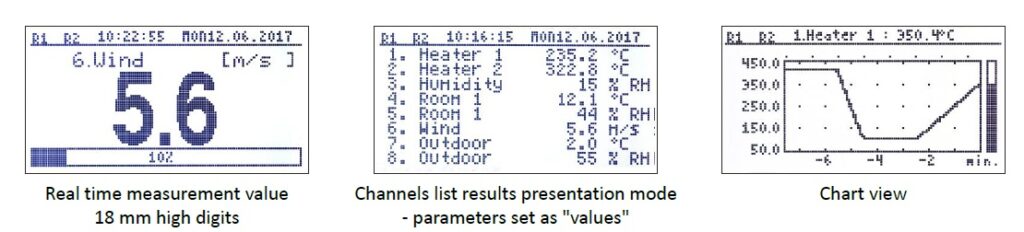

Display Options
