Subsea Temperature Sensor
Subsea Temperature Sensor Output - Large Housing

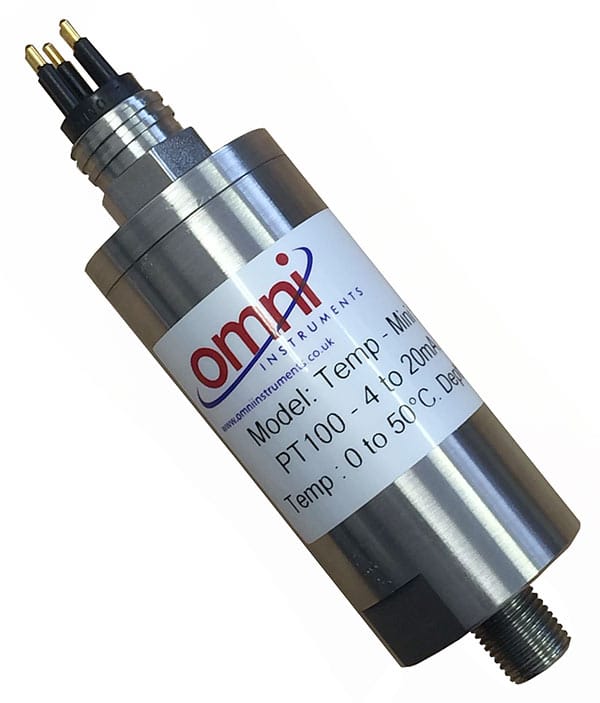

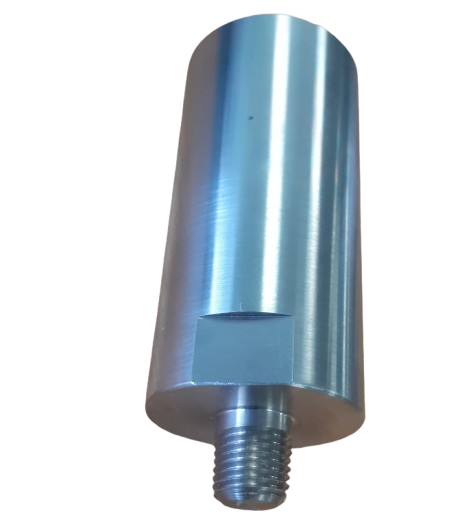

Subsea Temperature Sensor

External subsea temperature sensor fitted in a 316 stainless steel housing suitable for depths to 4000 metres. Measurement range programmable between -50 and 100°C. Supplied with 2-wire 4-20mA, 3-wire 1-5vDC or RS485 Modbus Output. Accuracy 0.2% FSD. Can be fitted with MCBH5M subsea connector or 7/16UNF threaded port to fit your own.

Need help finding the right product?

CONTACT US

Description

Features

  • Suitable for depths up to 4000 metres
  • Measurement range -50 to +80°C
  • Programmable range, Minimum span 40°C
  • 3 wire PT100 sensor
  • 4-20mA loop powered (2-wire), 1-5VDC (3-wire) or RS485 Modbus RTU Outputs
  • Insertion length and fittings to customer requirements
  • Accuracy 0.2% FSD
  • Subcon, Burton or CRE connectors. Standard MCBH5M advised
  • Customised options available.

Specifications

Measurement Range: -50 to +80°C, Minimum span 40°C
Output: 4-20mA, 1-5vDC or RS485 Modbus RTU
Sensor: 3 wire PT100
Accuracy: 0.2% FSD
Operating Temp: -40 to +85°C
Power Supply: 8-35vDC
Dimensions: Diameter 40mm, Length 105mm
Media Compatibility: Any liquid compatible with 316 Stainless Steel
Protection: IP68 to 4000metres seawater
Electrical Connector: 5-pin Subcon Male Connector MCBH5M-SS or other as required
Process Connection: Threads available 1/2″, 3/4″ BSP or NPT Male.
Insertion Probe: 15mm Insertion Probe or other as required.

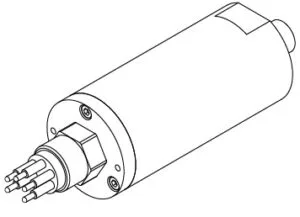

Diagram


Some standard options are listed below and available in limited stock for quick delivery.

SUBSEA-TEMP-SML-0-80C-MA-1/4BSPM-MCBH5M

£780.00

Subsea Temperature Sensor Housing: SML – Small Housing 39.5mm Diameter, 86.5mm Housing Length Temp Range: 0-80C – Measurement Range: 0 to 80°C Output: MA – 2-Wire 4-20mA Output Signal Process Connection: 1/4BSPM – ¼” BSP Male Thread Probe Subsea Connector: MCBH5M – 5-Pin MCBH Miniature Bulkhead Connector
MORE INFO
Add to basket

SUBSEA-TEMP-SML-0-50C-MA-1/2NPTM-25mm-MCBH5M

£780.00

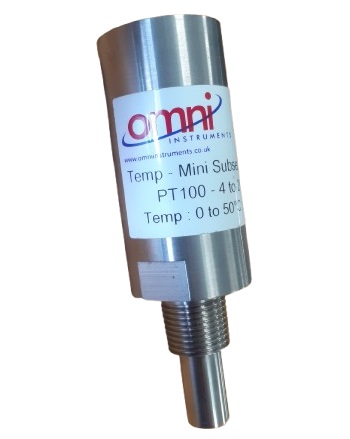

Subsea Temperature Sensor Housing: SML – Small Housing 39.5mm Diameter, 86.5mm Housing Length Temp Range: 0-50C – Measurement Range: 0 to 50°C Output: MA – 2-Wire 4-20mA Output Signal Process Connection: 1/2NPTM – ½” NPT Male Thread Probe Probe Length: 25mm – 25mm Long Insertion Probe with Flat End, 19mm Diameter Subsea Connector: MCBH5M – 5-Pin MCBH Miniature Bulkhead Connector
MORE INFO
Add to basket

SUBSEA-TEMP-SML–20-80C-MA-1/4BSPM-50mm-MCBH5M

£780.00

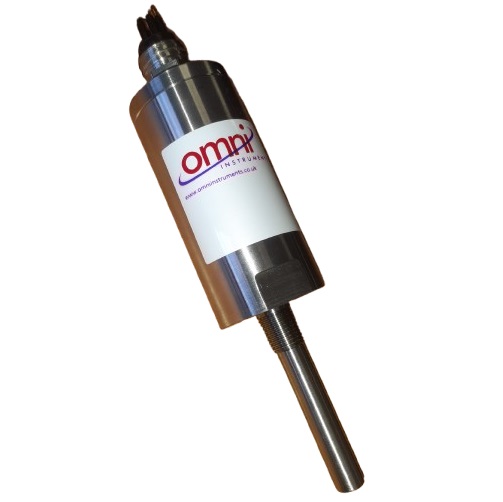

Subsea Temperature Sensor Housing: SML – Small Housing 39.5mm Diameter, 86.5mm Housing Length Temp Range: -20-80C – Measurement Range: -20 to 80°C (Can be amended) Output: MA – 2-Wire 4-20mA Output Signal Process Connection: 1/4BSPM – ¼” BSP Male Thread Probe Probe Length: 50mm – 50mm Long Insertion Probe with Flat End, 10mm Diameter Subsea Connector: MCBH5M – 5-Pin MCBH Miniature Bulkhead Connector
MORE INFO
Add to basket

SUBSEA-TEMP-MED-0-80C-MA-1/2NPTM-MCBH5M

£740.00

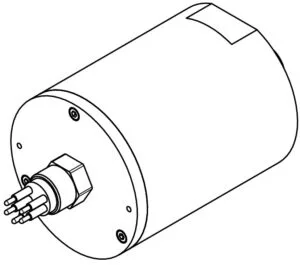

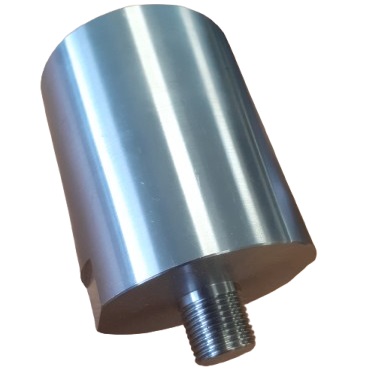

Subsea Temperature Sensor Housing: MED – MED Housing 75mm Diameter, 95mm Housing Length Temp Range: 0-80C – Measurement Range: 0 to 80°C Output: MA – 2-Wire 4-20mA Output Signal Process Connection: 1/2NPTM – ½” NPT Male Thread Probe Subsea Connector: MCBH5M – 5-Pin MCBH Miniature Bulkhead Connector
MORE INFO
Add to basket

SUBSEA-TEMP-MED-0-80C-MA-3/4NPTM-MCBH5M

£740.00

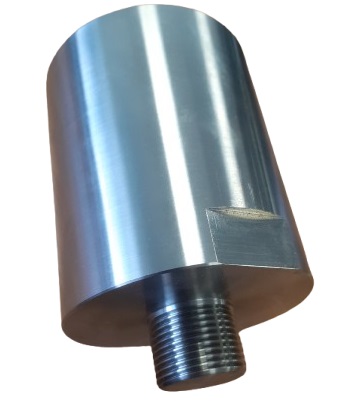

Subsea Temperature Sensor Housing: MED – MED Housing 75mm Diameter, 95mm Housing Length Temp Range: 0-80C – Measurement Range: 0 to 80°C Output: MA – 2-Wire 4-20mA Output Signal Process Connection: 3/4NPTM – ¾” NPT Male Thread Probe Subsea Connector: MCBH5M – 5-Pin MCBH Miniature Bulkhead Connector
MORE INFO
Add to basket
