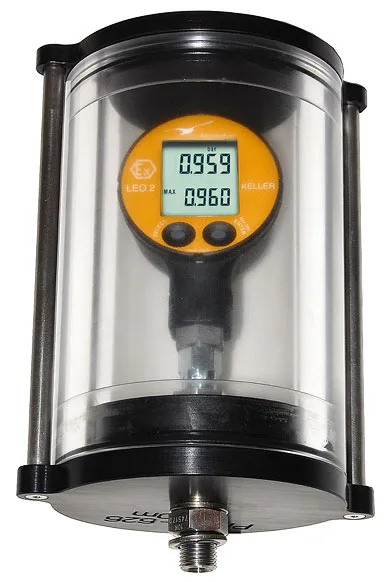

This system comprises of a LEO 2 digital pressure gauge, built into a clear perspex pressure housing suitable for immersion to 1000 metres of seawater. LEO 2 units are available with ranges from -1 to +3 bar, up to 0-700 bar, with a total error band of 0.1%.
The LEO2 is a compact, micro-processor (µP) controlled, highly accurate and versatile pressure measuring instrument with digital indication. The piezoresistive pressure transducer as the heart of the instrument has gone through extensive pressure and temperature tests. Its characteristics are stored in the instruments internal EEPROM. The µP of the LEO 2 reads the characteristic values and calculates therefrom the pressure to an accuracy of 0,1 % over the temperature range of 0…50°C.
The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the MAX.- or MIN- pressure since the last RESET.
LEO 2 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the MAX.- and MIN.-value.
LEO 2 Ei
Intrinsically safe version, 94/9/CE (ATEX 100a)
Classification: EX II 1G EEx ia II C T6 or T5
Certification File: LCIE 01 ATEX 6001X
The EEx ia version of LEO 2 incorporates an additional protection switch. Functions, ranges and accuracy are identical to the standard version.
| Specification | |
| Pressure Ranges | -1…3 bar -1…30 bar 0…300 bar 0…700 bar |
| Accuracy | 0,1% FS typ. |
| Storage- / Operating Temperature | -30…80 °C / 0…50 °C |
| Compensated Temperature Range | 0…50 °C |
| Protection | IP65 |
SUBSEA-LGR-HOUS-1000M
£2,456.65
LEO2-1-3BAR-1/4″BSP
£260.00
LEO2-1-30BAR-1/4″BSP
£260.00
LEO2-300BAR-1/4″BSP
£260.00
LEO2-700BAR-1/4″BSP
£275.00
