Description

• Subsea data logger
• Up to 15 analogue and 2 serial inputs.
• User programmable
• Supports, v, mV, mA, T/C, PT100, resistance, frequency and strain gauge inputs
• 2 serial channels for RS232, RS485, NMEA, SDI12 inputs
• Optional subsea LED display unit
• Internal memory 5M readings
• Depth rated to 4000 metres
• Power supply11-30vDC
• Power consumption 200mA operating, 1mA in idle

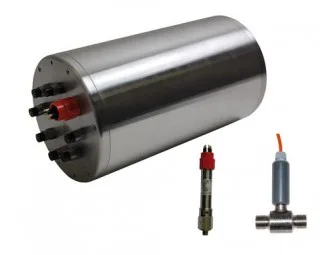

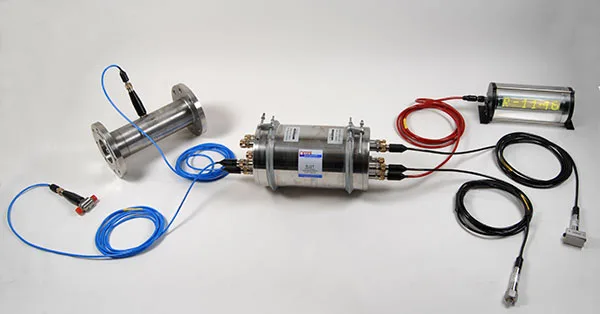

The SDL subsea data logger can be configured to measure a wide range of parameters such as pressure, flow, continuity, conductivity. It is compatible with most sensor analogue outputs and also standard serial protocols. The logger can also be connected to a subsea display unit.

Omni Instruments can also supply subsea flow and pressure sensors compatible with this data logger.
