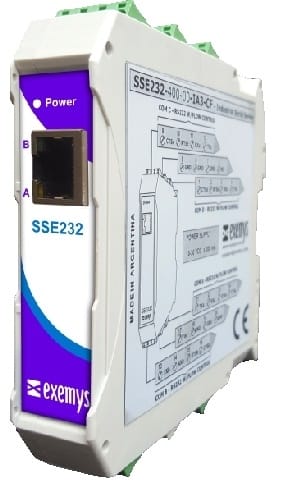

SSE232-IA3 Transparent Serial Server

SSE232-IA3 Industrial Serial Server

The SSE232-IA3 is an Ethernet communications devices designed to connect any serial device (RS232, RS485 or RS422) to a standard Ethernet Network. The SSE232 works as a transparent serial server to convert the serial string to an Ethernet TCP/IP or UDP/UP protocol. Units are available with a single isolated serial port, 4 configurable serial ports, or a single port with 10 configurable digital I/O channels. The 4 channel unit is also available with inbuilt flow control. Serial devices connected to an SSE232-IA unit may be connected over the Ethernet using a second SSE232 device, via virtual COM port software, or via the existing device software (required TCP/IP compatibility).

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

SSE232-IA3 Industrial Serial Server

Description

The SSE232-IA3 is the latest version of the SSE232-IA Serial Servers and allows for the remote connection of serial devices over an Ethernet connection. This allows remote connection to serial devices from anywhere in the world via an Ethernet connection. The SSE232 includes devices with 10 configurable digital I/O channels for remote monitoring and control, without the need for any additional input or output modules. A unit is also available with 4 configurable serial ports and with flow control.

Features

  • Transparent Serial to Ethernet TCP/IP or UDP/IP.
  • Up to 4 RS232, RS485 or RS422 Serial Ports.
  • Ethernet Controlled Digital Input and Outputs.
  • Multi-drop over Ethernet, One server, many clients.
  • DIN Rail Mounted Industrial Casing.
  • Wide 10-30vDC Power Supply.
  • Automated Recovery in Case of Lost Communications.
  • COM Port Redirector Software Enables Existing Software Applications.
  • Digital Input Notification through SNMP Traps. SNMP Digital Outputs Control.
  • Easy Web Browser Configuration.

Applications

  • PLC’s and SCADA Systems
  • Industrial Automation
  • Remote Monitoring
  • Access Control and Security Systems

Specifications

Network Protocols: TCP/IP, UDP/IP. DNS, HTTP, DHCP, ICMP, ARP, SNMP.
Network Port:
 Ethernet 10/100 BaseT, RJ45 Connector
Serial Protocol:
 Transparent
Serial Port:
  Up to 4 RS232/RS485/RS422 via pluggable terminal blocks
Supported Devices:
  Any RS232, RS422 or RS485 serial device
Flow Control: RTS/CTS
Management: HTTP Server, Password protected
Indicators: Network LED, Link LED
Power Supply: 10 to 30vDC
Current Used: 70mA @ 12vDC or 40mA @ 24vDC
Dimensions: 100 x 22.5 x 112mm (H x W x D)
Operating Temp: -15 to +65°C

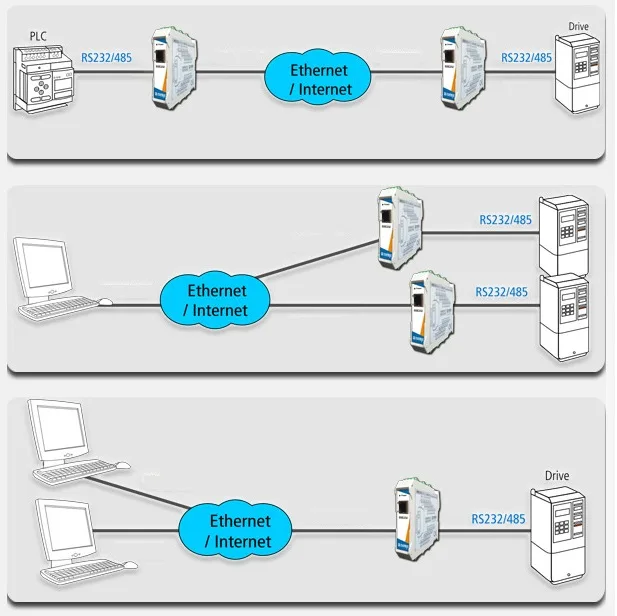

SSE232 Example Configurations



Product

Ref

Price

Product Description
