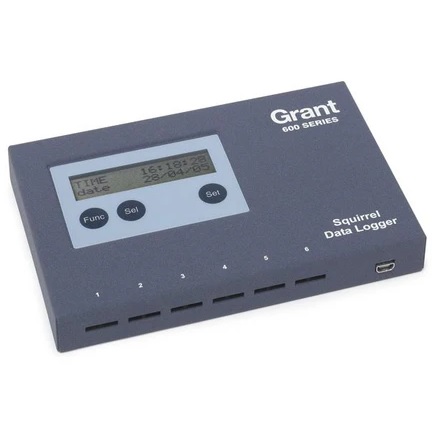

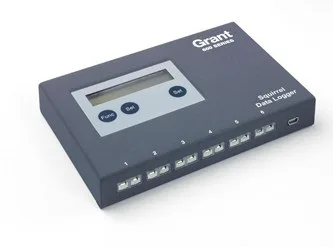

Description
Features
- 6 channels for use with a wide range of K or T type thermocouple probes
- Battery operated and easily portable
- Simple 3 button operation via built in display or from PC
- Can be configured to automatically start and stop logging on time or temperature levels
- Fast sample rates for fast process times: up to 8 samples/second
- Can provide automatic cure calculation in through process applications
- Non-volatile memory provides up to 260,000 readings of secure data
- Time and date reported with each reading
- USB On The Go communication port enables direct printout without the need to connect to a PC
Specifications
| Accuracy | -50 to 500°C, ±0.5°C (-58 to 932F, ±0.9F) -200 to 1300°C, ±1.0°C (-328 to 2372F, ± 1.8F) |
| Resolution | 0.1°C (0.18F) |
| Sampling Rate | Fastest: eight times per second per channel Slowest: once every two hours per channel |
| Channels | 6 K or T type thermocouple |
| Temperature Measuring Range | -200 to 1300°C (-328 to 2372F) (K type) -200ºC to 400ºC (-328 to 752F) (T type) |
| Operating Environment | Temperature range -30 to 65°C Humidity 95% |
| Memory | Flash memory of 260,000 readings |
| Maximum No. Runs Stored | 8 |
| USB Communication | 1.1 and 2.0 compatible |
| Display | Alphanumeric display of 2 x 16 characters |
| Power Supply | Two AA cells to give 200 hours operation at default settings |
| Dimensions (L x W x H) |
153 x 101 x 23mm |
| Weight | 450g |

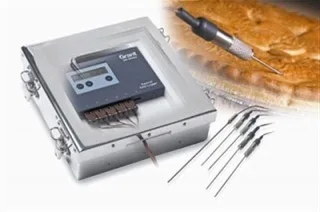

Thermal Barrier Specification
| New Barrier with Phases Change | Heat Sink TB612 | without Heat Sink TB610 | |||||||
| Temp (°C) | 100 | 150 | 200 | 250 | 300 | 100 | 150 | 200 | 250 |
| Duration (mins) | 340 | 195 | 130 | 100 | 30 | 140 | 80 | 60 | 50 |
| Size | 245 x 245 x 115 (L x W x H) | ||||||||
| Weight | 6Kg | 4Kg | |||||||
