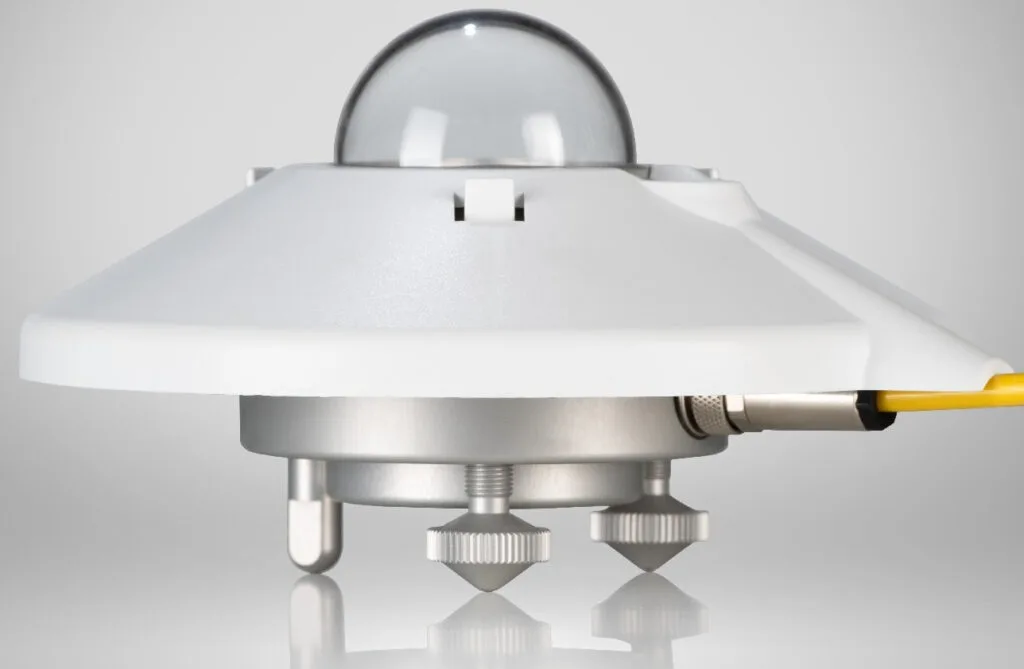

The new SMP12 is an industry’s first fast response spectrally flat Class A Pyranometer that combines solid-state dome heating to mitigate the effects of morning dew, frost or snow. The SMP12 combines proven sensor and diffuser technology from the RaZON+ PH1 and PR1 radiometers with an enhanced version of the Smart interface and the low maintenance of the SMP10. The SMP12 has an internal drying cartridge that will last for at least 10 years if the housing is not opened. This further reduces maintenance significantly. The RS485 Modbus RTU outputs provide an output for solar irradiance (-200 to 2000W/m²), Internal humidity and temperature, plus tilt angle.
The SMP12 is a high quality pyranometer designed for measuring solar irradiance on a plane surface (radiant flux, W/m²), which results from combination of the direct solar radiation and the diffuse sky radiation. The measurement can be made horizontally for Global Horizontal Irradiance (GHI) or tilted for Global Tilted Irradiance (GTI). The SMP12 instrument is designed to measure and report solar irradiance, sensor body temperature, internal humidity and tilt angle from horizontal. The SMP12 can also be used to create an albedometer to measure surface reflectance where one SMP12 is facing the ground and another SMP12 is facing the sky.
All SMP’s have the RS485 Modbus RTU interface, very low power requirements and are supplied with comprehensive, traceable, calibration certificates. Calibrations are traceable to the World Radiometric Reference (WRR) in Davos Switzerland and are performed in accordance with ISO 9847, Annex A.3 ‘Calibration of Field Pyranometers by comparison to a Reference Pyranometer’.s and are supplied with comprehensive, traceable, calibration certificates.
Diagram
| ISO 9060:2018 Classification: | Fast Response Spectrally Flat Class A |
| Spectral Range: | 285 to 2750nm |
| Response Time: | <0.5s (95%) <0.15s (63%) |
| Zero Offset A: | <±1 W/m² |
| Zero Offset B: | <±1.5 Wm² |
| Directional Error (Up to 80º with 1000 Wm² beam): | <±10 Wm² |
| Temperature Dependence of Sensitivity: | <1% (-10 to 40°C) <2% (-40 to 70°C) |
| Digital Output: | 2 wire RS485 Modbus RTU |
| Irradiance Range: | -200 to 2000W/m² |
| Tilt Range: | -180° to 180°, ±0.5° |
| Internal Humidity Range: | 0-100 % RH (±3% accuracy and 1% resolution) |
| Operating Temperature: | -40 to +80°C |
| Supply Voltage: | 8 to 30vDC |
| Power Consumption (Max): | 3.5W |
| Ingress Protection: | IP67 |
SMP12 instruments have an 8-pin socket and can be connected to a standard cable with a pre-wired waterproof 8 pin plug and flying leads. Cable lengths of 10m, 25m, 50m and 100m are available.
0426900
£2,790.00
0426910
£2,920.00
