What is the biggest difference between the original METEON and the METEON 2.0?

Omni Instruments Expert Response: Functionality and connectivity. The original METEON only supports one passive analogue sensor. The METEON 2.0 can power and log up to five Smart sensors, one analogue sensor, and a temperature sensor simultaneously. It also features a built-in Real-Time Clock, so you don't have to reset the date and time every time you switch it on.

Can the METEON 2.0 power my Smart Pyranometers?

Omni Instruments Expert Response: Yes. When running on its 5 x AA internal batteries (or external DC), the METEON 2.0 provides the 12V power required by Kipp & Zonen Smart (SMP/SUV/SGR) sensors via the RS-485 connection.

What is "Transparent Mode"?

Omni Instruments Expert Response: In this mode, the METEON 2.0 acts as a universal RS-485 to USB interface. This allows you to connect Modbus sensors directly to your laptop via the logger to change sensor settings (like Modbus addresses) using the Kipp & Zonen SmartExplorer software.

Meteon 2.0 Data Logger

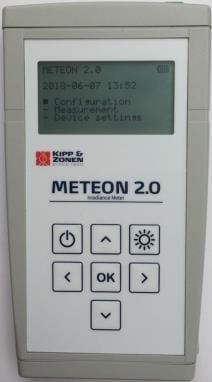

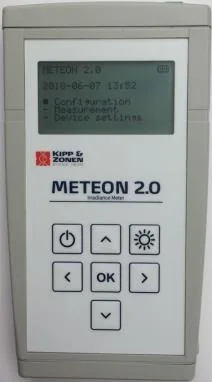

The Meteon is a compact handheld display and data logger optimised for the PV related solar radiation measurement. It comes in a rugged carrying case that also offers room for a pyranometer and cable. It can accept up to 5 Smart pyranometers and one analogue radiometer, plus temperature sensor. A kWh pulse input is also available. The Meteon 2.0 can measure, display and log data from up to 8 devices, or used in transparent mode to act as a universal RS-485 interface for connected Modbus sensors. 5 x AA Internal batteries can provide power to the connected Smart pyranometers. Internal memory for 380,000 values of average, minimum, maximum for 7 instruments + pulse total for a connected kWh meter. USB interface for logger configuration and data download via CSV or xlsx files..

Need help finding the right product?

Downloads

Description

Description

On batteries the METEON consumes 2.5 mA, with back light on this is 12 mA. Each additional SMP adds 7 mA, So logging of one analog and one smart sensor consumes 9.5 mA. With Alkaline batteries of 2200 mAh this means a lifetime of approximately 230 hour. When the METEON is powered with 12VDC this can be transferred to the Modbus sensors as well.

Features

Live irradiance display and logging
Modbus® and analog instruments
Panel temperature sensor input
kWh energy pulse counter
Power and configure Smart sensors
Comparison mode for testing
User-friendly Windows™ software
Long battery life (50 days with 2 AA batteries)

Specifications

Measurement Requirements	Specification
Analog mV range full scale	Suitable for all Kipp & Zonen radiometers
Analog resolution	0.1W
Basic accuracy after calibration	0.1%
Temperature sensitivity over full temperature range	< 0.5%
Offset drift over full temp range	< 3µV
Input circuit	>2M?Ý 470 nF
Sampling / filter	1s, 50 / 60 Hz filtering
Logging	1,2,5… s, min, h, aver, min, max
Modbus input	5 x Smart Sensor
RTC accuracy	5 min /y
Logging	Internal memory
Functionality
Display, logging	Up to 7 sensors
Meteon RS485 port setting	Set communication parameters
Modbus / comm. setting	Set address & comm. (per 1 dev)
Comparison & logging	2 radiation sensors
RS485 to USB	Transparent mode
Design
PC / Calibration	Via mini USB connector

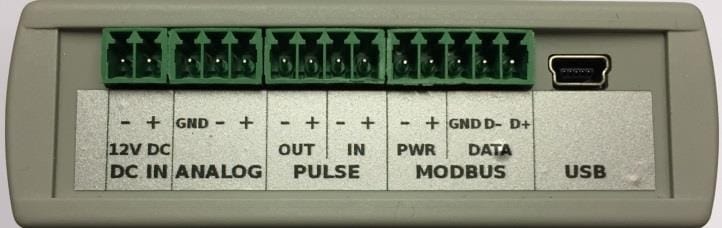

Sensor connectors	Wago / Phoenix
LCD	Graphic, 8 lines of text, back light Good sunlight readability
Keyboard	Up, Down, Left, Right, OK, On/Off, Back Light
Batteries	5 x AA type
Battery life	>3 days, 3 sensors logging
DC connector	input for DC power supply 10 – 24 V (± 10%)
Connected instruments
Analogue	CM, CMP, CUV, SP-Lite, PQS
Modbus	SMP, SUV, SGR, SHP, PR1, PH1, RT1, M&T
Communication	USB,transparent mode RS-485 to USB
USB	Mini USB, opto isolated
RS485	70V tolerant TVS protection
PC Software	Dedicated PC software to: Visualize – Display actual sensor values – Comparison data – Data graph Calibration of METEON 2.0 Export of csv data

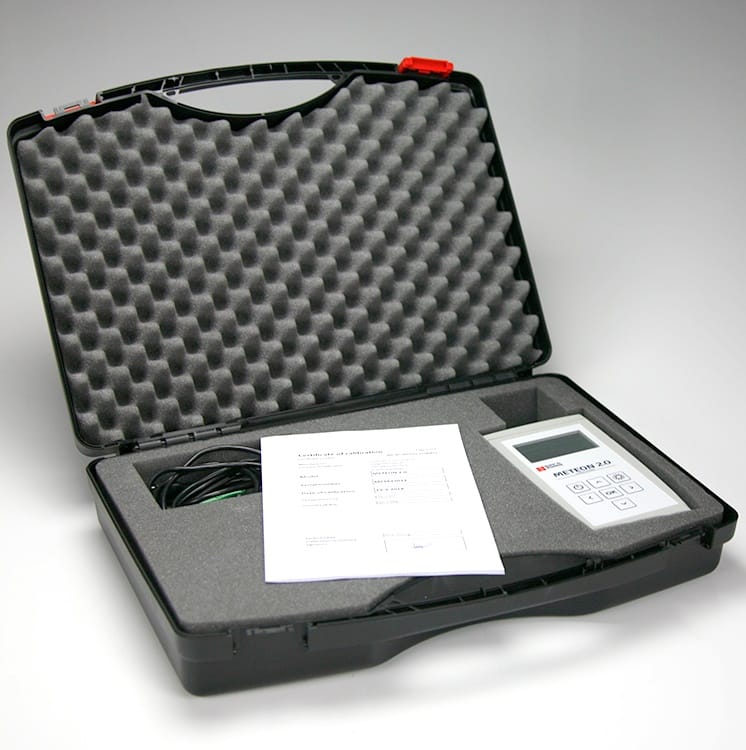

Delivery	METEON 2.0, Carrying case with Room for 1 pyranometer Calibration certificate, USB cable, Connectors for inputs
Environment/Testing
Operating Temperature Range	-10 to +40°C, <95%RH Non-Condensing
Storage Temperature Range	-20 to +50°C, <95%RH Non-Condensing
Approvals	CE / FCC / RoHS

Product

Ref

Price

Product Description

0388900

£1,149.00

Handheld Meteon 2.0 Data Logger with a large LCD display for real-time readings. Logs 380,00 sets of min, max and average values for 7 instruments, including pulse from a connected kWh meter. Programmable logging start delay and interval. IP40. Operating temperature -10 to +40°C. Power supply 10-24vDC or Alkaline AA Batteries. Supplied in a tough carrying case together with: 5 x AA batteries, software, calibration certificate, USB interface cable and space for a radiometer with up to 10m cable. Suitable for up to 5 Smart Sensors (SMP, SHP, SGR, etc) and 1 Analogue Sensor (CM, CMP, CUV, SP-LITE or PQS), 1 pulse input for kWh readings
