Series 10LHP OEM High Pressure Transducers

Description

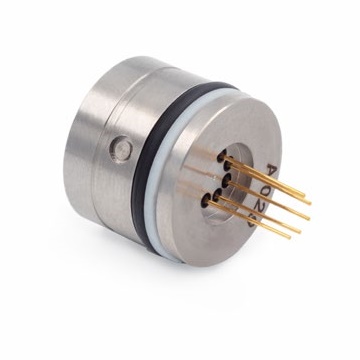

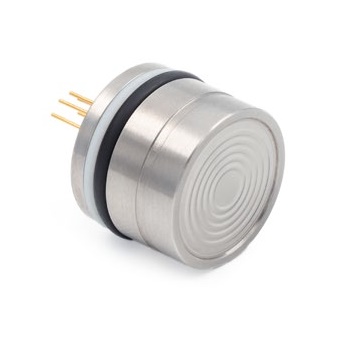

The series 10LHP is Keller’s Flagship high pressure OEM transducer that feature a 19mm diameter capsule with a crevice-free laser welded diaphragm. Each cell undergoes extensive automated testing and is supplied with calibration data, which includes sensitivity, linearity, initial zero offset and thermal effects over the compensated temperature range.

The Series 10LHP OEM cells feature floating O-ring mounting to avoid errors caused by mechanical stress that ensures performance within the specifications. The housing encases the piezoresistive silicon pressure sensor and a small quantity of oil that efficiently transfers the pressure exerted on the diaphragm to the silicon pressure sensor. Standard cells include Silicone oil AK100, but other oils can be use for specific applications. For example, Olive Oil for food applications, Fomblin M100 for Oxygen applications to 330 Bar.

Features

  • Optimum Long-Term Stability
  • Temperature range -40 to +150°C (Compensated -10 to +80°C)
  • Standard housings made from Stainless Steel
  • Very High Proof Pressure
  • Optimised Thermal Behaviour
  • Insulated Piezoresistive Pressure Sensor Encapsulated in an Oil-Filled Metal Housing

Specifications

Pressure Range Burst Pressure Sensitivity (mV/(mA x Bar)
PA PAA Min Typical Max
0 to 100 Bar 250 Bar 1.20 1.60 2.00
0 to 160 Bar 400 Bar 0.75 1.00 1.25
0 to 250 Bar 625 Bar 0.48 0.64 0.80
0 to 400 Bar 1,000 Bar 0.30 0.40 0.50
0 to 600 Bar 1,500 Bar 0.20 0.267 0.333
0 to 1,000 Bar 1,500 Bar 0.12 0.16 0.20
Reference Pressure
at 0 Bar Abs (Vacuum)		 Reference Pressure
at 1 Bar Abs		 Based on
Reference Pressure		 mV/(mA x Bar)

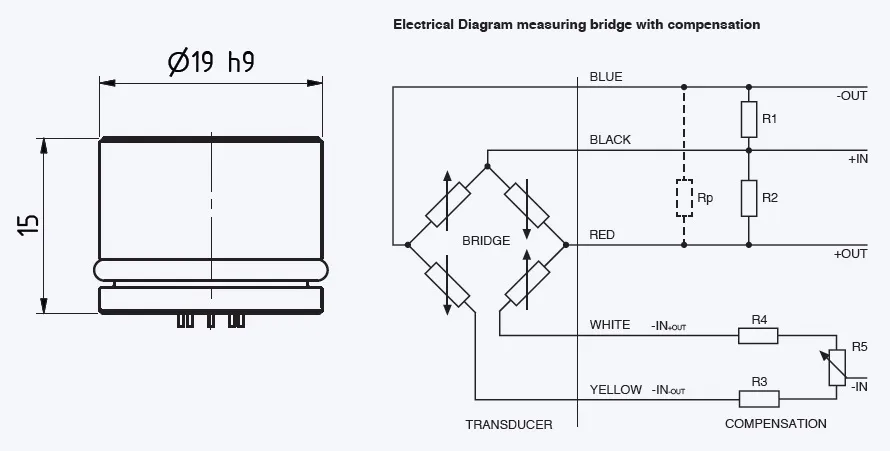

Diagram

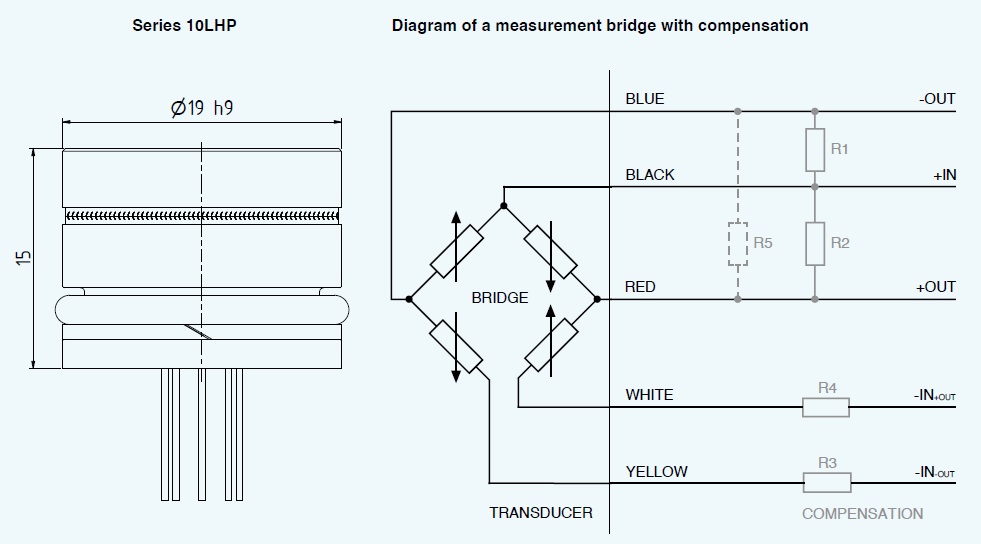

Series 10LHP OEM Pressure Cell Diagram

Customer Specific Options

  • Custom Pressure Ranges
  • Custom Temperature Ranges
  • Custom Mathematical Modelling
  • Electrical Connection with Silicone Wires
  • Housing and Diaphragm made of Hastelloy C-276 or Titanium
  • O-Rings made of Other Materials
  • Other Oil Filling type for Pressure Transducers: eg. Special Oils for Oxygen Applications.
  • Vacuum-optimised Version for Operating Pressures ≤0.1 Bar Abs. on request
  • Modifications to Customer Specific Applications
