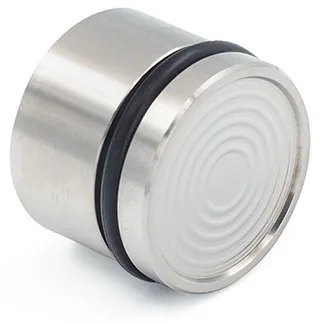

Series 10L OEM Pressure Transducers

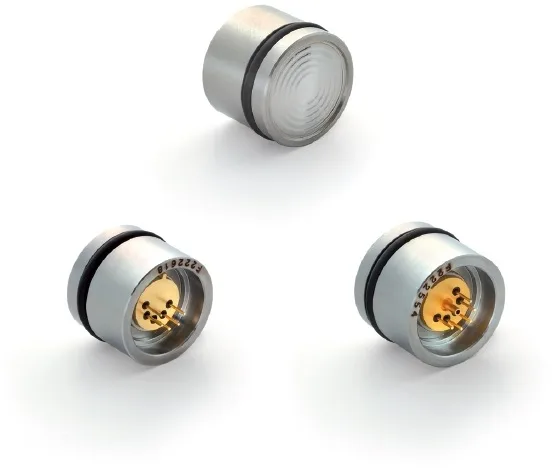

Description

The Series 10L is a versatile pressure transducer of the Keller range, designed to provide a reliable and cost-effective solution for a vast array of industrial applications. With a proven track record for long-term stability and robust performance, the Series 10L OEM pressure transducers are available in pressure ranges up to 200 Bar. To meet the specific requirements of different environments, the Series 10L is offered in relative (vented), absolute, and sealed absolute versions, ensuring precise measurement whether monitoring atmospheric pressure or high-pressure hydraulic systems.

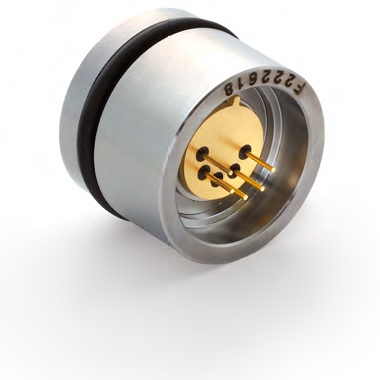

Features

  • Optimum Long-Term Stability
  • Robust Stainless Steel Housing
  • Front-Flush. Crevice-free Laser Welded Diaphragm
  • Very High Proof Pressure
  • Optimised Thermal Behaviour
  • Insulated Piezoresistive Pressure Sensor Encapsulated in an Oil-Filled Metal Housing

Specifications

Pressure Range Proof Pressure Sensitivity (mV/(mA x Bar)
PR PAA PA Min Typical Max
-0.1 to +0.1 Bar 0 to 0.1 Bar 0 to 0.1 BarA 0 to 0.1 Bar 3 Bar 98 130 163
-0.2 to +0.2 Bar 0 to 0.2 Bar 0 to 0.2 BarA 0 to 0.2 Bar 3 Bar 98 130 163
-0.3 to +0.3 Bar 0 to 0.3 Bar 0 to 0.3 BarA 0 to 0.3 Bar 3 Bar 98 130 163
-0.5 to +0.5 Bar 0 to 0.5 Bar 0 to 0.5 BarA 0 to 0.5 Bar 3 Bar 98 130 163
-1 to 0 Bar 0 to 1 Bar 0 to 1 BarA 0 to 1 Bar 6 Bar 60 80 100
-1 to +1 Bar 0 to 2 Bar 0 to 2 BarA 0 to 2 Bar 9 Bar 40 53 66.7
-1 to +2 Bar 0 to 3 Bar 0 to 3 BarA 0 to 3 Bar 9 Bar 40 53 66.7
0 to 5 Bar 0 to 5 BarA 0 to 5 Bar 15 Bar 24 32 40
0 to 10 Bar 0 to 10 BarA 0 to 10 Bar 30 Bar 12 16 20
0 to 20 Bar 0 to 20 BarA 0 to 20 Bar 60 Bar 6 8 10
0 to 30 Bar 0 to 30 BarA 0 to 30 Bar 90 Bar 4 8 6.7
0 to 50 Bar 0 to 50 BarA 0 to 50 Bar 150 Bar 2.4 5.3 4
0 to 100 BarA 0 to 100 Bar 300 Bar 1.2 1.6 2
0 to 160 BarA 0 to 160 Bar 300 Bar 0.75 1.0 1.25
0 to 200 BarA 0 to 200 Bar 300 Bar 0.75 1.0 1.25
Reference Pressure
at Ambient Pressure		 Reference Pressure
at 0 Bar Abs (Vacuum)		 Reference Pressure
at 1 Bar Abs		 Based on
Reference Pressure		 mV/(mA x Bar)

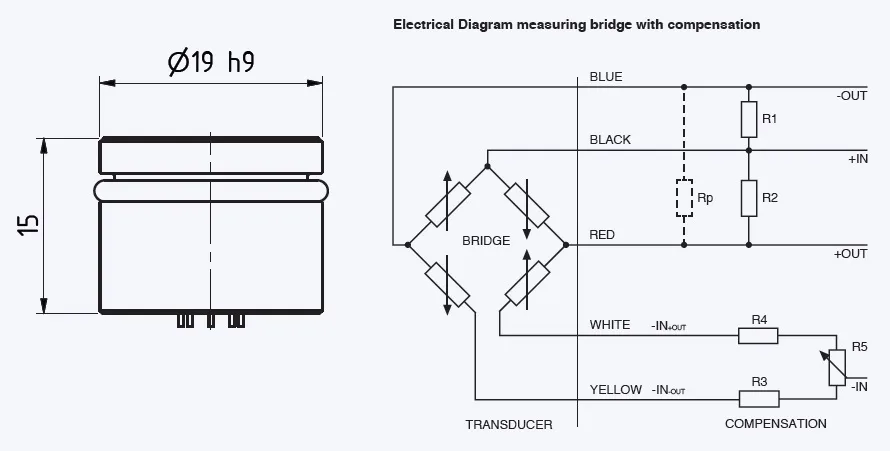

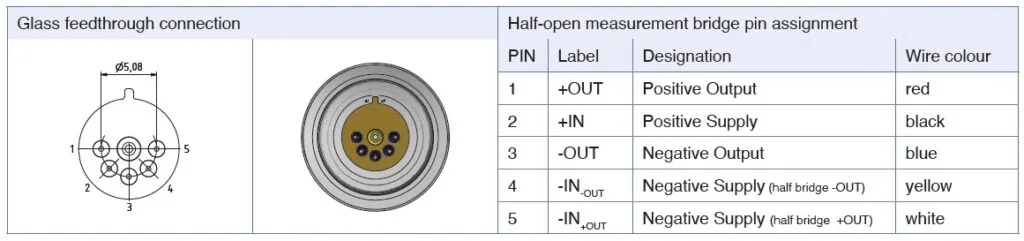

Diagram

Customer Specific Options (Contact for Pricing)

  • Custom Pressure Ranges
  • Custom Temperature Ranges
  • Custom Mathematical Modelling
  • Electrical Connection with Silicone Wires
  • Housing and Diaphragm made of Hastelloy C-276 or Titanium
  • O-Rings made of Other Materials
  • Other Oil Filling type for Pressure Transducers: eg. Special Oils for Oxygen Applications.
  • Vacuum-optimised Version for Operating Pressures ≤0.1 Bar Abs. on request
  • Modifications to Customer Specific Applications
