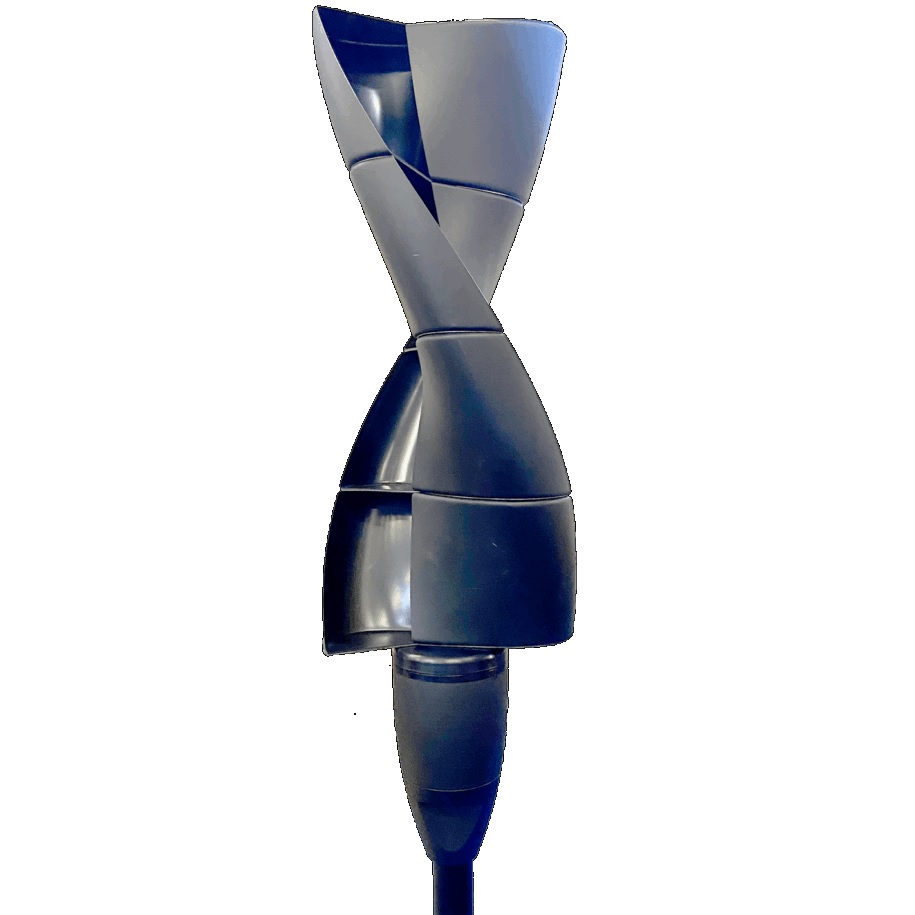

Rutland VertX 360 Windcharger

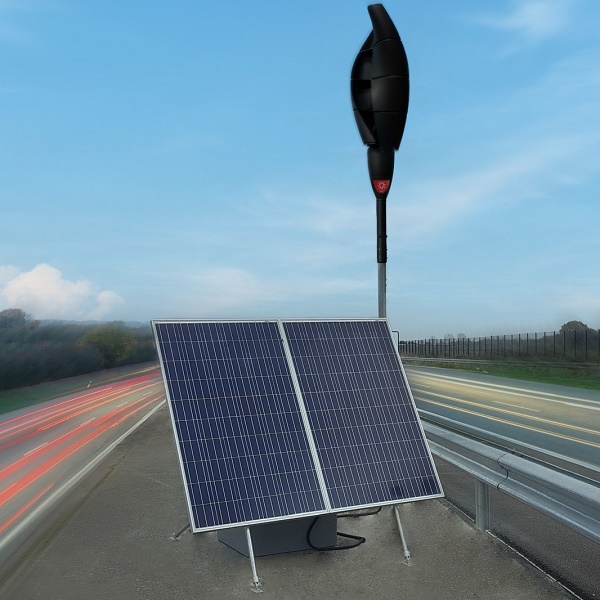

The Rutland VertX 360 Windcharger utilises a vertical axis configuration, meaning its main rotor shaft is set vertically. This architecture, coupled with a specifically engineered, compact Savonius turbine design, offers a distinct operational advantage to the horizontal rotor design: the turbine is inherently omni-directional. Crucially, this design also minimises noise pollution, allowing the unit to maintain silent operation and high efficiency even when deployed in urban, highway or solar hybrid environments, where turbulent airflows can exist.

Need help finding the right product?

Downloads

Description

Description

Designed with a vertical axis Savonious turbine, the Rutland VertX 360 is ideal for off-grid power generation, even in locations with turbulent winds. Its compact size and whisper-quiet operation make it perfect for urban, highway, and solar hybrid systems. Equipped with the latest Neodymium rare earth magnets and a dedicated MPPT controller, the VertX 360 maximises efficiency and delivers consistent power all year-round.

Features

Compact Savonious Turbine Design
Whisper-Quiet Operation
Generator Built With Neodymium Rare Earth Magnets
Comes supplied with MPPT High-Efficiency Controller, SMR1
Low wind speed start of around 5 knots
Generates 46W @ 21 knots, 92W @ 29 knots
Delivers up to 100W

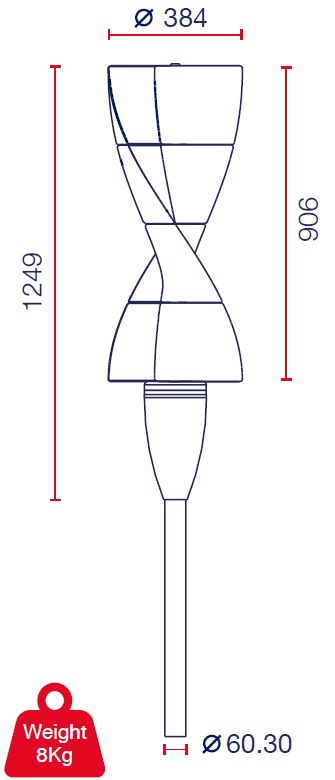

Dimensions

Product

Ref

Price

Product Description

CA-09/01

£588.53

Rutland VertX360 Wind Turbine. with Silent Vertical-Axis Savonious Turbine Design. Power Output: 5 Watts @ 5m/s, 92 Watts @ 15m/s. Voltage Output: 12V. Cut in Speed: 5m/s, Rotor Diameter: 384mm, Rotor Height: 906mm. Weight: 8Kg (net), Supplied with Marlec SMR1 12V Charge Controller and Fixing Kit.
