Description
Features
- Low wind speed start up of just 5 knots
- Generates 25w @ 19 knots, 6W @ 10 knots
- Delivers up to 80W
- Three phase Rutland “unique” generator design
- Turbine are made from computer designed efficient aerofoil blades.
- A sharper nose dome to improve the flow of wind to the turbine.
- Long tail fin to improve the orientation of the turbine to wind and maintain stability.
- High grade body and nose material with improved UV stability and durability.
- No radiated interference – complies with EEC directive 89/336/EEC
The Rutland 504 “e-furl” Windcharger is suitable for land based applications and includes an in-built electronic furling system that operates in high winds. When activated this “e-furl” will put the turbine through a cycle of slowing down and speeding up periodically thus reducing the stresses on the turbine and tower. When storm winds are forecast and where possible the turbine can be restrained to minimise wear and tear. When structural damage to properties etc is forecast the turbine must be restrained.

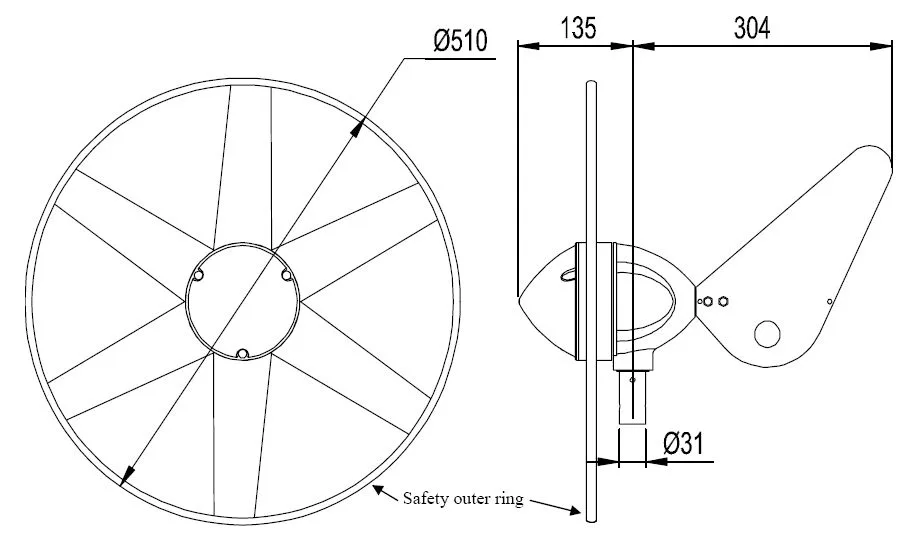

Dimensions
