Description

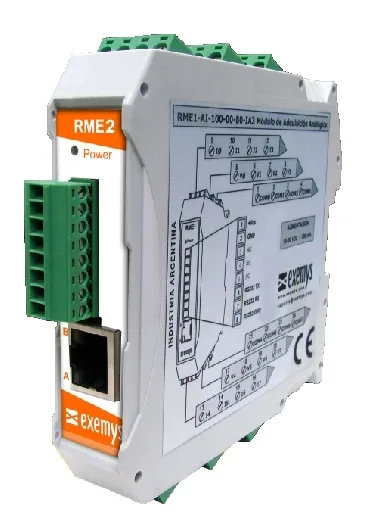

The RME2 modules allows for inputs to be collected from up to 8 sensors and read in five different ways simultaneously (Modbus TCP, Web Page HTTP, SNMP, CSV and XML). The RMS2 modules can be used to read the values via a Modbus ASCII or Modbus RTU serial protocol

Features

• RME2-AI has 8 Configurable analog differential 12 bit inputs: 4-20mA, 0-10 Volts
• RME2-TC has 8 thermocouple inputs selectable J, K, T, R, N, E or S type.
• RME2-PT has 8 PT100 inputs
• Wide range of power supply from 10-30vDC.
• Easy configuration.
• Industrial pluggable terminal blocks.
• DIN Rail mounting

Applications

• Analog sensors supervision.
• Battery voltage monitoring.
• Data acquisition general application.
• Remote monitoring systems.
• PLC and SCADA systems.
• Industrial automation.
• Data center monitoring
