RI-TV Series Isolated Voltage Transducer

RI-TV Series Isolated True RMS Voltage Transducer

A DIN Rail mounted voltage transducers suitable for converting AC and DC voltage to a proportional mA or voltage output. The TVV0010 is powered by a 85-265vAC mains supply and TVV0040 is powered by 10-36vDC with a full range of selectable AC voltage inputs and mA or V outputs. The TVV0020L is a loop powered 4-20mA output for a selectable voltage input, plus the TVV-0030 includes selectable DC voltage input ranges. The 1.5kVrms isolated mA or voltage output signals can be monitored by suitable display, loggers and other monitoring equipment.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

RI-TV Voltage Transducer

Description

Features

  • Isolated DC mA or DC voltage output
  • Configurable input and output ranges.
  • DIN rail mounting enclosure
  • 1.5kV rms isolation (40-70Hz)
  • Screw type terminals

Models Available

RI-TVV0010 – 85-265vAC/DC Powered with selectable AC Voltage inputs and mA or V output
RI-TVV0040 – 10-36vDC Powered with selectable AC Voltage inputs and mA or V output
RI-TVV0030 – 10-36vDC Powered with selectable AC/DC Voltage inputs and mA or V output
RI-TVV0020L – 9-30vDC Loop Powered with selectable AC Voltage inputs and 4-20mA output

Product

Ref

Price

Product Description

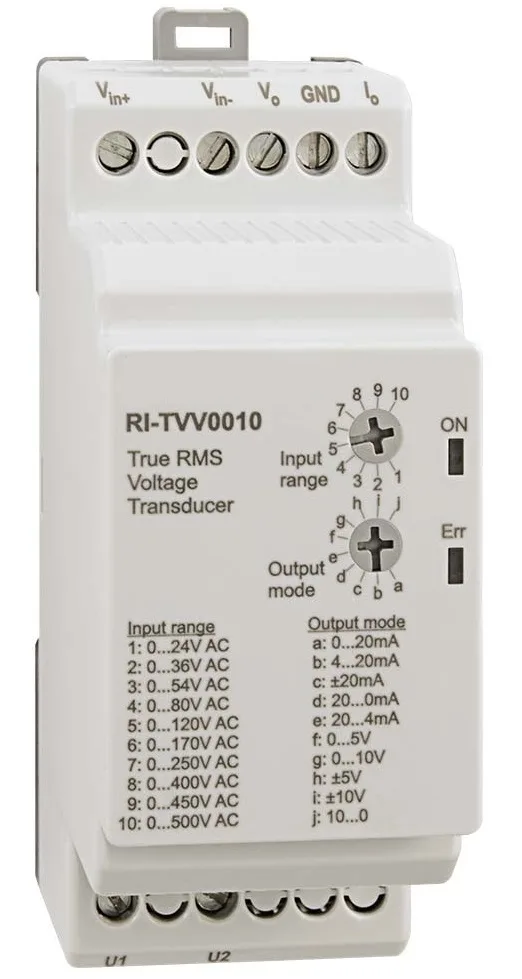

RI-TVV0010 Voltage Transducer

RI-TVV0010

£82.13

RI-TV Series Isolated True RMS Voltage Transducer. DIN Rail Mounted with Screw Terminals. Selectable Input Range: 0-24, 0-36, 0-54, 0-80, 0-120, 0-170, 0-250, 0-400, 0-450, 0-500vAC. Selectable Output Range: 0-20mA, 4-20mA, ±20mA, 20-0mA, 20-4mA, 0-5V, 0-10V, ±5V, 10V, 10-0V. Supply Voltage: 85-265vAC/DC @ 1.5W. Operating Temp -20 to +60°C, IP20. Dimensions 90 x 57.5 x 36mm.
MORE INFO
Add to basket
RI-TVV0040 Voltage Transducer

RI-TVV0040

£136.23

RI-TV Series Isolated True RMS Voltage Transducer. DIN Rail Mounted with Screw Terminals. Selectable Input Range: 0-24, 0-36, 0-54, 0-80, 0-120, 0-170, 0-250, 0-400, 0-450, 0-500vAC. Selectable Output Range: 0-20mA, 4-20mA, ±20mA, 20-0mA, 20-4mA, 0-5V, 0-10V, ±5V, 10V, 10-0V. Supply Voltage: 10-36vDC @ 1.5W. Operating Temp -20 to +60°C, IP20. Dimensions 90 x 57.5 x 36mm.
MORE INFO
Add to basket
RI-TVV0010 Voltage Transducer

RI-TVV0030

£82.13

RI-TV Series Isolated True RMS Voltage Transducer. DIN Rail Mounted with Screw Terminals. Selectable Input Range: 0-24, 0-54, 0-120, 0-250, 0-450vAC &  0-24, 0-54, 0-120, 0-250, 0-450vDC. Selectable Output Range: 0-20mA, 4-20mA, ±20mA, 20-0mA, 20-4mA, 0-5V, 0-10V, ±5V, 10V, 10-0V. Supply Voltage: 10-36vDC @ 1.5W. Operating Temp -20 to +60°C, IP20. Dimensions 90 x 57.5 x 36mm.
MORE INFO
Add to basket
RI-TVV0010 Voltage Transducer

RI-TVV0020L

£82.13

RI-TV Series Loop Powered Isolated True RMS Voltage Transducer. DIN Rail Mounted with Screw Terminals. Selectable Input Range: 0-24, 0-36, 0-54, 0-80, 0-120, 0-170, 0-250, 0-400, 0-450, 0-500vAC. Selectable Output Range: 4-20mA. Loop Power Supply: 9-30vDC. Operating Temp -20 to +60°C, IP20. Dimensions 90 x 57.5 x 36mm.
MORE INFO
Add to basket
