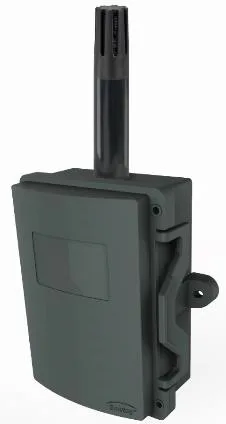

RH-W Wall Mount Temperature and Humidity Transmitter

RH-W Wall Mount Temperature and Humidity Transmitter

The RH-W Wall Mounted Humidity and Temperature Sensors offer the latest technology high precision and accuracy Relative Humidity & Temperature elements. Jumper selectable 0-10v (0-5V) and 4-20mA (2/3-Wire) outputs. An optional multi-line backlit LCD display is available, custom temperature ranges can be requested between -20 and +50°C and direct PTC/NTC sensing Elements. Enthalpy and Dew Point Measurements optional.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

RH-W Wall Mounted Transmitter

Description

Features

  • Robust Sensor Enclosure
  • Easy Installation with LED Indication, test button and auto-output mode detection (3-wire)

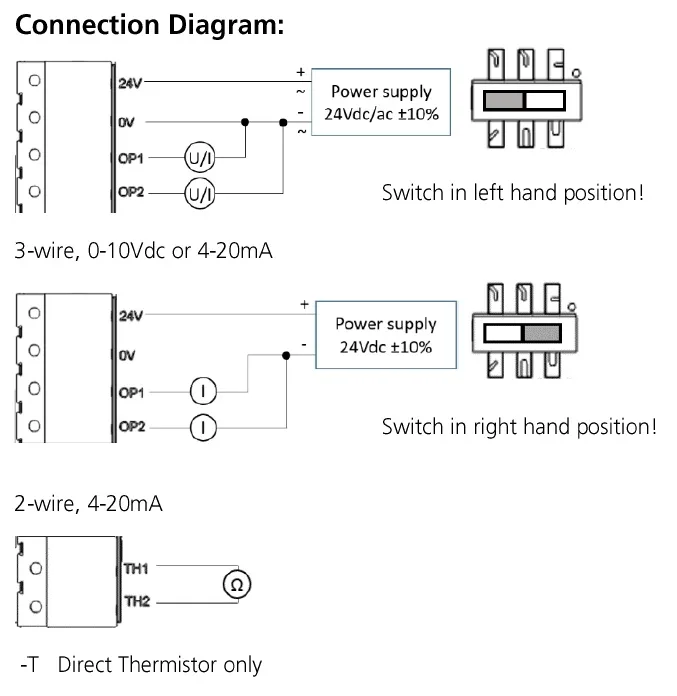

  • Supports 2-wire loop powering, or 3-wire installation.
  • Pluggable Terminal blocks and tool free installation.
  • 4-20mA, 0-10vDC (5V Options) Outputs (link selectable)
  • Direct thermistor temperature options available
  • ±2% and ±3% Accuracy



Specification

Output Range: Humidity: 0-100%RH
Temperature: -20 to +50°C (standard)
Enthalpy: -20 to +250kj/Kg
Dew Point: -50 to 50°C
Accuracy: Humidity: ±3%, ±2%optional.
Temperature: ±0.3°C
Enthalpy: 1.8kj/Kg typical
Dew Point: 1.2°C typical
Output: 4-20mA or 0-10V (0-5V Option) (Jumper Selectable)
Power Supply: 24vDC ±10% (2-Wire Loop Powered Option)
Ingress Protection: IP54

Product

Ref

Price

Product Description

RH-W Air Temp & Relative Humidity Transmitter

RH-W

£147.71

RH-W Wall-mounted Air Temperature and Relative Humidity transmitter with Jumper Selectable 0-10vDC or 4-20mA Outputs. Measurement Range 0-100% RH, -20 to +50°C with an accuracy of ±3%RH (20 to 80%RH), ±0.5°C. Power Supply: 24vDC ±10%. Unit is housed in a PC/GF (Halogen free, Flame Retardant & UV Stabilized enclosure with an IP54 rating. Dimensions 102 x 105 x 85mm
MORE INFO
Add to basket
RH-W-AH High Accuracy Temperature & Relative Humidity Transmitter

RH-W-AH

£172.33

RH-W-AH Wall-mounted Air Temperature and Relative Humidity transmitter with Jumper Selectable 0-10vDC or 4-20mA Outputs. Measurement Range 0-100% RH, -20 to +50°C with an accuracy of ±2%RH (20 to 80%RH), ±0.5°C. Power Supply: 24vDC ±10%. Unit is housed in a PC/GF (Halogen free, Flame Retardant & UV Stabilized enclosure with an IP54 rating. Dimensions 102 x 105 x 85mm
MORE INFO
Add to basket
RH-W-AH-LC High Accuracy Temperature & Relative Humidity Transmitter with Display

RH-W-AH-LCD

£242.82

RH-W-AH-LCD Wall-mounted Air Temperature and Relative Humidity transmitter with Jumper Selectable 0-10vDC or 4-20mA Outputs and LCD Display. Measurement Range 0-100% RH, -20 to +50°C with an accuracy of ±2%RH (20 to 80%RH), ±0.5°C. Power Supply: 24vDC ±10%. Unit is housed in a PC/GF (Halogen free, Flame Retardant & UV Stabilized enclosure with an IP54 rating. Dimensions 102 x 105 x 85mm
MORE INFO
Add to basket
RH-W Air Temp & Relative Humidity Transmitter. 0-5V or 4-20mA Outputs

RH-W-5V

£147.71

RH-W-5V Wall-mounted Air Temperature and Relative Humidity transmitter with Jumper Selectable 0-5vDC or 4-20mA Outputs. Measurement Range 0-100% RH, -20 to +50°C with an accuracy of ±3%RH (20 to 80%RH), ±0.5°C. Power Supply: 24vDC ±10%. Unit is housed in a PC/GF (Halogen free, Flame Retardant & UV Stabilized enclosure with an IP54 rating. Dimensions 102 x 105 x 85mm
MORE INFO
Add to basket
RH-W-5V-AH High Accuracy Temperature & Relative Humidity Transmitter

RH-W-5V-AH

£100.19

RH-W-5V-AH Wall-mounted Air Temperature and Relative Humidity transmitter with Jumper Selectable 0-5vDC or 4-20mA Outputs. Measurement Range 0-100% RH, -20 to +50°C with an accuracy of ±2%RH (20 to 80%RH), ±0.5°C. Power Supply: 24vDC ±10%. Unit is housed in a PC/GF (Halogen free, Flame Retardant & UV Stabilized enclosure with an IP54 rating. Dimensions 102 x 105 x 85mm
MORE INFO
Add to basket
