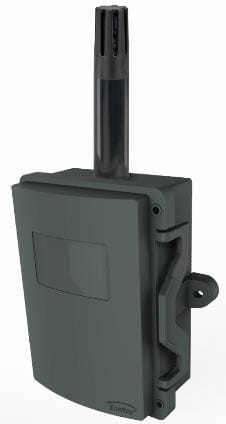

RH-W Wall-mounted Air Temperature and Relative Humidity transmitter with Jumper Selectable 0-10vDC or 4-20mA Outputs. Measurement Range 0-100% RH, -20 to +50°C with an accuracy of ±3%RH (20 to 80%RH), ±0.5°C. Power Supply: 24vDC ±10%. Unit is housed in a PC/GF (Halogen free, Flame Retardant & UV Stabilized enclosure with an IP54 rating. Dimensions 102 x 105 x 85mm
£147.71
| Output Range: | Humidity: 0-100%RH Temperature: -20 to +50°C (standard) Enthalpy: -20 to +250kj/Kg Dew Point: -50 to 50°C |
| Accuracy: | Humidity: ±3%, ±2%optional. Temperature: ±0.3°C Enthalpy: 1.8kj/Kg typical Dew Point: 1.2°C typical |
| Output: | 4-20mA or 0-10V (0-5V Option) (Jumper Selectable) |
| Power Supply: | 24vDC ±10% (2-Wire Loop Powered Option) |
| Ingress Protection: | IP54 |
DPA
£26.95
