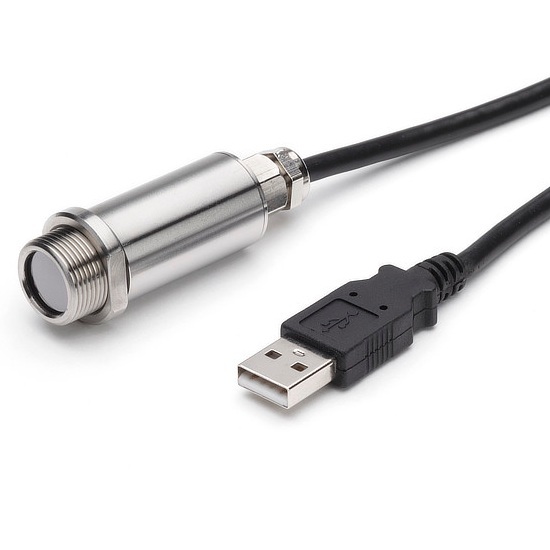

PyroMiniUSB Infrared Temperature

Description

The PyroMiniUSB allows users to safely monitor critical surface temperatures without disturbing your process or compromising clean environments. It combines compact portability with high-speed response times, providing consistent, contactless temperature tracking where standard contact probes can’t go. The PyroMiniUSB is powered via the USB connection and users can stream real-time contactless temperature data straight to your custom software via Modbus.

Applications

  1. Benchtop and Laboratory
    • With the precision and robustness of our industrial pyrometers, and the plug-and-play convenience of USB, the PyroMiniUSB is the ideal benchtop temperature sensor for testing and experimentation.
  2. Education
    • The PyroMiniUSB is ideal for teaching science concepts such as emissivity, reflectivity, thermal conductivity, energy transfer, insulation and internal energy.
  3. Calibration Checking
    • Combined with a blackbody calibration source, the PyroMiniUSB makes the ideal calibration reference pyrometer. Keep one in your calibration room and check the performance of your other sensors against it. Calibration certificates are available on request for traceability.

Features

  • Miniature non-contact temperature sensor with USB communications
  • Measures temperatures from -20°C to 1000°C
  • USB cable included
  • Free software for data logging and configuration
  • Modbus protocol – use your own software to communicate with the sensor

Specifications

General

Temperature Range: -20 to +1000°C
Interface: USB
Accuracy: ±1°C or 1%, Whichever is Greater
Repeatability: ±0.5°C or 0.5%, Whichever is Greater
Emissivity Setting Range: 0.20 to 1.00
Response Time: 240 ms (90% Response)
Spectral Range: 8 to 14μm
Supply Voltage: 5vDC @ 50mA Max
Baud Rate: 9600 Baud Rate
Modbus Data Format: 8 Data Bits, No Parity. 1 Stop Bit
Protocol: Modbus Over Serial Line

Mechanical

Construction Stainless Steel 316
Dimensions 18mm Diameter x 45mm
Mounting M16 x 1mm Thread
Cable Length 1.45m
Cable Connections Removable Screw Terminals Blocks
Operating Conditions 0 to 75°C, 95%RH (Non-Condensing)
IP Rating IP65
Certification CE Marked
