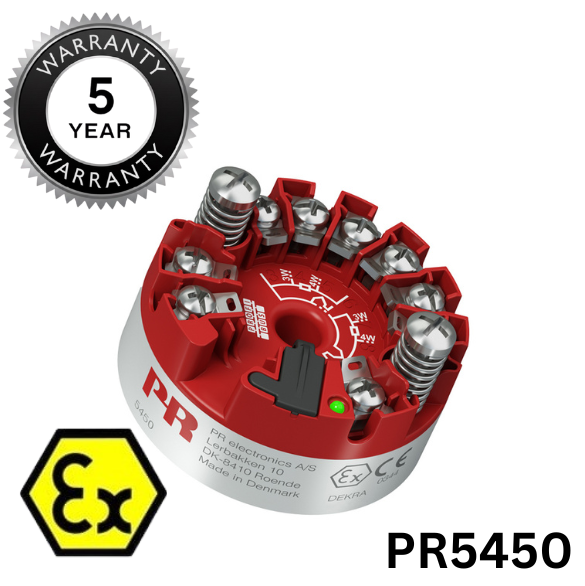

PR 5450 Profibus PA Transmitter

PR 5450 Profibus PA Transmitter

The PR 5450 is a high-performance PROFIBUS PA temperature transmitter designed for demanding industrial environments. It provides universal input capability for a wide range of RTD, thermocouple, mV, and resistance sensors, making it an extremely versatile and valuable asset for digital bus networks. A key feature is its true dual-input functionality, which enables sensor redundancy and drift detection. This allows for proactive maintenance and ensures continuous, reliable operation in critical applications. With exceptional accuracy, robust galvanic isolation, and comprehensive diagnostics compliant with NAMUR standards, the PR 5450 ensures signal integrity and seamless integration into modern process control and asset management systems.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PR 5450A Profibus PA Temperature Transmitter

Datasheet

PR 5450B Profibus PA Temperature Transmitter

Datasheet

PR 5450D Profibus PA Temperature Transmitter

Description

The PR 5450 is a sophisticated and versatile Profibus PA temperature transmitter, engineered for the most demanding process control environments. It integrates seamlessly into modern digital bus communication networks while offering the same wide range of input types as a universal transmitter. Its advanced features are designed to improve efficiency, reliability, and security in critical applications.

Profibus Communication & Universal Input

  • PROFIBUS PA Profile 4.0: The 5450 is designed for seamless integration into Profibus PA networks, replacing the traditional 4-20mA signals with a robust digital communication protocol.
  • Universal Input: This unit accepts signals from a wide array of sensors, including RTDs (PT100, PT1000, Ni100), Thermocouples (Types B, E, J, K, L, N, R, S, T, U, W3, W5, LR), linear resistance, potentiometers, and bipolar mV signals. This universal capability simplifies stock control and reduces spare parts inventory.

Features

  • True Dual Input & Sensor Redundancy: With its high-density 7-terminal design, the PR 5450 offers true dual-input capability. This allows for sensor redundancy, ensuring uninterrupted operation and providing a crucial safety net in critical applications.
  • Sensor Drift Detection: The unit can be programmed to continuously monitor two sensors and alert operators if the differential between them exceeds a user-defined limit, enabling proactive maintenance and preventing process errors.
  • High Measurement Accuracy: The 5450 provides exceptional accuracy of 0.04°C, ensuring reliable and precise readings for even the most sensitive processes.
  • Galvanic Isolation (2.5 kVAC): Providing superior protection against ground loops and electrical noise, the high-level isolation ensures a clean and reliable signal in electrically harsh environments.
  • PC-Programmable: The unit’s functions and parameters are easily configured via PROFIBUS PA using standard device drivers (DD/DTM/GSD), simplifying setup and commissioning.
  • Extensive Diagnostics: The device is compliant with NAMUR NE21, NE44, NE89, and NE107, providing extensive diagnostic information for proactive asset management.
  • Ex i & FISCO Compliance: The PR 5450 is designed for safe deployment in hazardous environments with conformity to FISCO IEC 60079-27.
  • 5-Year Warranty: The 5-year warranty on all Omni Instruments supplied PR 5450 Transmitters ensures long-term reliability and peace of mind.



Profibus PA

Profibus PA is the Profibus solution for process automation. Profibus PA connects automation systems and process control systems with field devices such as pressure, temperature and level transmitters. Profibus PA can be used as a substitute for the analogue 4 to 20mA technology. Profibus PA achieves cost savings of over 40% in planning, cabling, commissioning and maintenance and offers a significant increase in functionality and security.

Options

Type Version Inputs
5450 A: Zone 2 and zone 22 / Class I, Division 2, Groups A, B, C, D.
B: Zone 0, 1, 2 and zone 21, 22 including M1.
D: Zone 0, 1, 2 and zone 21, 22 including M1 / Class I, Division 1, Groups A, B, C, D.		 1: Single Input (4 Terminals)
2: Dual Input (7 Terminals)

If required, Omni Instruments will program a PR 5450 to your specific requirements. Please contact us for details.



5450D is due to become available September 2025

Product

Ref

Price

Product Description

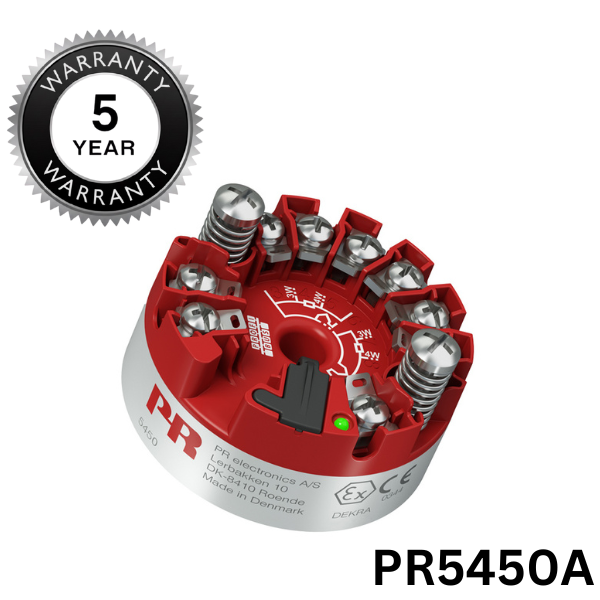

5450A1

£321.00

PR 5450A1 2-Wire Programmable Profibus PA Transmitters. Single Channel Input: -800 to 800mV or -0.1 to +1.7V; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 100kΩ or Potentiometer 10 to 100kΩ. Output: Profibus PA. Accuracy ≤±0.05% of span. Response Time: 75ms. Power Supply 7.5-48vDC @ <352mW. 1.5kVAC Galvanic Isolation. Namur NE21, NE44, NE89 and NE107. Approvals: Zone 2, (ATEX, IECEx & INMETRO); Zone 2 – Div 2 (CSA, FM); NEPSI & EAC Certification; SIL 2/3 Full Assessment IEC 61508. Operating Temp: -40 to +85°C.
MORE INFO
Add to basket

5450A2

£321.00

PR 5450A2 2-Wire Programmable Profibus PA Transmitters. True Dual Channel Inputs: -800 to 800mV or -0.1 to +1.7V; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 100kΩ or Potentiometer 10 to 100kΩ. Output: Profibus PA. Accuracy ≤±0.05% of span. Response Time: 75ms. Power Supply 7.5-48vDC @ <352mW. 1.5kVAC Galvanic Isolation. Namur NE21, NE44, NE89 and NE107. Approvals: Zone 2, (ATEX, IECEx & INMETRO); Zone 2 – Div 2 (CSA, FM); NEPSI & EAC Certification; SIL 2/3 Full Assessment IEC 61508. Operating Temp: -40 to +85°C.
MORE INFO
Add to basket

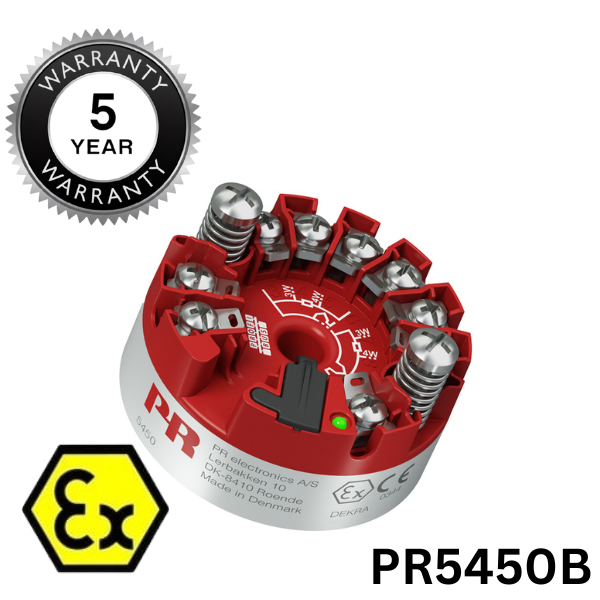

PR 5450B HART Temperature Transmitter

5450B1

£356.00

PR 5450B1 2-Wire Programmable Profibus PA Transmitters. Single Channel Input: -800 to 800mV or -0.1 to +1.7V; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 100kΩ or Potentiometer 10 to 100kΩ. Output: Profibus PA. Accuracy ≤±0.05% of span. Response Time: <400ms. Power Supply 9-30vDC @ <352mW. 2.5kVAC Galvanic Isolation. Namur NE21, NE44, NE89 and NE107. Approvals: ATEX. Operating Temp: -40 to +85°C.
MORE INFO
Add to basket
PR 5450B HART Temperature Transmitter

5450B2

£356.00

PR 5450B2 2-Wire Programmable Profibus PA Transmitters. True Dual Channel Inputs: -800 to 800mV or -0.1 to +1.7V; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 100kΩ or Potentiometer 10 to 100kΩ. Output: Profibus PA. Accuracy ≤±0.05% of span. Response Time: <400ms. Power Supply 9-30vDC @ <352mW. 2.5kVAC Galvanic Isolation. Namur NE21, NE44, NE89 and NE107. Approvals: ATEX. Operating Temp: -40 to +85°C.
MORE INFO
Add to basket

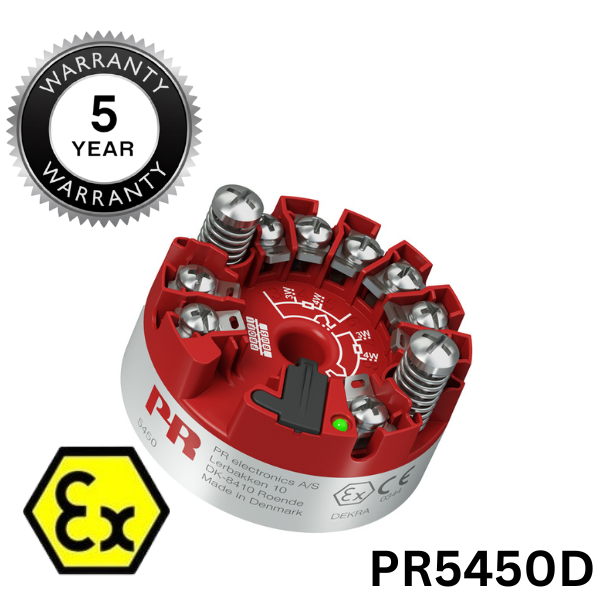

5450D1

£375.00

PR 5450D1 2-Wire Programmable Profibus PA Transmitters. Single Channel Input: -800 to 800mV or -0.1 to +1.7V; RTD (2, 3 or 4 Wire) Range -200 to +850°C; Thermocouples (Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr); Linear Resistance – 0 to 100kΩ or Potentiometer 10 to 100kΩ. Output: Profibus PA. Accuracy ≤±0.05% of span. Response Time: <400ms. Power Supply 9-30vDC @ <352mW. 2.5kVAC Galvanic Isolation. Namur NE21, NE44, NE89 and NE107. Approvals: ATEX, IECEx, FM, CSA & INMETRO; NEPSI & EAC Certification. Operating Temp: -40 to +85°C.
MORE INFO
Add to basket
