Description

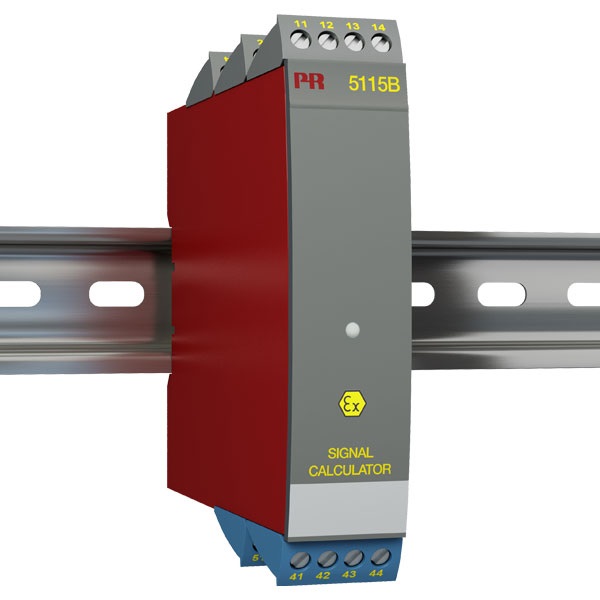

Please Note: The PR5115B Version has been discontinued
Effective 1 October 2025.
ATEX Certificate of the PR 5115B range has expired and will not be renewed. Contact us directly for the best option for your application.
Application
- Redundancy measurement of temperature by means of two sensors, where the secondary sensor takes over the measurement when a sensor error occurs on the primary sensor.
- Duplication of the input signal, e.g. from a temperature sensor or an analogue process signal to two separate analogue outputs.
- Signal calculator with four arithmetical operations: Addition, subtraction, multiplication and division.
- Example: Differential measurement: (Input 1 * K1) – (Input 2 * K2) + K4
- Example: Average measurement: (Input 1 * 0.5) + (Input 2 * 0.5) + K4
- Example: Different functions on the outputs: Output 1 = input 1 – input 2, and Output 2 = input 1 + input 2
Features
- Redundancy measurement with 2 input signals
- Signal calculator with the four arithmetical operations
- Duplication of the input signal
- Input for RTD, Ohm, TC, mV, mA, and V
- Universal AC or DC supply.
Options
Type | Version | Input |
5115 | A: Standard | – : RTD/TC/R/mA/V/mV |
