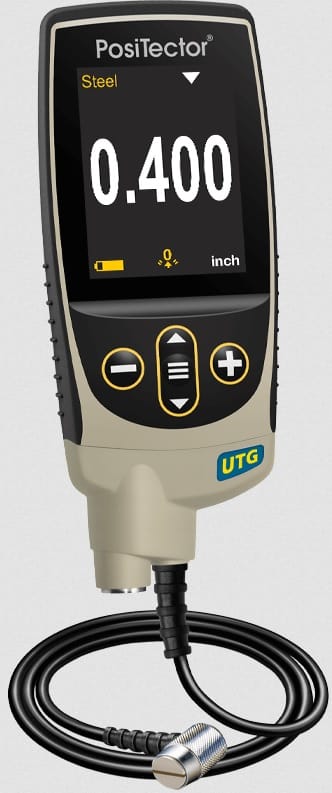

Description

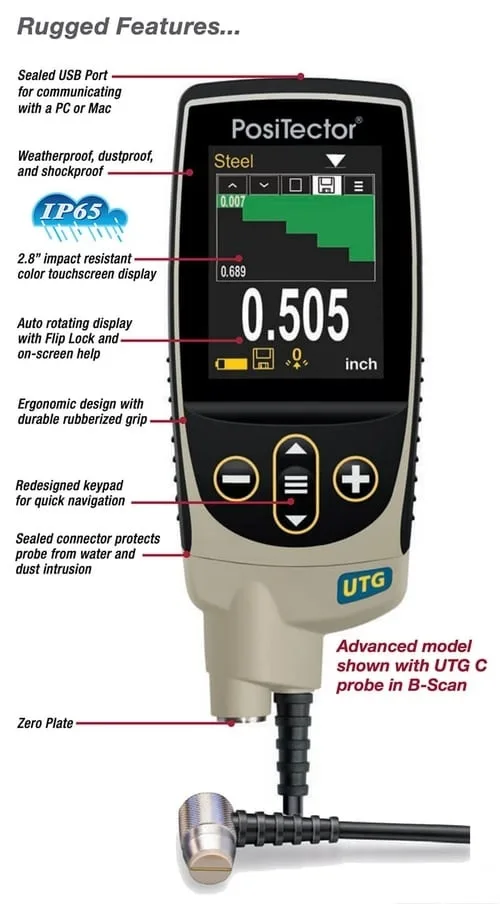

Features

• Large, easy-to-read, graphics LCD with multilingual support
• One-Handed menu navigation
• Pre-programmed velocities – simply select from a list of common materials or enter your own with ease
• Scratch/solvent resistant display – ideal in a noisy and harsh environment
• Shock absorbing protective rubber holster with belt clip
• RESET feature instantly restores factory settings
• Universal display module accepts all PosiTector 6000, 200, UTG, DPM and SPG probes
• Supplied with NIST traceable calibration certificate
• Two year warranty on body and probe.

Standard Model Features

• Storage of 1,000 readings – stored readings can be viewed or downloaded

Advanced Model Features

• Storage of 250,000 readings in up to 1,000 batches and sub-batches
• Live Graphing of measurement data
• Prompted Batch Mode – Pre-defined batches with on-screen text and image prompts
• Touchscreen Keyboard for renaming batches, adding notes, etc
• A-Scan with adjustable gain and screen capture
• B-Scan display a cross sectional profile of the test material
• WiFi Technology to synchronise with Posisoft.net and download software updates.
• Bluetooth 4.0 Technology to PosiTector App or Portable Printed
• Integrate with third-party software

Specifications

Application	Corrosion		Xtreme	Low Frequency	Multi-Echo		Precision

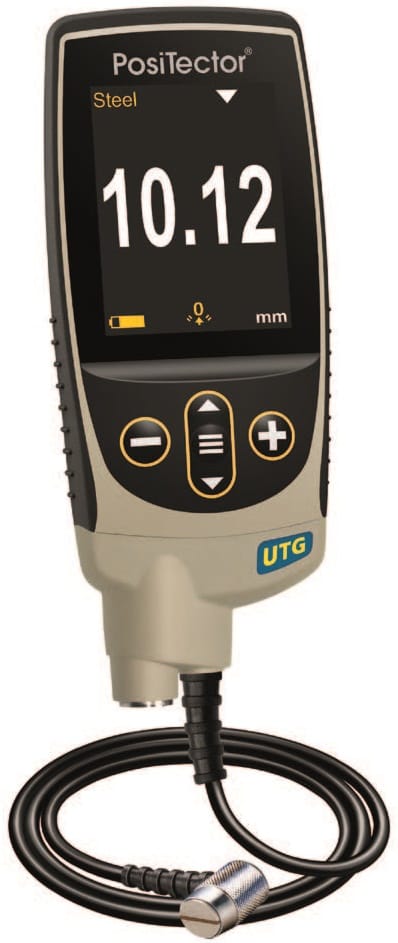

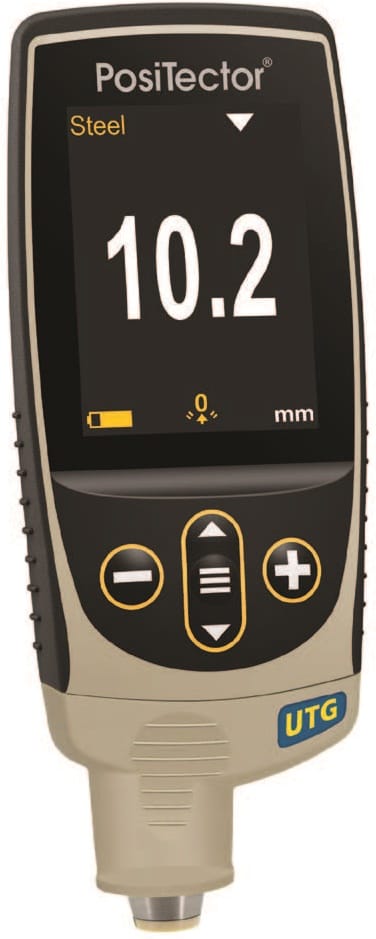

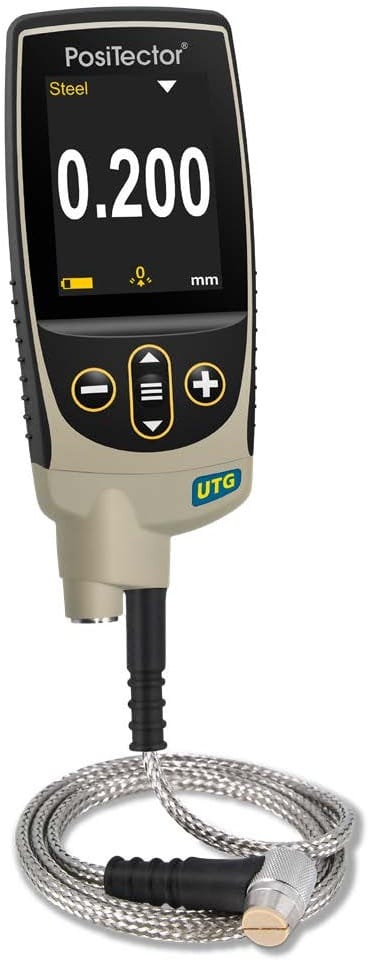

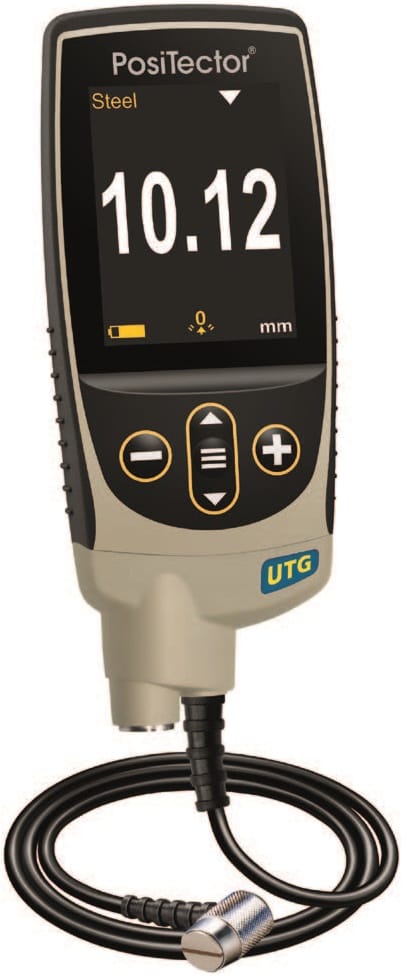

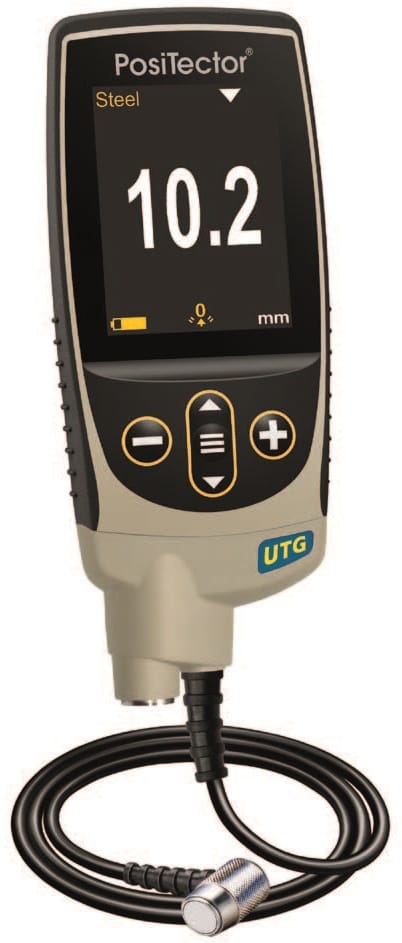

Model	UTG C	UTG CA	UTC CX	UTG CLF	UTG M		UTG P
Probe Type	5MHz Dual Element			2.25MHz Dual Element	5MHz Contact		15MHz Single Element Delay Line
Mode	Single Echo				Single Echo	Multiple Echo	Steel	Plastic
Measurement Range	1 to 125mm			2 to 125mm	2.5 to 125mm	2.5 to 60mm	0.2 to 12mm	0.125 to 4.5mm
Thru-Paint Capability	No				Yes
Resolution	0.01mm				0.01mm		0.002mm
Accuracy	±0.03mm				±0.03mm		±0.01mm

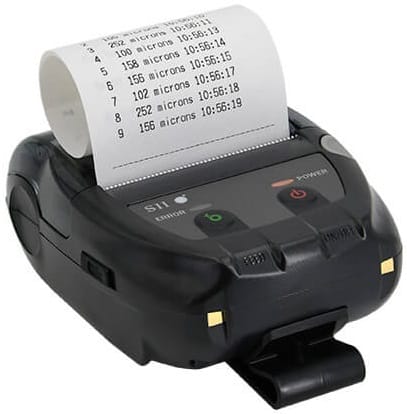

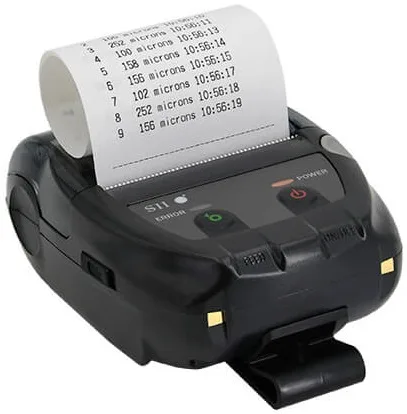

Bluetooth Printer – Advanced models only

• Faster print speed – 6mm/s
• Bluetooth wireless technology
• Rechargeable Lithium Ion battery with universal AC adaptor
• Lightweight and compact
• One year warranty
• Ink-free thermal paper
• 45 x 80 x 110mm)
