Portable Handheld Flow Meter for Open Channel Flow Measurement

Portable Handheld Flow Meter for Open Channel Flow Measurement

Portable Handheld Flow Meter for Open Channel Flow Measurement

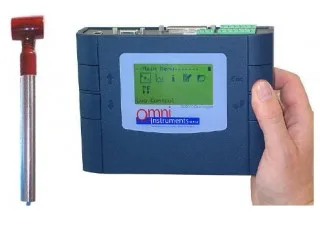

This unit utilises the MiniWater6 Mini probe and the SQ2010 portable data logger to provide a versatile and accurate portable measurement and logging device for the measurement of water flows in open channels, tanks and chambers. The measurement range is 0.02 – 5 m/s and the unit is supplied with a 1.5 metre telescopic probe for general open channel applications. Where flow measurement in deeper channels or vessels is required the probe can be fixed to along pole ( up to 10 metres ).

View Options

Need help finding the right product?

CONTACT US

Description

  • Flow range 0.02 – 5 metres per second
  • Easy to use
  • Numeric and graphic flow rate display
  • 1.8MB data storage
  • Download data to PC and view in tabular and graphic format
  • Export data to MS Excel

Product

Ref

Price

Product Description

MINIWTR6MICRO-SQLOGGER

£2,443.49

MiniWater6 Micro, probe anemometer, water velocity range 0.04 – 5 m/s, accuracy +/- 2% of full scale, 3% of reading, head dim 11 x 15mm, access opening 21 mm, probe length 165mm, with 5 metres of cable. Supplied with Squirrel SQ2010 handheld data logger/display unit contained with battery supply unit in an IP 66 instrument case. (Peli case) Displays real time readings and logs to internal memory. Data can be downloaded to PC and viewed in graph format, and also exported to MS Excel.
MORE INFO
Add to basket

MINIWTR6MINI-SQLOGGER

£2,411.00

MiniWater6 Mini, probe anemometer, water velocity range 0.02 – 5 m/s, accuracy +/- 2% of full scale, 3% of reading, head dim 22 x 28mm, access opening 35 mm, probe length 165mm, with 5 metres of cable. Supplied with Squirrel SQ2010 handheld data logger/display unit contained with battery supply unit in an IP 66 instrument case. (Peli case) Displays real time readings and logs to internal memory. Data can be downloaded to PC and viewed in graph format, and also exported to MS Excel.
MORE INFO
Add to basket
MiniWater 6 Turbine Flow Sensor - MIWA0611

95.0296

£799.93

MiniWater 6 Micro Turbine Flow Sensor. Sensing head 11mm diameter x 15mm, probe length 165mm. Flow velocity range 0.04-5m/s with a 0-1V output. Accuracy ±2% of full scale, ±3.5% of reading. Power supply 9-26vDC Sensor is supplied with 2m cable. Operating range 0 to +70°C. Plastic sensing head with Aluminium blade turbine suitable for surface water flow measurements. Part Ref MIWA0611
MORE INFO
Add to basket
MiniWater 6 Turbine Flow Sensor - MIWA0621

95.0295

£759.89

MiniWater 6 Mini Turbine Flow Sensor. Sensing head 22mm diameter x 28mm, probe length 175mm. Flow velocity range 0.02-5m/s with a 0-1V output. Accuracy ±2% of full scale, ±3.0% of reading. Power supply 9-26vDC Sensor is supplied with 2m cable. Operating range 0 to +70°C. Plastic sensing head with Aluminium blade turbine suitable for surface water flow measurements. Part Ref MIWA0621
MORE INFO
Add to basket

321.01.55.15.05.1.4

£475.60

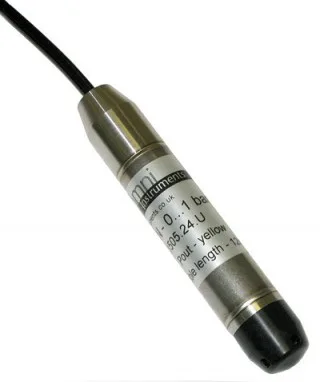

PTM/N submersible depth sensor, range 0 to 1 BarG (0-10mWG). Closed version with standard Viton seals and 12m PUR cable connection. Output – 2-wire, 4-20mA. Accuracy ±0.25%. Compensated temperature range -5 to 50°C
MORE INFO
Add to basket
