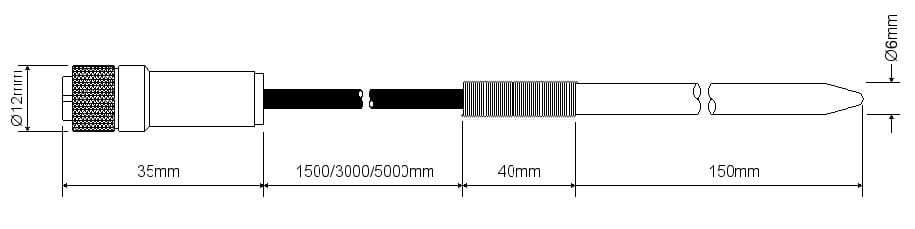

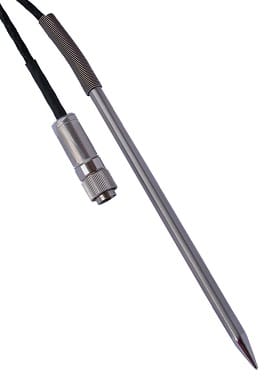

PT100 Oven Temperature Probe for use with the TGP-4104 and TV-4104 data logger. The stainless steel probe is 150mm long and 6mm in diameter with a 1.5m PTFE cable. Temperature range -50 to 250°C with a 20 second response time in water.
£95.00
The PB-6007 is an oven temperature probe available with 1.5m, 3m or 5m PTFE cable. The probe is suitable for monitoring temperature ranges from -50 to +250°C and for a variety of in product temperature applications, with a stab probe for easier insertion into hot food products.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP65 (Splash-proof) | Sensor Type: | PT100 (Class A) |
| Weight: | 75g | Measuring Range: | -50 to 250°C (-58 to +482°F) |

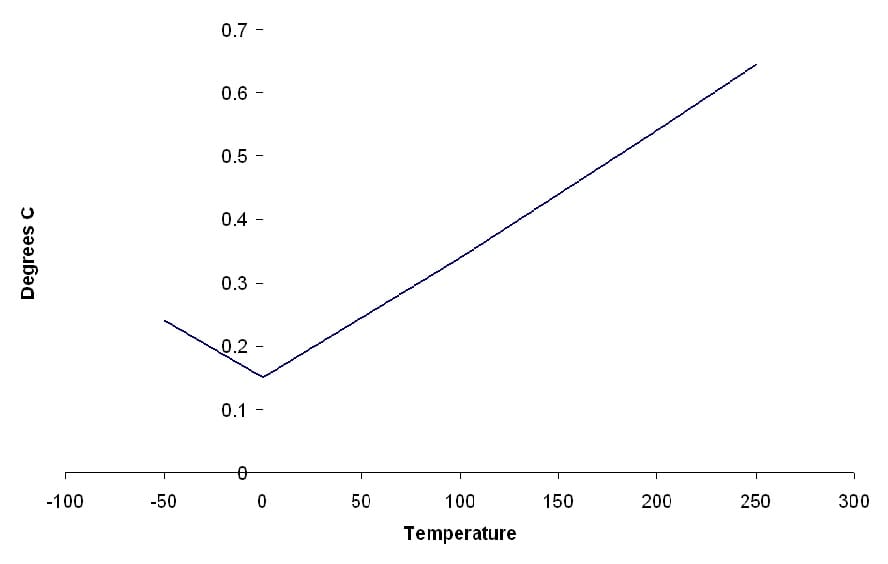

| Response Time Water: | 20 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Moving Air: | Better than 4 Mins (to 90% FSD) |  |
|
| Probe Material: | 316 Stainless steel | ||
| Probe Temperature Rating: | -50 to +250°C (-58 to +482°F) | ||
| Sheath/Cable Join Material: | 316 Stainless steel | ||
| Handle Temperature Rating: | -50 to +250°C (-58 to +482°F) | ||
| Cable Material: | PTFE | ||
| Cable Temperature Rating: | -50 to +250°C (-58 to +482°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||
| Tinytag Plus 2 model number: | TGP-4104 |
| Tinytag View 2 model number: | TV-4104 |
| Tinytag Ultra Radio model numbers: | TR-3101 |
| Tinytag Plus Radio model numbers: | TGRF-4101, TGRF-4102 |
| Tinytag Plus LAN model numbers: | TE-4101, TE-4102 |
PB-6007-3M
£105.00
PB-6007-5M
£115.00
