Description

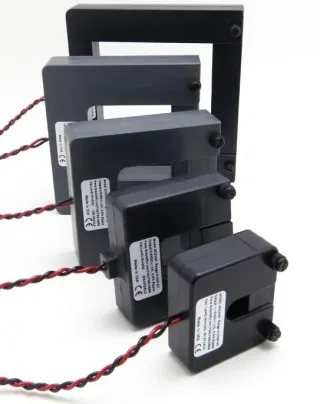

AC current sensors connect directly to any Pace Scientific data logger input channel; no external power required. Also suitable for any other display, logger etc with a 0-5v input range. Split core construction simplifies installation on existing conductor. Large nylon thumb screws, no exposed metal parts; Monitor motors, pumps, or any AC load.

Specifications

• Input Current AC Current, single phase, 50 – 400 Hz, load power factor 0.5 to 1.0 lead or lag.
• Accuracy ±2.0% of reading from 5% to 100% full scale.
• Bandwidth 10-1000Hz (within ±3db)
• Temperature effect ±0.05% (-20 to 85°C)
• Response time 250 milliseconds (input from 10% to 90% of full scale).
• Ripple 0.5%
• Voltage rating 600 Vac. Tested with full wave 10KV impulse for 60 seconds.
• Overload 1.6x full scale (continuous).
• Surge 3x full scale.
• Lead wires 8 ft twisted Black / Red per UL1015.
• Overall size Add 2" to Window size in table below for overall length and height dimension (Add 2.5" for SC1500A). Overall width 1.25" (includes nylon thumbscrews)

AC voltage sensors connect directly to any Pace Scientific data logger and also can be used in conjuction with other data logger / monitoring system.  Ruged DIN rail mounting case and screw terminals for easy installation. SV600 is supplied with external potential transformer. Use the SV300 to monitor and record 24, 120 and 240 Vac circuits; use the SV600 to monitor and record 24, 120, 240 and 480 Vac circuits.

Specifications

• Frequency range SV300: 50 – 400 Hz
• SV600: 50 – 60 Hz
• Voltage overload Full scale rating
• Accuracy (50 – 60 Hz) ±0.25% of F.S. (includes effects of linearity 10% to 100% of F.S.)
• SV300 Only: Accuracy @ 400Hz ±0.50% of F.S. (includes effects of linearity 10% to 100% of F.S.)
• Temperature effect ±1.0% (-20 to 65°C)
• Output ripple Less than 1% full scale
• Response time (99%) 400 milliseconds
• Connections Recessed screw terminals for input and output wiring
• Burden 2.0 VA
• Size 3.7"H x 3.1"W x 1"D
