Description

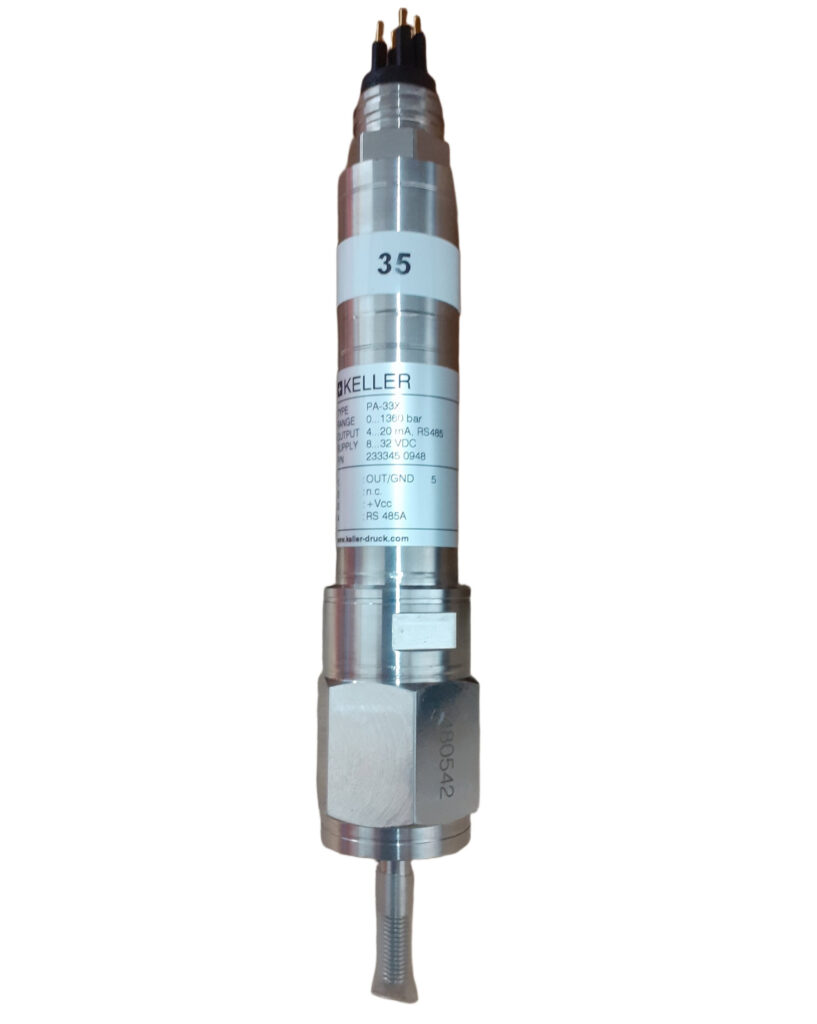

| Specification – PA33X and PD39X | |
| Pressure Ranges PA33X | 0,8…1360 bar (abs./rel.) |
| Pressure Ranges PD39X | to 600 Bar static, and 600 bar DP |
| Output Signal | RS485 (digital) 4…20mA (2-wire) 0…10V (3-wire)RS485 (digital) |
| Accuracy, Error Band (10…40 °C) |
typ. 0,05 %FS (digital) typ. 0,15 %FS (2-wire) typ. 0,1 %FS (3-wire) |
| Optional: Precision * |
typ. 0,01 %FS (digital)(PA33XX) |
| Long Term Stability typ. | Gauges: 1 mbar or 0,05 %FS Absolute: 0,5 mbar or 0,025 %FS (10…40 °C) |
| Resolution | 0,002 %FS |

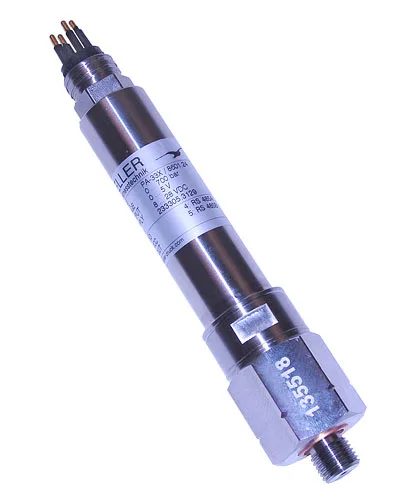

| Connector | Subcon MCBH or BHÂ type subsea connector |
| Pin Outs 0-5v Models | Pin 1 Ground Pin 2 V++ Pin 3 Signal O/P Pin 4 RS485A Pin 5 RS485 |
| Pin Outs 4-20mA Models | Pin 1 O/P/Ground Pin 2 V++ Pin 4 RS485A Pin 5 RS485 |
