Description

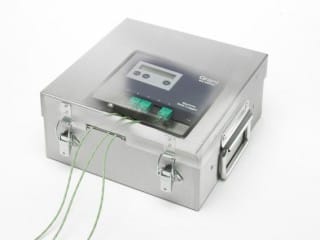

The OMK610-NP kit comprises of an OQ610 data logger, SquirrelView software, thermal barrier (TB610), carry case and a quick start guide. You can then add the most suitable thermocouples for your own requirements.

Benefits of using the OMK610-NP kit:

  • Meets paint manufacturers’ specified cure parameters
  • Maintains a specified level of cure ensuring repeatable quality
  • Comes as a complete logging ready system, all you need is relevant thermocouples.
  • Maximises oven usage and throughput
  • Optimises oven running (energy) costs
  • Archives data and results as part of any quality control system or supplier audit trail
  • Line operators can use it without the need for a PC

Features

  • The Squirrel OQ610 can record at 8Hz from each sensor and store over 260,000 readings in its memory
  • Small, robust thermal barrier can now accept a stainless steel heat sink
  • At the end of the recording run, data is downloaded directly to printer or to PC for analysis and reporting using PaintView software
    • At the touch of a button, the OQ610 can directly print user-configurable, concise reports to simplify record keeping and provide ISO9000 quality records
  • Up to 6 K-Type temperature probes can be connected to the logger. These probes can be clipped on to non-magnetic components or via a magnet
  • Configure the OQ610 logger for all oven applications
  • Clear Multilingual LCD screen indicates cure % at the end of the cycle (English, German, French, Spanish and Italian)
  • USB On The Go – the logger can print out a concise, graphical report of each run directly via USB, without the need for a PC
  • Create paint cure data libraries (by manufacturer and / or paint type)
  • Set optimised cure temperature curves with upper and lower limits
  • Create graphical and statistical data reports via the Report Wizard, incorporating company logos and JPEG photographs



OQ610-S
General purpose
temperature logger
Analogue Input Channels 6
Input Types:   – Temperature, K Thermocouple √
                     – Temperature, T Thermocouple √
Max Number of Readings (per second per channel) 8
Basic Accuracy 0.5°C
Memory Size/Number of Readings Stored 0.25M
USB Communications √
Set-up/Analysis Software SquirrelView or
SquirrelView Plus*
Temperature Probes optional

*SquirrelView PC software is supplied as standard with every new Squirrel. SquirrelView Plus is available at extra cost.

Thermal Barrier Specification

The performance of a thermal barrier is measured in terms of the exposure time at a particular temperature for a given maximum internal temperature. The performance is closely related to the barrier’s insulation thickness. The table below indicates the allowable exposure time (in minutes) of temperatures for the standard (thermal barrier models assuming a maximum internal temperature of 70°C).

Process Temperature ºC 100º 150º 200º 250º 300º 350º
Model  mins  mins mins  mins mins  mins
TB610 140 80 60 50 – –



Thermal Barrier Dimensions

 Model Length (mm) Width (mm)  Height (mm)
TB610
245
245
115

Custom designed thermal barriers are available on request.
