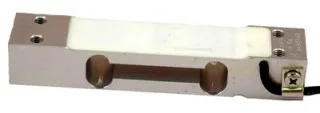

The OBUG series of load cells are single point load cells designed for applications where the point of application of the load or force may vary. Single point load cells are primarily designed for the platform type weighing scales where applications are diverse, ranging from weighing a single diamond to loads of up to 40Kg. Other applications include low range tensile test machines, robotics and web tension measurement. OBUG load cells are available with a range of 0-250 grams up to 0-40Kg, OBUC & OBUH load cells cover ranges up to 750Kg. The load cells provide a 1.5-2mV/V output but can be supplied with suitable inline amplifiers to provide a calibrated 4-20mA output. ATEX versions are available.
The OBUG Series load cells are a single point compression load cell designed or use in weighing scales and a wide selection of low range force meaurements applications. Their dual cantilever beam design makes them insensitive to bending moments and also offers extremely high acuracy and stability.
| OBUG | OBUG | |
| Standard Capacities (Kgf): | 0-0.25, 0-0.5, 0-1, 0-2 | 0-3, 0-5, 0-10, 0-15, 0-20, 0-30, 0-40 |
| Sensitivity: | 1.5mv/V Nominal | 2mV/V ±10%RO |
| Zero Balance/Offset: | <±1.0% Rated Output | |
| Non-linearity: | <±0.03% Rated Output | |
| Hysteresis: | <±0.02% Rated Output | |
| Repeatibility: | <±0.02% Rated Output | |
| Input Resistance: | 400 Ohms Nominal | |
| Output Resistance: | 350 Ohms Nominal | |
| Insulation Resistance: | >2000 @ 50vDC | |
| Excitation Voltage: | 10vDC Recommended (2-15vDC Acceptable) | |
| Operating Temperature: | -20 to +70°C | |
| Compensated Temperature: | -10 to +40°C | |
| Storage Temperature: | -20 to +70°C | |
| Safe Overload: | 150% of Rated Capacity | |
| Ultimate Overload: | 300% of Rated Capacity | |
| IP Rating: | IP65 | IP67 |
| Cable Length: | 0.5m | 0.4m |
| Cable Type: | 4-Core Screened, PVC Sheath | |
| Construction: | Aluminium Alloy | |

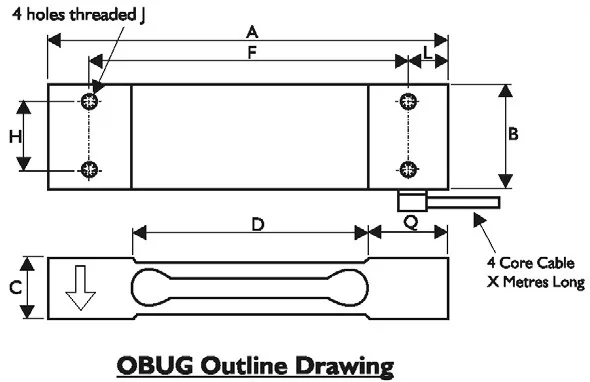

| Model | Capaciity (Kg) | A | B | C | D | F | G | H | L | Q | V | X | J | Weight |
| OBUG | 0-0.25, 0-0.5, 0-1, 0-2 | 70 | 15 | 22 | 46 | 58 | – | 7 | 6 | 12 | – | 0.5 | M3 x 0.5 (22mm deep) | 70g |
| OBUG | 0-3, 0-5, 0-10, 0-15, 0-20, 0-30 | 130 | 25.4 | 22 | 80 | 106 | – | 15 | 12 | 25 | – | 0.4 | M6 x 1.0 (22mm deep) | 200g |
| OBUG | 0-40 | 130 | 30 | 22 | 80 | 106 | – | 15 | 12 | 25 | – | 0.4 | M6 x 1.0 (22mm deep) | 240g |
