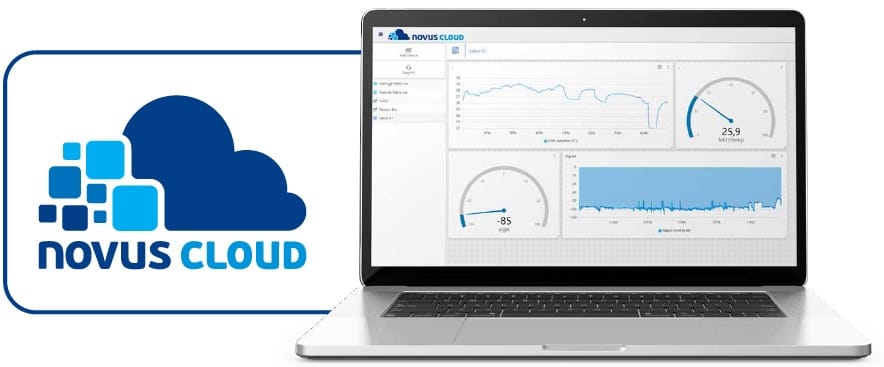

NOVUS Cloud is a platform focused on Internet of Things solution that expands the horizons of data viewing. Combined with NOVUS devices, this platform receives, stores, analyses and displays on dashboards measurements of room temperature, humidity, weather stations or any other variable of interest. Data access via the Internet is particulary necessary for several market segments, such as logistics, health, building, energy, sanitation, and agribusiness areas.

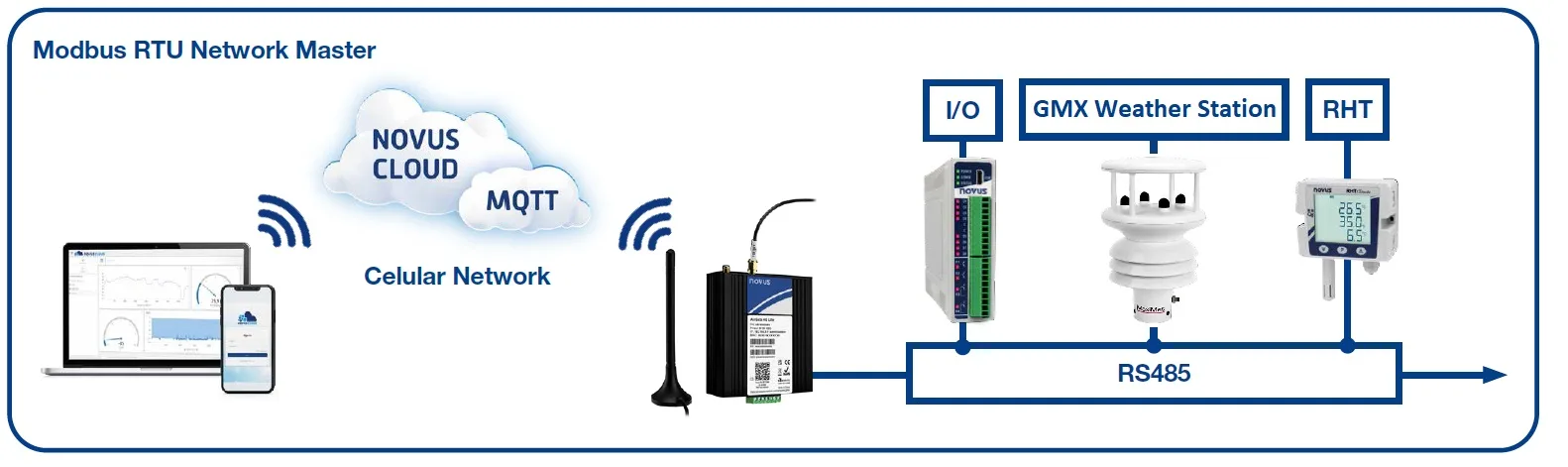

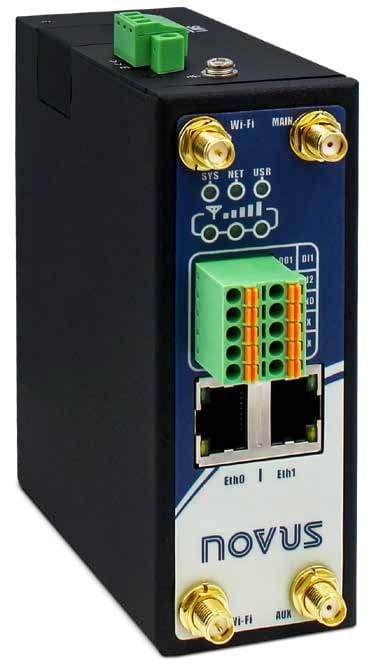

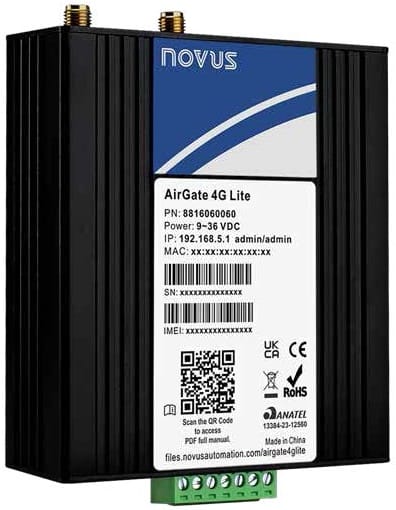

The AirGate 4G and AirGate 4G Lite gateways offer secure remote access to distributed industrial applications via 4G, utilising encryption, firewalls, and dual SIM cards for redundancy. Both devices support RS485/RS232 interfaces, multiple communication protocols, remote web management, and SMS/email alerts. The AirGate 4G distinguishes itself with Wi-Fi and dual Ethernet ports, providing enhanced connectivity and simplifying network architectures by eliminating the need for PLCs or SCADA systems. Conversely, the cost-effective AirGate 4G Lite, with a single Ethernet port and no Wi-Fi, excels in Modbus RTU networks for efficient data acquisition.

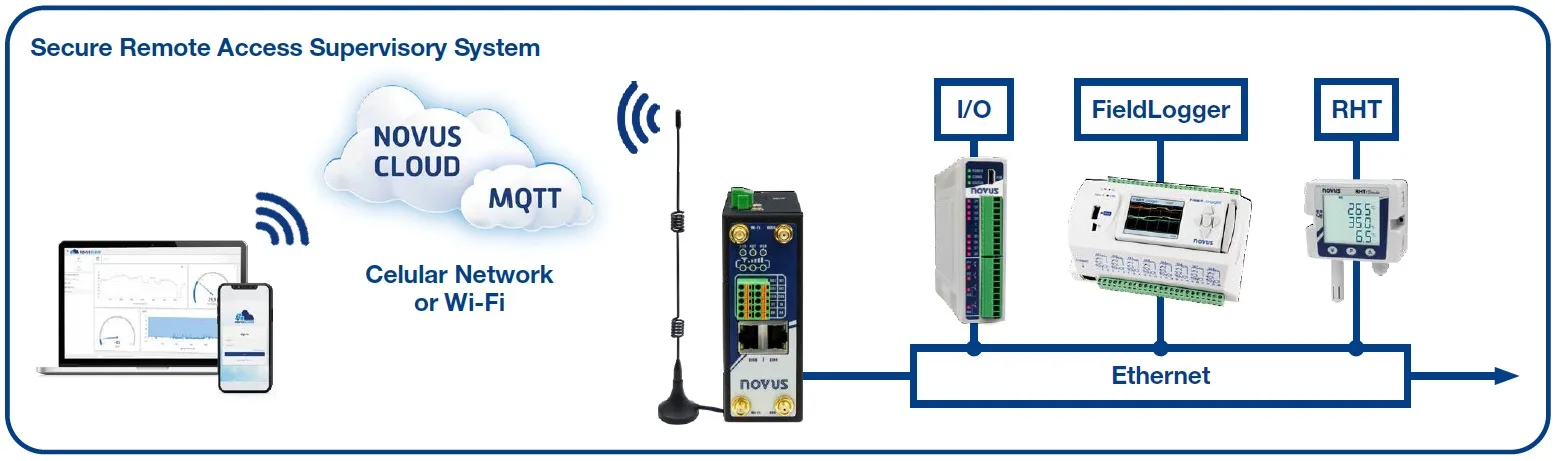

Designed for IoT platforms, these gateways ensure secure data communication through MQTT, enabling seamless integration with the Novus Cloud service. Whether selecting the feature-rich AirGate 4G or the streamlined AirGate 4G Lite, users can achieve secure and efficient remote access tailored to their specific industrial application requirements, with both models featuring DIN rail mounting and external magnetic antennas for simplified installation.
| Feature | AirGate 4G | AirGate 4G Lite |
|---|---|---|
| Cellular Interface | 4G LTE: LTE FDD, LTE TDD 3G UMTS: DC-HSDPA, HSUPA, WCDMA 2G GSM: EDGE, GPRS 2 x SMA female antenna connector 2 x SIM (3.0 V and 1.8 V) |
|
| Wi-Fi Interface | Standards: 802.11 b/g/n, 300 Mbps 2 x RP-SMA male antenna connector Support Wi-Fi Access Point and Client modes Security: WEP, WPA and WPA2 encryption Encryption: TKIP and CCMP |
– |
| Ethernet Interface | Standards: IEEE 802.3, IEEE 802.3u 2 x ports 10/100 Mbps, RJ45 connector 1 x WAN interface (configurable on Web GUI interface) 1.5KV magnetic isolation protection |
Standards: IEEE 802.3, IEEE 802.3u 1 x 10/100 Mbps port, RJ45 connector 1.5KV magnetic isolation protection |
| Serial Interface | 1 x RS232 (3 pin): TX, RX, GND 1 x RS485 (2 pin): D1, D0 Baud Rate: 300 bps to 115.200 bps 15 KV ESD protection |
1 x RS232 (3 pin): TX, RX, GND 1 x RS485 (2 pin): A, B Baud Rate: 300 bps to 115.200 bps 15 KV ESD protection |
| Digital Input and Digital Output | 2 x Digital Inputs 2 x Digital Outputs Isolation: 3 KVDC or 2 KVrms Absolute maximum VDC: 36 VCC Absolute maximum ADC: 100 mA |
– |
| LEDs | SYS LED: Operation NET LED: Mobile network USR LED: SIM Card 1/2 3 RSSI LEDs: Strength of the cellular signal |
|
| Software | Network protocols: DHCP, ICMP, PPPOE, HTTP, HTTPS, DNS, VRRP, NTP, MQTT, FTP, TCP, Modbus RTU master, Modbus TCP client VPN: IPSec, GRE, OpenVPN, DMVPN Policy: RIPv1/RIPv2/OSPF/BGP (optional) Firewall & Filter: Port forwarding, DMZ, anti-DoS, ACL Serial Port: TCP, UDP Management: Web Interface |
|
| Alerts | SMS and e-mail | |
| Power Supply | Connector: 3-pin 3.5 mm female socket with lock Input voltage range: 9 to 48vDC |
Input voltage range: 9 to 48vDC |
| Power Consumption | Idle: 100mA @ 12 V Data Link: 400mA (peak) @ 12 V |
Inactive: 50mA to 12 V Data connection: 200mA (peak) @ 12 V |
| Dimension | 106 mm x 106 mm x 40 mm (excluding antenna) | 82.4 mm x 93.3 mm x 28.8 mm (excluding antenna) |
| Mounting | DIN rail mounting | |
| Environmental | Operation temperature: -40 to 60°C (-40 to 140°F) Storage temperature: -40 a 85°C (-40 to 185°F) Operation humidity: 5 to 95%RH non-condensing |
Operation temperature: -40 to 75°C (-40 to 167°F) Operation humidity: 5 to 95%RH non-condensing |
| Housing Metal | 300g | 200g |
| Protection | IP30 | |
| Certification | CE, Anatel (07661-19-12560), RoHS | CE, Anatel (13384-23-12560), RoHS, EN50155 Vibration |
8816060040
£377.95

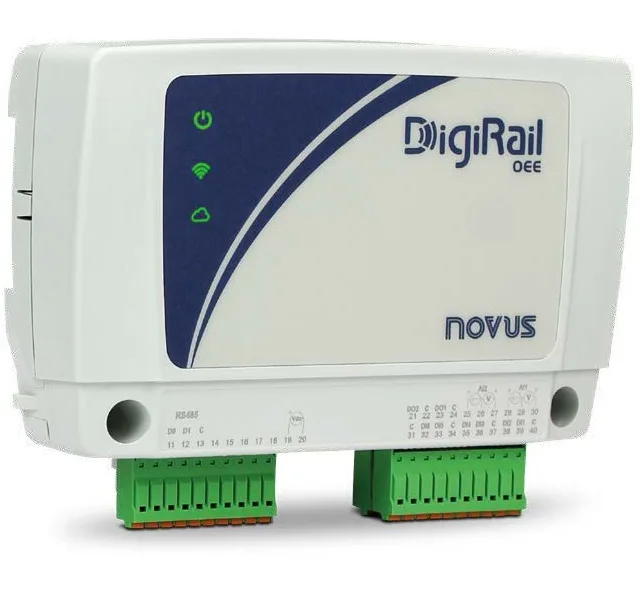

DigiRail OEE IO Module
