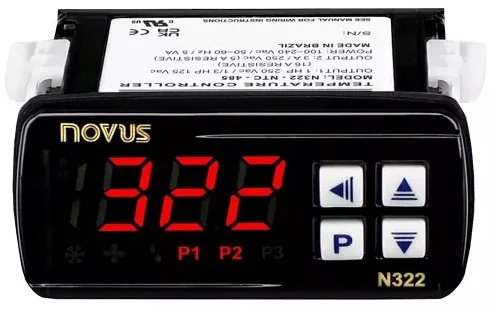

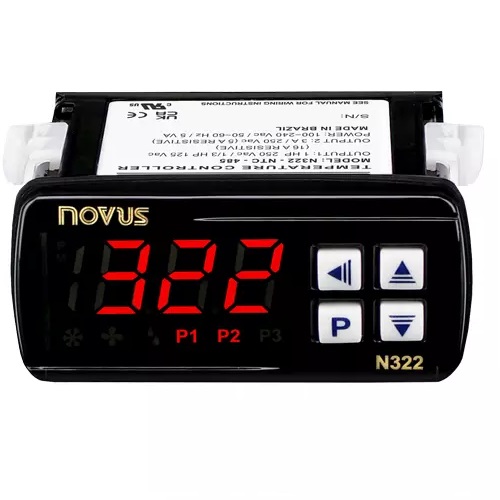

N322 Electronic Thermostat

The N322 Electronic Thermostat is designed for cooling and heating control using a single control SPDT Relay (Max 250vAC @ 16A) to activate or deactivate a compressor or electronic heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for control or alarm. The N322 can accept PT100 (2- or 3-Wire), NTC Thermistor or Thermocouple (Type J, K or T). Mains or 24vDC Power Supply Options.

Need help finding the right product?

Downloads

Description

Description

The N322 Electronic Thermostats are designed for cooling and heating control using a SPDT Relay (Max 250vAC @ 16A) to activate or deactivate a compressor or electronic heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for control or alarm. The N322 can accept PT100 (2- or 3-Wire), NTC Thermistor or Thermocouple (Type J, K or T) temperature sensors.

Specifications

IP65 enclosure frontal protection when installed. Behind panel, IP42.
Outputs: 1 x SPDT Relay for 250vAC @ 16A, 1 x SPST Relay for 250vAC @ 3A.
Working temperature: 0 to 40°C @ 20 to 85%RH.
Power supply: 100-240vAC
Dimensions: 75 x 33 x 75mm (Width x Height x Depth)
Panel Cut Out: 70 x 29mm
Weight: 100g

Sensor	NTC Thermistor	PT100	Thermocouple
Type	10 kΩ @ 25 °C	2 or 3-Wire	J	K	T
Measurement Range	-50 to +120°C	-50 to +300°C	0 to 600°C	-50 to +999°C	-50 to +400°C
Accuracy	0.6°C (-19.9 to 99.9°C), or 1°C	0.2 % F.S. ± 2 °C @ 25 °C

Product

Ref

Price

Product Description

8032201022

£44.72

N322 Electronic Thermostat for Cooling/Heating Control with Single SPDT Relay Output, Max 250vAC @ 16A. Direct Switching of compressor or electrical heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for additional control or alarm. Accepts PT100 Input (NBR 13773/97 Standard). Measurement Range: -50 to +300°C (-58 to 572F), Accuracy 0.2%FS, ±2°C @ 25°C. Power Supply: 100-240vAC @ 5 Watts. Dimensions: 75 x 33 x 75mm. Panel cut-out: 70 x 29mm. Operation Temperature: 0 to 40°C. Polycarbonate Housing: IP42 | Front: IP65. Certifications: CE, UKCA, UL.

8032201024

£45.98

N322 Electronic Thermostat for Cooling/Heating Control with Single SPDT Relay Output, Max 250vAC @ 16A. Direct Switching of compressor or electrical heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for additional control or alarm. Accepts PT100 Input (NBR 13773/97 Standard). Measurement Range: -50 to +300°C (-58 to 572F), Accuracy 0.2%FS, ±2°C @ 25°C. Power Supply: 24vDC @ 5 Watts. Dimensions: 75 x 33 x 75mm. Panel cut-out: 70 x 29mm. Operation Temperature: 0 to 40°C. Polycarbonate Housing: IP42 | Front: IP65. Certifications: CE, UKCA, UL.

8032201322

£51.02

N322 Electronic Thermostat for Cooling/Heating Control with Single SPDT Relay Output, Max 250vAC @ 16A. Direct Switching of compressor or electrical heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for additional control or alarm. Accepts PT100 Input (NBR 13773/97 Standard). Measurement Range: -50 to +300°C (-58 to 572F), Accuracy 0.2%FS, ±2°C @ 25°C. RS485 Modbus RTU Communications. Power Supply: 100-240vAC @ 5 Watts. Dimensions: 75 x 33 x 75mm. Panel cut-out: 70 x 29mm. Operation Temperature: 0 to 40°C. Polycarbonate Housing: IP42 | Front: IP65. Certifications: CE, UKCA, UL.

8032201324

£51.65

N322 Electronic Thermostat for Cooling/Heating Control with Single SPDT Relay Output, Max 250vAC @ 16A. Direct Switching of compressor or electrical heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for additional control or alarm. Accepts PT100 Input (NBR 13773/97 Standard). Measurement Range: -50 to +300°C (-58 to 572F), Accuracy 0.2%FS, ±2°C @ 25°C. RS485 Modbus RTU Communications. Power Supply: 24vDC @ 5 Watts. Dimensions: 75 x 33 x 75mm. Panel cut-out: 70 x 29mm. Operation Temperature: 0 to 40°C. Polycarbonate Housing: IP42 | Front: IP65. Certifications: CE, UKCA, UL.

8032203022

£40.31

N322 Electronic Thermostat for Cooling/Heating Control with Single SPDT Relay Output, Max 250vAC @ 16A. Direct Switching of compressor or electrical heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for additional control or alarm. Accepts NTC Thermistor Input. Measurement Range: -50 to +120°C (-58 to 248F), Accuracy 0.6°C between -19.9 to 99.9°C, 1°C elsewhere. Power Supply: 100-240vAC @ 5 Watts. Dimensions: 75 x 33 x 75mm. Panel cut-out: 70 x 29mm. Operation Temperature: 0 to 40°C. Polycarbonate Housing: IP42 | Front: IP65. Certifications: CE, UKCA, UL.

8032203024

£41.57

N322 Electronic Thermostat for Cooling/Heating Control with Single SPDT Relay Output, Max 250vAC @ 16A. Direct Switching of compressor or electrical heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for additional control or alarm. Accepts NTC Thermistor Input. Measurement Range: -50 to +120°C (-58 to 248F), Accuracy 0.6°C between -19.9 to 99.9°C, 1°C elsewhere. Power Supply: 24vDC @ 5 Watts. Dimensions: 75 x 33 x 75mm. Panel cut-out: 70 x 29mm. Operation Temperature: 0 to 40°C. Polycarbonate Housing: IP42 | Front: IP65. Certifications: CE, UKCA, UL.
