Description

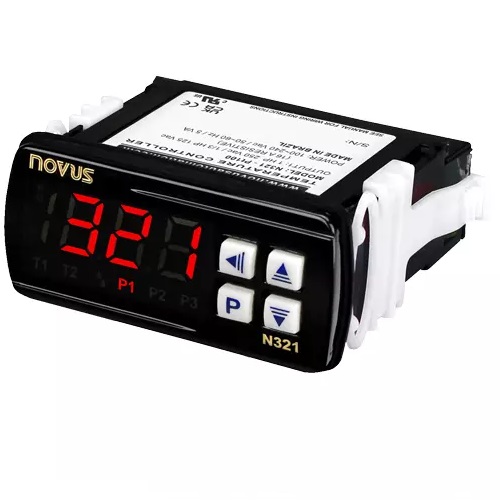

The N321 Electronic Thermostats include a single control relays and are designed to measure, indicate and control temperature in many different systems by controlling a single relay that allows a compressor, or electronic heater, to bring the temperature back within the set point temperature limits (SP1, setpoint 1) set on the display. The N321 accepts 2 or 3 Wire PT100, Type J, K or T Thermocouples or NTC Thermistor temperature sensors.
Users can program the control action according to the application, direct action (refrigeration) or reverse action (heating). A single SPDT Relay (Max 250 @ 16A) allows for power a connected compressor, or electric heater, with ON/OFF control.
Specifications
- IP65 enclosure frontal protection when installed. Behind panel, IP42.
- Output: 1 SPDT Relay for 250vAC @ 16A
- Working temperature: 0 to 40°C @ 20 to 85%RH.
- Power supply: 100-240vAC
- Dimensions: 75 x 33 x 75mm (Width x Height x Depth)
- Panel Cut Out: 70 x 29mm
- Weight: 100g
| Sensor | NTC Thermistor | PT100 | Thermocouple | ||
| Type | 10 kΩ @ 25 °C | 2 or 3-Wire | J | K | T |
| Measurement Range | -50 to +120°C | -50 to +300°C | 0 to 600°C | -50 to +999°C | -50 to +400°C |
| Accuracy | 0.6°C (-19.9 to 99.9°C), or 1°C | 0.2 % F.S. ± 2 °C @ 25 °C | |||
