MX16 Gas Control Panel

Description

Features

  • Single channel gas controller
  • Supplied with factory configured OLCT10N gas detectors with 5m cable.
  • OLCT10N detectors suitable for O2, CO, CO2, CH4 (0-4.4%Vol or 0-5%Vol) or H2 gases
  • Low Cost and Easy to Install
  • Integrated Relays
  • RS485 Output Signal Option.
  • Easy to read large graphic and multi-language LCD back-lit display
  • Soft-touch Keys for Embedded Menus

Applications

  • Lack of Oxygen in MRI Rooms
  • Excess CO2 in Breweries or Cellars
  • Gas Leaks in Small Boiler Rooms
  • Gas Releases in Battery Charging Areas
  • Waste Water Treatment Plants
  • Petrochemical
  • Laboratories

Specifications

General Specifications

Dimensions: 265 x 266 x 96mm
Ingress protection IP55
Cable entries:



 3 M16 cable glands, 4 to 8 mm² (8 to 11 AWG) outer diameter cable
2 M20 cable glands, 6 to 12 mm² (7 to 9 AWG) outer diameter cable
Display:



 LCD back-lit display + smart keys
Display in grayscale in case of fault
Bar graph with alarm threshold
Visual indicators: 6 LEDs, 5 LEDs for Detector Status Line, 1 LED fault indicator and 1 LED Power Condition
Buttons: 5 smart keys, 1 audible alarm accept/reset button
Operating Environment: Temp: -20°C to +50°C, Humidity 5 – 95%RH
Power Supply: 100-240vAC 50-60 Hz (35W)
Consumption: 250 mA max (without captor)
Digital lines: 1 for OLCT10N Gas Detector
RS-485 communication, proprietary protocol, 9600 Baud
2 twisted shielded-pair cable
Max current output per line: 0.42 to 1A with internal AC power
Per channel: 2 alarm levels (AL1, AL2) + Fault
Accessible and modifiable alarm threshold Al1 and Al2, manual acknowledgement
On-board relays:



 2 alarm relays
1 fault relay (non-configurable)
Dry Contact Relay, RCT, 250vAC, 5A
Digital outputs: RS-485 Modbus RTU Comms

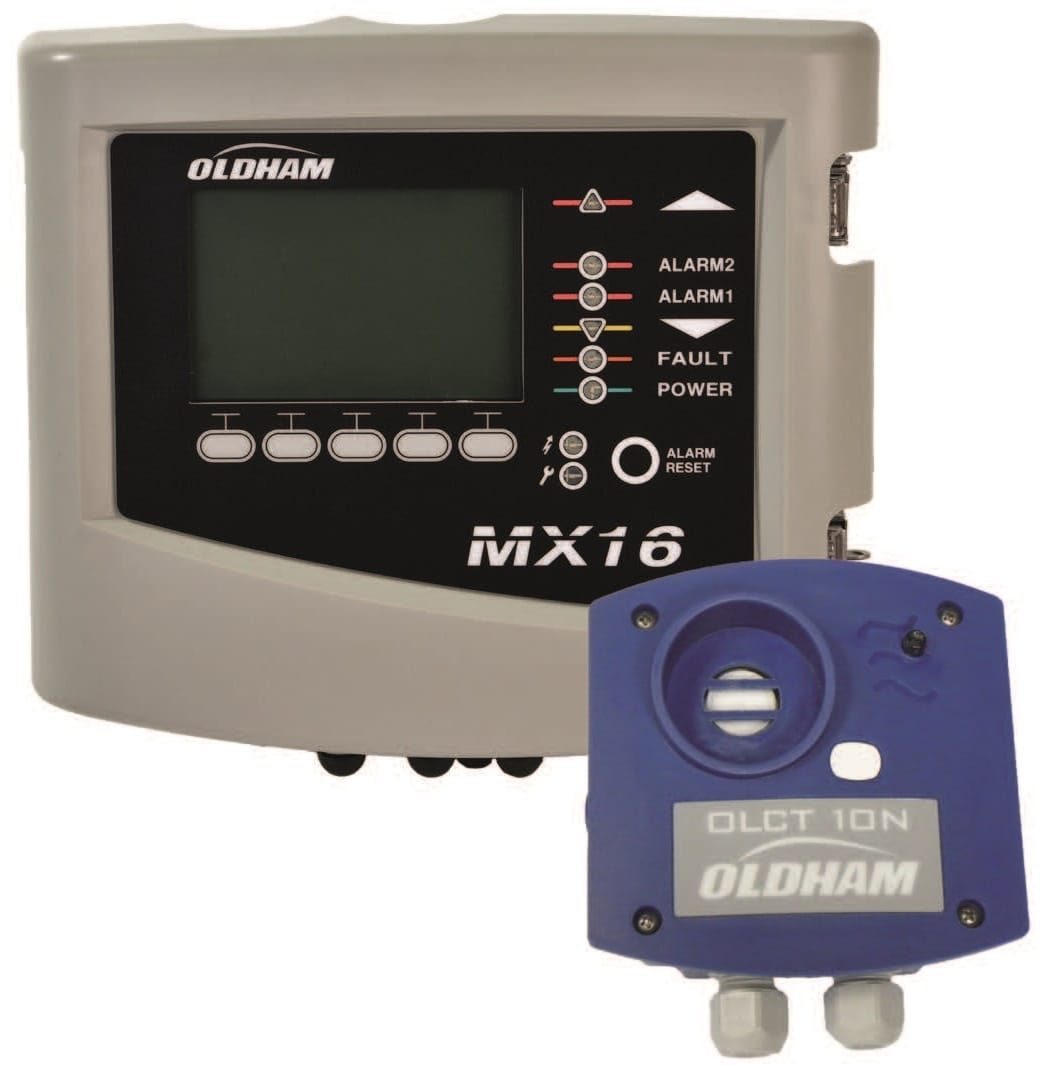

The Easy Duo option for the MX 16 controller  includes a OLCT 10N detector with a 10 metre cable included (specific RS485 for digital communication). Factory preconfigured, it doesn’t require configuration software.
