MiniAir20EX Portable Vane Anemometer

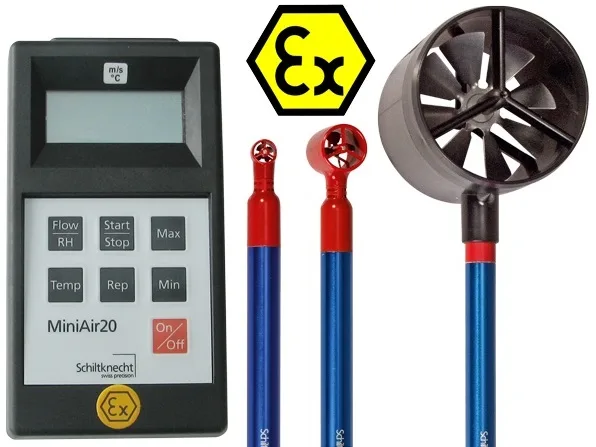

MiniAir20 Eex Portable Vane Anemometer with Display for Hazardous Areas

The MiniAir20 Eex universal anemometer is suitable for measuring the velocity of gaseous media plus air & surface temperature in a hazardous areas. The display provides an instantaneous value measurement with freely selectable average value measuring intervals, from 2 seconds up to 2 hours.

Hazardous Area Approved

View Options

Need help finding the right product?

CONTACT US

Description

Multi-purpose instrument with various probes for standard and special applications with automatic probe recognition



In addition to the flow probes another set of probes for the temperature may be used with the MiniAir 20. Probes are available for air and surface temperature monitoring.

In anemometry, the accuracy achieved by a vane probe is acknowledged to be unmatched. The vane rotation is closely linear to flow velocity and is unaffected by pressure, temperature, density and humidity.

Product

Ref

Price

Product Description

MiniAir20 EX ATEX Approved Display Unit

96.0080

£2,416.01

MiniAir 20Ex Portable Handheld Display for Hazardous Area Use. MiniAir20 Eexia 4 digit LCD display unit for instantaneous display of air flow measurements via external probe anemometer, available separately. Dimensions 80 x 145 x 39mm, operating temperature 0-50°C. Part Ref MINAEX
MORE INFO
Add to basket
MiniAir 20Ex Micro Vane Anemometer. Range 20m/s- MIEX202112

95.0384

£1,306.21

MiniAir20 EEX Micro Vane Anemometer. Plastic measuring head, designed as a snap-on head with aluminium vane and shaft. Suitable for media temperatures up to 140°C. Range 0-20m/s with a ±1.0% FS accuracy. Probe head dimensions 11mm diameter x 15mm with a probe length of 165mm and 1.8m cable with connector for MiniAir 20EX display unit. Eex Class II: Chemical Industry. Part Ref MIEX202112
MORE INFO
Add to basket
MiniAir20 Ex Micro Probe Anemometer. Range 40ms - MIEX202114

95.0385

£1,268.07

MiniAir20 EEX Micro Vane Anemometer. Plastic measuring head, designed as a snap-on head with aluminium vane and shaft. Suitable for media temperatures up to 140°C. Range 0-40m/s with a ±1.0% FS accuracy. Probe head dimensions 11mm diameter x 15mm with a probe length of 165mm and 1.8m cable with connector for MiniAir 20EX display unit. Eex Class II: Chemical Industry. Part Ref MIEX202114
MORE INFO
Add to basket
MiniAir 20Ex Mini Vane Anemometer. Range 20m/s - MIEX202122

95.0386

£1,120.29

MiniAir20 EEX Mini Vane Anemometer. Plastic measuring head, designed as a snap-on head with aluminium vane and shaft. Suitable for media temperatures up to 140°C. Range 0-20m/s with a ±1.0% FS accuracy. Probe head dimensions 22mm diameter x 28mm with a probe length of 175mm and 1.8m cable with connector for MiniAir 20EX display unit. Eex Class II: Chemical Industry. Part Ref MIEX202122
MORE INFO
Add to basket
MiniAir 20Ex Mini Vane Anemometer. Range 40m/s - MIEX202124

95.0387

£1,178.45

MiniAir20 EEX Mini Vane Anemometer. Plastic measuring head, designed as a snap-on head with aluminium vane and shaft. Suitable for media temperatures up to 140°C. Range 0-40m/s with a ±1.0% FS accuracy. Probe head dimensions 22mm diameter x 28mm with a probe length of 175mm and 1.8m cable with connector for MiniAir 20EX display unit. Eex Class II: Chemical Industry. Part Ref MIEX202124
MORE INFO
Add to basket
