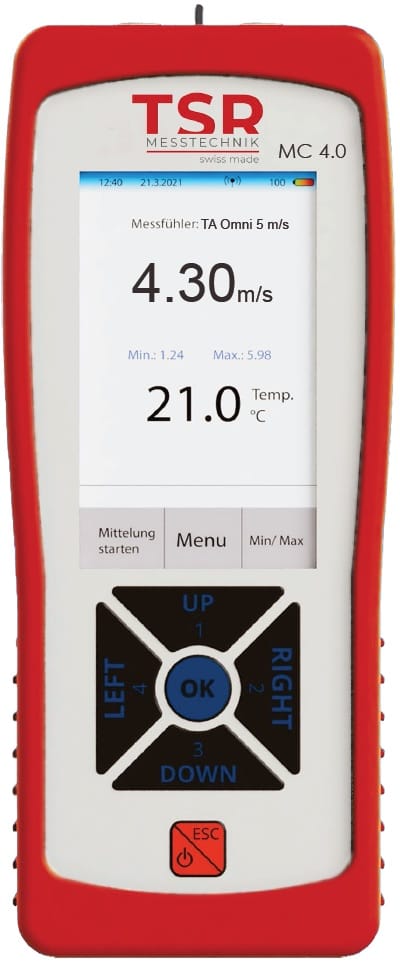

The MC 4.0 is suitable for the measurement of very low air flows, as well as air temperature and humidity readings. The measurement with a thermoelectric anemometer with uni-directional or omni-directional probe with flow ranges as low as 1 or 5m/s. The MC 4.0 includes an internal logger for up to 1 million readings and port for connecting a separate temperature and humidity probe. As a further bonus, extramodules are available to convert the MC 4.0 for vane anemometers, or differential pressure pitot tubes.
The MC 4.0 ThermoAir is available for measuring uni-directional and omni-directional air flows down to as low as 0.015m/s up to 5m/s. Each M 4.0 comes with an internal logger suitable for up to 1 million readings and bluetooth connectivity, plus options to include a touchscreen interface or a larger 4,000mAh battery.
| Display: | 3.2″ TFT Display |
| Unit of Measure:
|
Flow: m/s, km/h, ft/s. mph Volume: Flow: m³h, l/min, m³/s, cfm Humidity: %RH Temperature: °C, F, °K Pressure: Pa, mBar, mm H20, PSI, VOC, CO2 and PM1: ppm |
| Logger: | Internal 4GB memory, capacity 1 million readings |
| Power Supply: | Lithium Polymer Battery |
| Battery Life: | Approx 15 Hours |
| Case Dimensions: | 168 x 68 x 38mm |
| IP Rating: | IP67 |
| Weight: | Approx 300g |
| Operating Temp: | 0 to 60°C |
| Humidity: | 0-99%RH |
| Protective Case: | Removable Red Rubber Case. Also available in Blue, Orange or Green. |

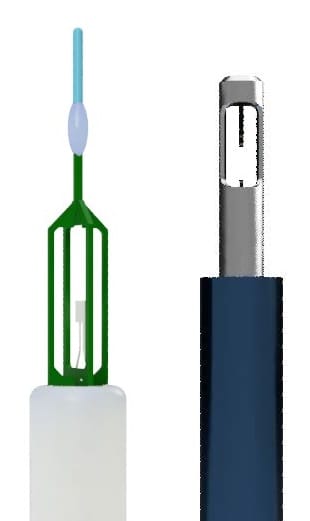

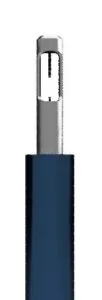

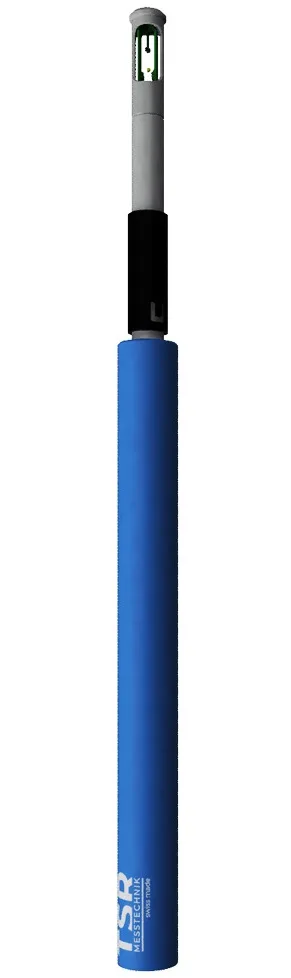

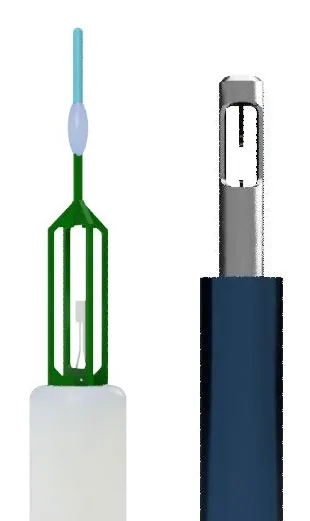

| Directional | Omni-Directional | |
 |
 |
|
| Flow Measuring Range: |
0.015 to 1 m/s or 0.015 to 5m/s |
|
| Head Size: | 8mm | 8mm |
| Shaft Diameter: | 15mm | 15mm |
| Probe Length: | 300mm | 300mm |
| Angle of Flow: | ±30° | ±180° |
| Cable Length: | 1.5m (more on request) | |
Omni-Directional Probes can be protected by a protective cage.
400.0402
£1,265.21
400.0403
£1,457.81
400.0410
£1,365.32
400.0411
£1,261.40
400.0412
£1,261.40
