Description

The LPMS-U3 Motion Sensor is a miniature inertial measurement unit (IMU) and attitude and heading reference system (AHRS) housed in a small ABS plastic housing. The unit performs accurate, high speed orientation and displacement measurements with three different MEMS sensors. The LPMS-U3 is equipment with a powerful central processing unit that will fuse raw data from a gyroscope, accelerometer and magnetometer to calculate results in real-time with low drift. All sensor parameters and data transmission options can be controlled by our LPMSControl2 software. For direct interfacing to Windows / Linux PC or Open Source drivers with support for OpenZen, C, C++, Python, C#, Unity and ROS.

FeaturesLPMS-CU3 Dimensional Drawing

  • MEMS Miniature inertial measurement unit (IMU)
  • Integration of 3-axis gyroscope, accelerometer, magnetometer, temperature and barometric pressure sensor in one unit
  • Real-time, on-device calculation of sensor orientation, linear acceleration and altitude
  • Data output rates of up to 500Hz
  • Barometric pressure sensor available on request
  • Variety of wired interfaces: CANBus, RS232, TTL and USB 2.0
  • Control Applications and SDK for Windows, Linux
  • Robust ABS Plastic Housing

Applications

  • Manipulator Balance Control
  • Internet of Things (IoT) devices
  • Racing Car Status Monitoring
  • Driving Navigation
  • Autonomous Mobile Robot Navigation
  • Robot Arm Control



Specifications

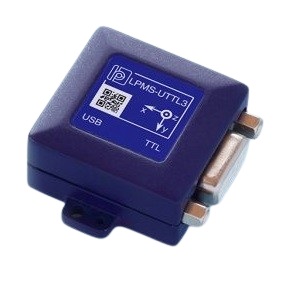

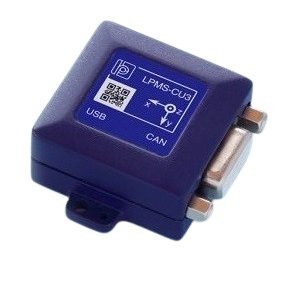

Model LPMS-CU3 LPMS-URS3 LPMS-UTTL3
Wired Interface CANBus and USB 2.0 RS232 and USB 2.0 TTL and USB 2.0
Communications Protocol LP-CAN/CANOpen and LPBUS LP-BUS/ASCII
Orientation Range Roll: ±180°; Pitch ±90°; Yaw: ±180°
Orientation Resolution 0.01°
Accelerometer 3-Axis, ±2 / ±4 / ±8 / ±16g, 16 Bits
Gyroscope 3 axes, ±125, ±250, ±500, ±1000, ±2000 or ±4000 °/s, 16 bits
Magnetometer 3-Axis, ±2 / ±8 gauss, 16 Bits
Pressure Sensor 300-1100hPa
Data Output Format Raw Data / Euler Angle / Quaternion
Data Output Rate 500Hz
Power Supply 5-18vDC (5V USB) 5-18vDC (5V USB) 5-18vDC (5V USB)
Power Consumption 252mW (0.021A @ 12V) 252mW (0.021A @ 12V) 204mW (0.017A @ 12V)
Connector DB9 Female Connector & Micro USB-B Port
Housing ABS Plastic Shell
Dimensions 34 x 34.5 x 17.5mm
Weight 17.6g
Temperature Range -20 to +80°C (-40 to +80°C upon request)
Software LpmsControl2 interface software (Windows), Open source sensor driver for Windows and Linux (OpenZen, supports C, C++, Python, C#, Unity, ROS)

A DC-DC power converter is included on the product list below to allow for 24vDC powered systems to use the LPMS unit.
