Description
Features

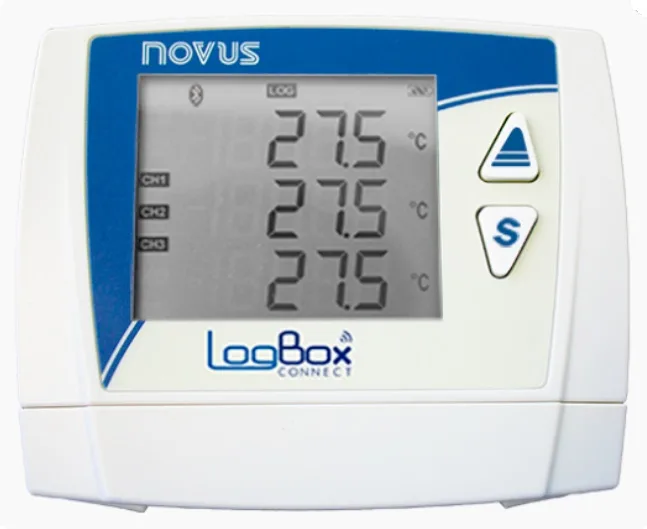

Bluetooth
- Monitoring of indoor environments with visual display
- Configuration and data download via Bluetooth
- NXPerience app available for Android phones, Version 6.0
- NXPerience app available for iOS phones, Version 11
- External power supply 10-30vDC or 4 AA alkaline batteries
- 2 years with internal batteries (5 min acquisition interval)
WiFi
- Monitoring of larger facilities with WiFi existing infrastructure
- Configuration and data download via USB or WiFi with NXperience PC software
- External power supply 10-30vDC (backup operation with 4 AA alkaline batteries)
- WiFi Data transmission to NXperience, NOVUS Cloud, SCADA or other cloud systems

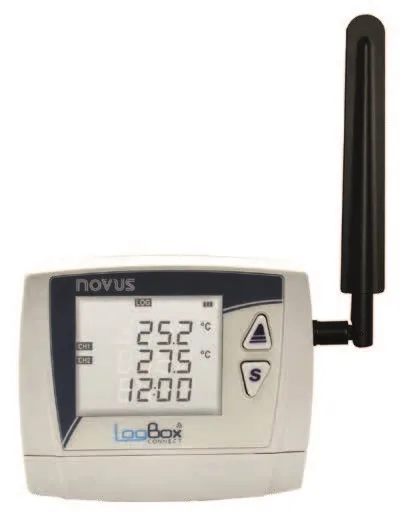

3G
- Monitoring in mobile applications or distributes over long distances
- Configuration and data download via USB with NXperience PC software
- External power supply 10-30vDC
- Internal rechargeable backup battery for up to 2 hours autonomy
- Data transmission via 3G celullar network to NOVUS Cloud, SCADA or other cloud systems
Specifications
Characteristics | LogBox BLE | LogBox WiFi | LogBox 3G |
Input Signal | 1 Digital Input 3 Analog Inputs |
1 Digital Input 3 Analog Inputs |
1 Digital Input 2 Analog Input |
Type of Analog Signal | Thermocouples J,K,T,N,E,R,S,B, PT100, 0-50mV, 0-5V, 0-10V, 0- 20mA, 4-20mA |
Thermocouples J,K,T,N,E,R,S,B, PT100, 0-50mV, 0-5V, 0-10V, 0- 20mA, 4-20mA |
Thermocouples J,K,T,N,E,R,S,B, PT100, 0-50mV, 0-5V, 0-10V, 0- 20mA, 4-20mA |
Function of Digital Input | Counts Pulses, Records Events or Starts Logger |
Counts Pulses, Records Events or Starts Logger |
Counts Pulses, Records Events or Starts Logger |
Digital Output | 1 PNP Output (Electronic Switch or Alarm) |
1 PNP Output (Electronic Switch or Alarm) |
1 NPN Output (Alarm) |
Internal Sensors |
NTC for temperature, Battery Voltage and External Power Supply |
NTC for temperature, Battery Voltage and External Power Supply |
Battery Voltage and External Power Supply |
Display | 3 lines with 4½ digits | 3 lines with 4½ digits | 3 lines with 4½ digits |
Resolution | 15 bits | 15 bits | 15 bits |
Memory Capability | 140000 records | 140000 records | 140000 records |
Record Interval | 1 sec to 18h | 1 sec to 18h | 1 sec to 12h |
Variable Record | Instantaneous or average | Instantaneous or average | Instantaneous or average |
Acquisition Trigger | Date/Hour, Start button, Digital Input or by Software |
Date/Hour, Start button, Digital Input or by Software |
Date/Hour, Start button, Digital Input or by Software |
Alarms | 8 Alarms (two per channel) Low and High |
8 Alarms (two per channel) Low and High |
Up to 10 alarms Send by SMS |
Internal Buzzer | Yes | Yes | Yes |
Communication Interface | USB Bluetooth 4.1 (BLE) |
USB WiFi 802.11 b/g/n |
USB Cellular 3G |
Conªguration Software | NXperience (PC USB) LogChart-BLE (smartphone) |
NXperience (USB and WiFi) | NXperience (PC USB) Novus Cloud |
Interface with SCADA or Cloud system |
Yes, MQTT protocol | Yes, Novus Cloud and MQTT protocol |
|
Power Supply |
10-30vDC and/or 4 AA alkaline batteries |
10-30vDC 4 AA alkaline backup batteries (turns off WiFi) |
10-30vDC, Internal backup battery |
Battery Autonomy | Typical 2 years | Typical 2 year (with batteries, without WiFi) |
Up to 8h (With back battery) |
Operation Temperature | With batteries: -10 to 50°C With power supply: -20 a 70°C |
With batteries: -10 a 50°C With power supply: -20 a 70°C |
With battery: 0 a 45°C With power supply: -20 a 70°C |
Enclosure Protection | IP40 | IP40 | IP40 |
Dimensions | 120 x 100 x 40 mm | 120 x 100 x 40 mm | 120 x 100 x 40 mm |
