LeveLine Logger

Description

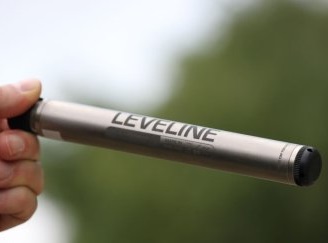

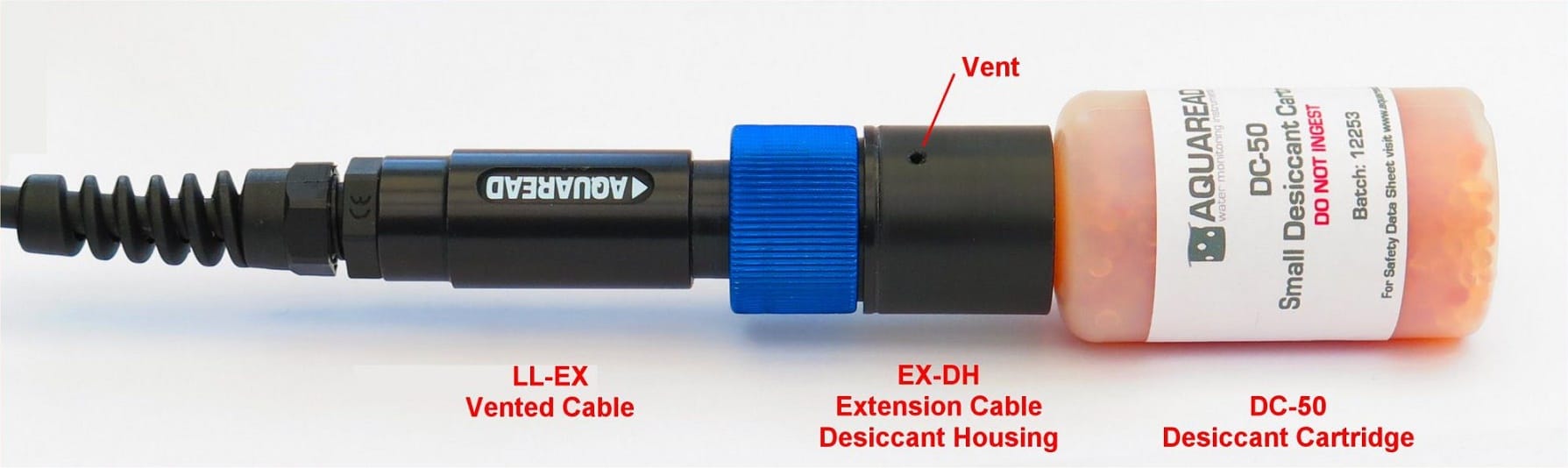

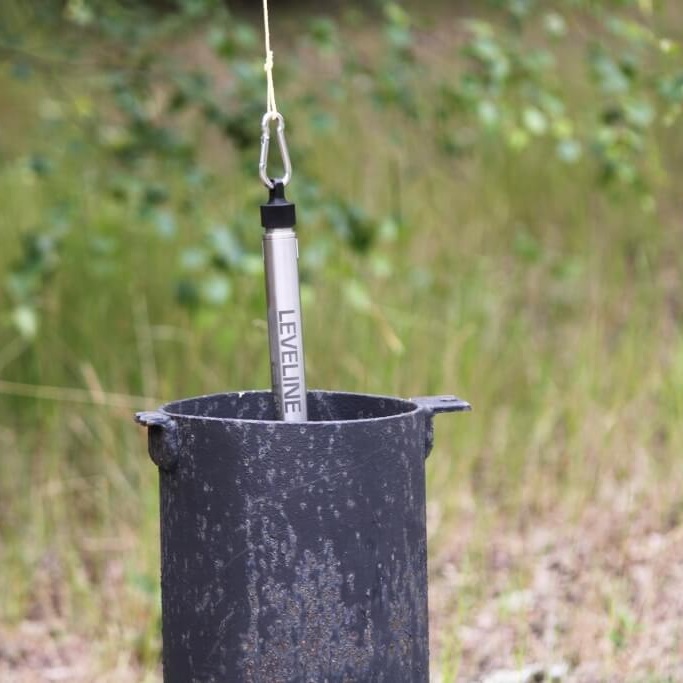

The LeveLine package include a 10m water level sensor, 10m cable (or deployment code) to the surface and LL-PC-Kit. Units are ideal for monitoring rivers, docks or coastal water levels in a single package. The LL-ABS-Package contains: a 0-10m LeveLine Absolute Sensor; LeveLine-Baro Sensor; 10m Deployment Cord and a LL-PC-KIT download cable. The LL-GAUGE-Package contains: a 0-10m LeveLine Gauge Sensor, LL-EX-10m-V (vented cable), EX-DH (desiccant housing that fits to the cable connector), DC-100 (100ml desiccant cartridge, fits to EX-DH) and a LL-PC-KIT download cable.

Features

  • 0.05% FS accuracy
  • 500,000 data point memory.
  • Replaceable 10 Year Battery.
  • Titanium Body.
  • 5 Year Warranty.
  • Included LeveLink PC Software for basic and advanced data compensation.
  • SDI-12, RS485 Modbus communications.
  • 22mm x 186mm

Applications

  • Groundwater level monitoring, pump tests, slug tests etc.
  • Stream, lake and reservoir water level measurement.
  • Wetland and flood water monitoring.
  • Coastal monitoring.
  • Tank level measurement.
  • Long term continuous monitoring in boreholes, surface water and seawater applications.



Specifications

GENERAL
Temperature ranges Operational: -20-80°C, Storage: -40-80°C, Compensated: -20-80°C
Diameter 22mm
Length 186mm
Weight 150g
Materials Titanium body, Delrin nose cone
Output options RS485 Modbus, SDI-12, Aquaread proprietary
Battery type & life 3.6V Lithium, up to 10 years (Depending on logging rate)
External power 6-24vDC
MEMORY & OUTPUT RATE
Memory size 8.0MB
Data records 500,000 readings
Log types Linear, Event & User-Selectable Schedule with Future Start, Future Stop, Deploy Start and Real Time View
Fastest Modbus output rate 10 per second
Fastest SDI-12 output rate 1 per second
Real-time clock Accurate to 1 second/24-hr period (±6 minutes/year)
SENSOR
Type / Material Piezoresistive ceramic
Range (Absolute) 10.0M (32.8 ft)
Maximum pressure Max 2x range, Burst 2.5x range
Accuracy (FS) ±0.05% FS
Resolution 0.002% FS or 1mm whichever is greater
Units of measure Pressure: mBar (psi, kPa, Bar, mBar, mmHg, inHg, cmH2O, inH2O, Level: m, ft, mm, cm and mm available in Levelink)
TEMPERATURE SENSOR
Accuracy & resolution ±0.1°C, 0.01°C
Units of measure Celsius (fahrenheit available in Levelink)
WARRANTY
Standard 5 years
Extended Options Available

Higher ranges are available as separate parts in the Leveline Loggers.
