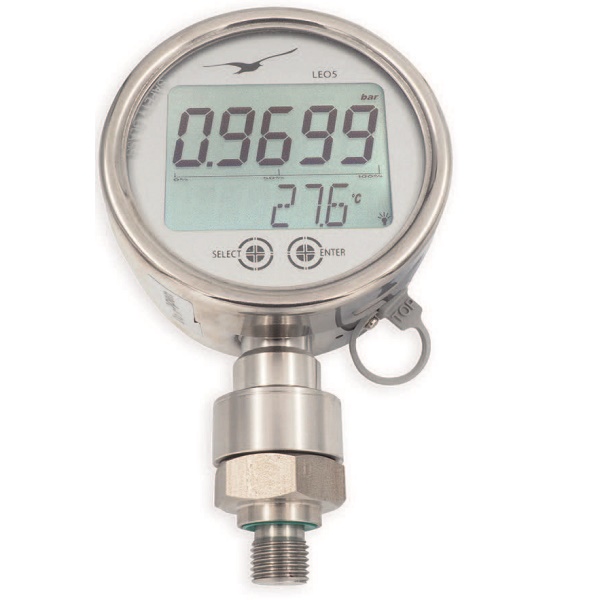

LEO5 Digital Manometer

LEO5 Digital Manometer with Data Logger

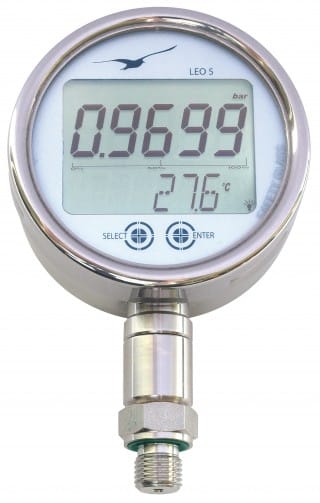

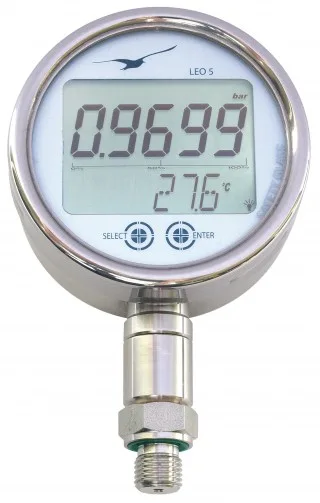

The Keller LEO 5 is a combined pressure and temperature indicator and data logger available for pressure ranges up to 1000 bar and featuring an IP66-rated stainless steel enclosure. The robust housing combines contemporary microcontroller-based electronics and capacitive-touch controls, operated through the environmentally-sealed safety glass front panel. The large backlit LCD display ensures readability in any lighting conditions. The LEO 5 combines the notable features of the LEO Record and LEX 1 digital pressure gauges, plus a peak function with 5kHz recording. The LEO 5 interfaces with a PC via USB and allows access to active measurements and recorded data including pressure, peak pressure, temperature and measurement interval. PC connection also allows device configuration, firmware updates and recharging of the integral accumulator power supply.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

LEO 5 Digital Manometer

Description

Features

  • Rugged, waterproof stainless steel housing with safety glass face
  • Large, easy-to-read 5-digit LCD display with 5/8” digits
  • Operation by capacitive touch buttons
  • Pressure peak with 5 kHz sampling frequency and high resolution measurement in standard mode
  • Rechargeable accumulator power supply
  • Record function (pressure, peak pressure, temperature, measurement time)
  • Internal memory for 56,000 readings
  • USB-interface for configuration, download, and power recharge



Options (not currently available on units)

  • External supply and RS-485 BUS Interface
  • Integrated barometric sensor for AA measurements
  • Analog outputs 4-20mA or 0-10V / up to 2 contacts (PNP)
  • Custom software/custom specific test procedures
  • Customised front cover
  • Special pressure connections



Above options are still be finalised and will not be available on current units. If you require one, or more, of these specific options, please let us know and we can get an estimated lead time for the completion of this option.

Specifications

Gauge Pressure (PR) Absolute Pressure (PAA) Absolute Pressure (PA) Over Pressure Display Resolution
Pressure Range

(Click the range for more details)

 -1 to 1 Bar 0 to 2 BarA 8 Bar 0.0001 Bar
-1 to 3 Bar 0 to 4 BarA 8 Bar 0.0001 Bar
-1 to 6 Bar 0 to 7 BarA 20 Bar 0.001 Bar
-1 to 10 Bar 0 to 11 BarA 20 Bar 0.001 Bar
-1 to 16 Bar 0 to 17 BarA 40 Bar 0.001 Bar
-1 to 30 Bar 0 to 31 BarA 60 Bar 0.001 Bar
0 to 61 BarA 200 Bar 0.001 Bar
0 to 101 BarA 200 Bar 0.01 Bar
0 to 161 BarA 300 Bar 0.01 Bar
0 to 300 Bar 600 Bar 0.01 Bar
0 to 400 Bar 800 Bar 0.02 Bar
0 to 700 Bar 1,100 Bar 0.05 Bar
0 to 1,000 Bar 1,100 Bar 0.1 Bar
Reference Pressure Atmospheric Pressure 0 Bar Absolute (Vacuum) 1 Bar Absolute To Reference Pressure
Accuracy 0.05 %FS (20-25°C), 0.1 %FS (0-50°C)
Storage- / Operating Temperature -10…60°C / 0…50°C
Compensated Temperature Range 0…50°C
Protection IP66

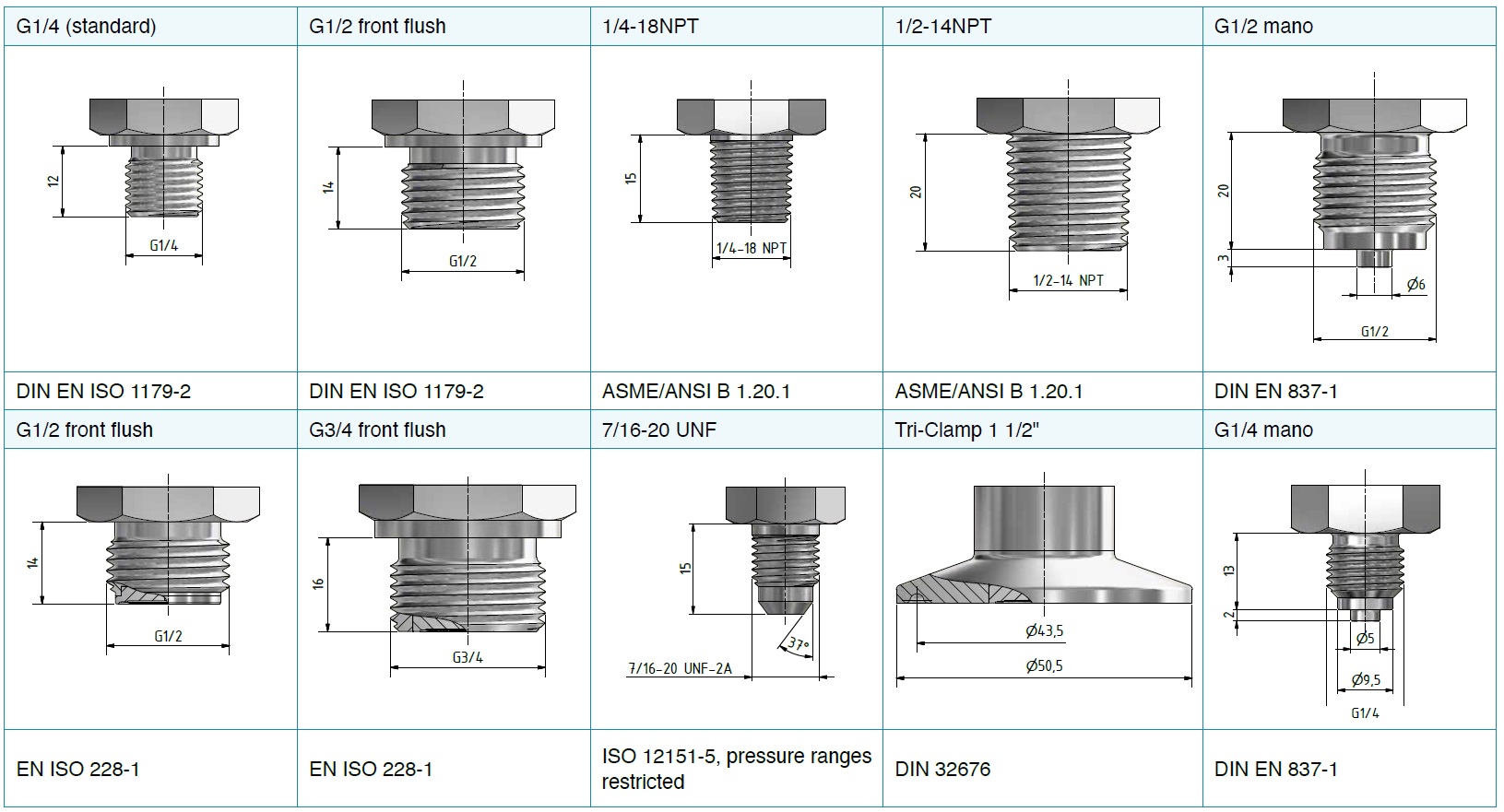

Available Process Connections

Product

Ref

Price

Product Description

LEO5-1-3BAR-¼BSP

£780.00

LEO 5 High Resolution Manometer with Peak and Recording Function for up to 56,000 readings. Range -1 to 3 Bar with accuracy of 0.05%FS. Standard mode is at 2Hz, peak reading mode at 5kHz. Compensated temperature 0 to 50 C, internal battery for up to 1,600 hours operation (160 hours in peak mode), backlit 5 digit display. IP66-rated stainless steel casing with sealed safety glass front panel and capacitive touch controls. USB/Mini USB-B interface for configuration and downloading logged data.
MORE INFO
Add to basket

LEO5-1-10BAR-¼BSP

£780.00

LEO 5 High Resolution Manometer with Peak and Recording Function for up to 56,000 readings. Range -1 to 10 Bar with accuracy of 0.05%FS. Standard mode is at 2Hz, peak reading mode at 5kHz. Pressure connection 1/4 inch BSP male connection, compensated temperature 0 to 50 C, internal battery for up to 1,600 hours operation (160 hours in peak mode), backlit 5 digit display. IP66-rated stainless steel casing with sealed safety glass front panel and capacitive touch controls. USB/Mini USB-B interface for configuration and downloading logged data.
MORE INFO
Add to basket

LEO5-1-30BAR-¼BSP

£780.00

LEO 5 High Resolution Manometer with Peak and Recording Function for up to 56,000 readings. Range -1 to 30 Bar with accuracy of 0.05%FS. Standard mode is at 2Hz, peak reading mode at 5kHz. Pressure connection 1/4 inch BSP male connection, compensated temperature 0 to 50 C, internal battery for up to 1,600 hours operation (160 hours in peak mode), backlit 5 digit display. IP66-rated stainless steel casing with sealed safety glass front panel and capacitive touch controls. USB/Mini USB-B interface for configuration and downloading logged data.
MORE INFO
Add to basket

LEO5-300BAR-¼BSP

£780.00

LEO 5 High Resolution Manometer with Peak and Recording Function for up to 56,000 readings. Range 0 to 300 Bar with accuracy of 0.05%FS. Standard mode is at 2Hz, peak reading mode at 5kHz. Pressure connection 1/4 inch BSP male connection, compensated temperature 0 to 50 C, internal battery for up to 1,600 hours operation (160 hours in peak mode), backlit 5 digit display. IP66-rated stainless steel casing with sealed safety glass front panel and capacitive touch controls. USB/Mini USB-B interface for configuration and downloading logged data.
MORE INFO
Add to basket

LEO5-700BAR-¼BSP

£780.00

LEO 5 High Resolution Manometer with Peak and Recording Function for up to 56,000 readings. Range 0 to 700 Bar with accuracy of 0.05%FS. Standard mode is at 2Hz, peak reading mode at 5kHz. Pressure connection 1/4 inch BSP male connection, compensated temperature 0 to 50 C, internal battery for up to 1,600 hours operation (160 hours in peak mode), backlit 5 digit display. IP66-rated stainless steel casing with sealed safety glass front panel and capacitive touch controls. USB/Mini USB-B interface for configuration and downloading logged data.
MORE INFO
Add to basket
