Home / Pressure Sensors / Digital Manometers and Pressure Loggers / LEO2-O2 Digital Manometer Suitable for O2 Applications

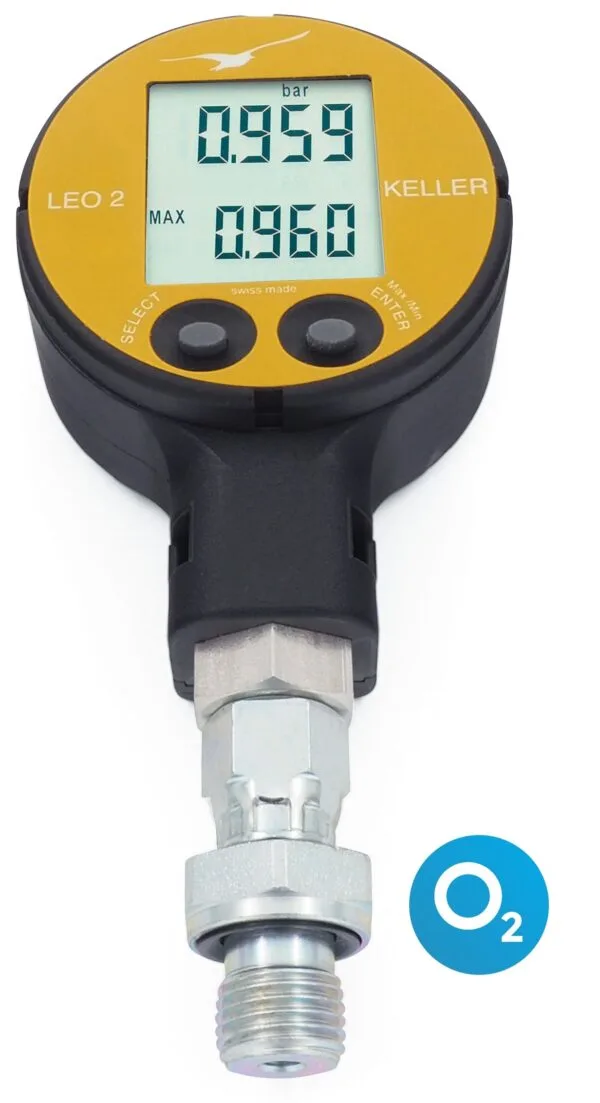

LEO2-O2 Digital Manometer

LEO2-O2 Digital Manometer Suitable for O2 Applications

LEO2-O2 Digital Manometers specifically designed LEO2 for Oxygen pressure monitoring. The diaphragm oil is Galden HT720 and is suitable for use up to 200 Bar at 60°C or Fomblin M100 oil can also be used up to 330 Bar. Diaphragm and pressure ports must be kept clean of any other oils and grease.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

LEO2 Manometer

  • Description

Description

The LEO2-O2 is a specifically designed LEO2 for O2 applications. Providing a precise digital pressure gauge suitable for Oxygen systems. The gauges are made with Fomblin or Galden oils that do not react with O2 as the standard Silicone oil may. Ideal for manufacturing, Transportation, Storage or O2 tank refilling applications. These gauges are commonly used to monitoring refilling of scuba tanks, or emergency service breathing apparatus. They can also be used for O2 lines in hospitals or other medical facilities.

Features

  • Galden HT270 Oil filled for gauges up to 200 Bar
  • Fomblin M100 Oil filled for gauges up to 330 Bar
  • High Accuracy Display with wide range of units to choose from
  • Long battery life of up to 1,000 operating hours
  • Min/Max displayed in lower half
  • Zero Point Calibration via button.

Specifications

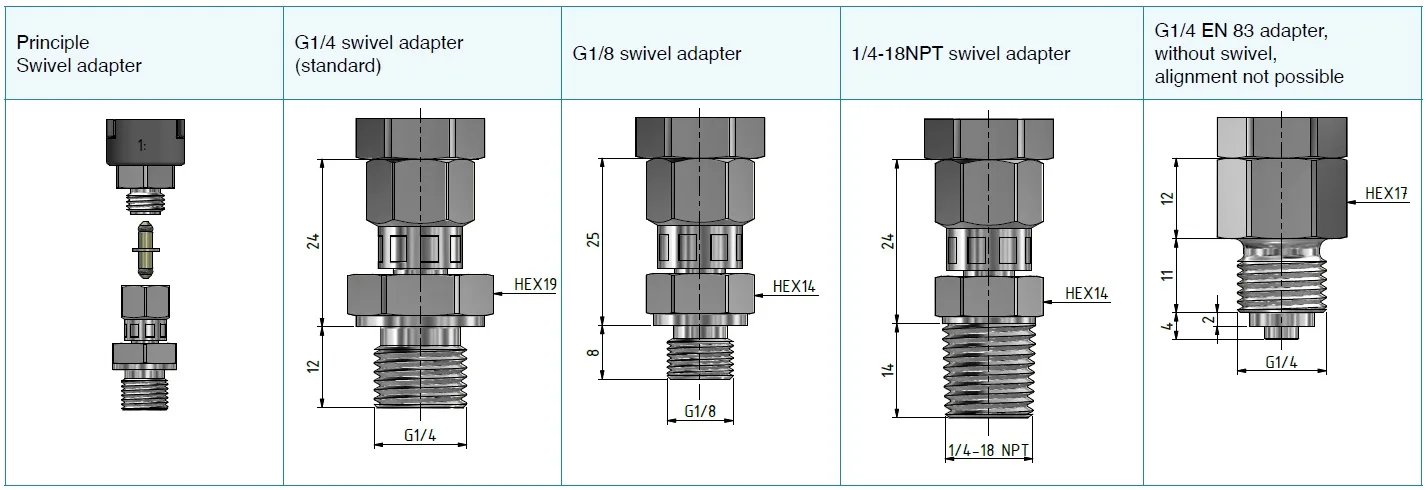

Process Thread ¼” BSP Male with Swivel Adapter
¼-18 NPT Male with Swivel Adapter
Pressure Connection Stainless steel AISI 316L
Pressure Transducer Diaphragm Stainless steel AISI 316L
Pressure Port Galvanised Steel with External NBR Seal
Swivel Adapter  Nickel-plated Brass with NBR O’rings
Display Housing Polyamide
Front Glass LEXAN® 163R

Product

Ref

Price

Product Description

LEO2-O2 Digital Manometer

LEO2-O2-1-30BAR

£330.00

LEO2-O2 Digital Manometer for O2 Applications. Pressure range -1 to 30 Bar with 0.01 Bar resolution and 0.1%FS accuracy. Peak reading function and selectable engineering units. Internal battery for up to 1,000 hours continuous operation. Pressure connection: Stainless Steel 7/16″-20 UNF male connection with ¼” BSP swivel adapter. Galdem HT270 oil and port cleaned of oil and grease for O2 Service up to 200 Bar @ 60°C.
MORE INFO
Add to basket
LEO2-O2 Digital Manometer

LEO2-O2-200BAR

£370.00

LEO2-O2 Digital Manometer for O2 Applications. Pressure range 0 to 200 Bar with 0.1 Bar resolution and 0.1%FS accuracy. Peak reading function and selectable engineering units. Internal battery for up to 1,000 hours continuous operation. Pressure connection: Stainless Steel 7/16″-20 UNF male connection with ¼” BSP swivel adapter. Galdem HT270 oil and port cleaned of oil and grease for O2 Service up to 200 Bar @ 60°C.
MORE INFO
Add to basket
LEO2-O2 Digital Manometer

LEO2-O2-300BAR

£430.00

LEO2-O2 Digital Manometer for O2 Applications. Pressure range 0 to 300 Bar with 0.1 Bar resolution and 0.1%FS accuracy. Peak reading function and selectable engineering units. Internal battery for up to 1,000 hours continuous operation. Pressure connection: Stainless Steel 7/16″-20 UNF male connection with ¼” BSP swivel adapter. Fomblin M100 oil and port cleaned of oil and grease for O2 Service up to 330 Bar @ 60°C.
MORE INFO
Add to basket
