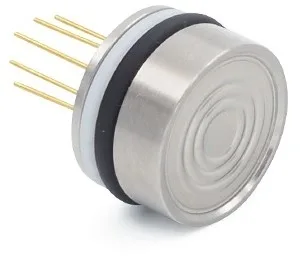

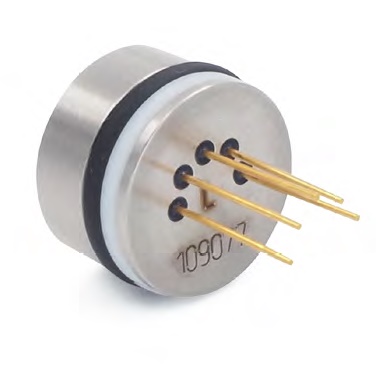

The Series 6LHP is a high pressure transducer with a robust stainless steel housing for optimum long-term stability for a wide range of OEM applications. The transducers includes a front-flush diaphragm welded with no gaps and an insulated piezoresistive pressure sensor encapsulated in an oil-filled metal housing with O-ring and support ring. Transducers are available with Stainless Steel, Hastelloy and Inconel for operating pressures up to 2,000 Bar and temperature for up to 150°C. Low power consumption: 1mA (Max 3mA) and typical output signal range of 160mV/mA. Transducers supplied with calibration sheet.
