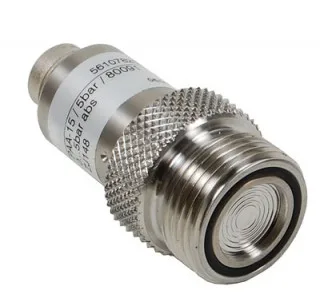

This pressure sensor is ideal for use in sterilisers, and is supplied with compensation resistors and mathematical modelling. Part numbers PAA15/80091-5 and PAA15/80091-V
| Excitation | Constant Current 0,5 to 5 mA; Specifications apply for 4 mA |
|
| Pressure Ranges | 0,1…1000 bar (abs./rel.) | |
| Linearity | typ. < 0,25 % FS | max. < 0,5 % FS |
| Comp. Temp. Range | 0…50°C | -10…80°C |
| T.C. of Zero | < 0,05 mV / °C | < 0,1 mV / °C |
| T.C. of Sensitivity | < 0,01 % / °C | < 0,02 % / °C |
| Long Term Stability typ. | 1 mV | 2 mV |
| Signal | Ranges: 0,1…1 bar: 400 mV / bar
Ranges: 2…1000 bar: 600…1000 mV FS |
PAA15/80091-5
£630.00
