Description

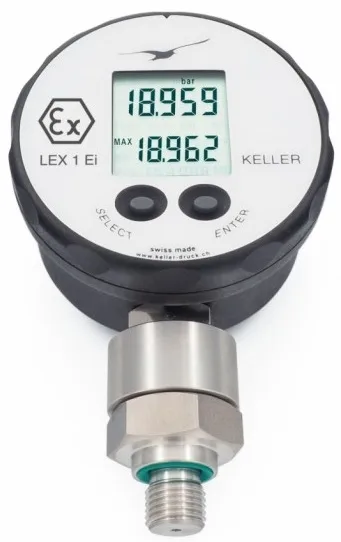

Features
- 5 digit LCD, top display showing actual and lower display showing min/max readings
- 13 selectable pressure units, including Bar, PSI and hPa.
- Insulated piezoresistive pressure sensor encapsulated in an oil-filled metal housing
- High Accuracy of up to 0.01 %FS, 0.05% standard
- RS485 bus interface for communication with up to 128 devices
- 3V internal battery, Renata CR2430 (Required for ATEX Certification)
- IP65 rated
- ATEX and IECEx Approved version Ex II 2 G Ex ia IIC T6 Gb
- Units are supplied with a 5 point calibration certificate
Specifications
Material in contact with Media
| Display Housing: | Faradex AS-1003 |
| Pressure Connection: | Stainless Steel AiSt 316L |
| Pressure Transducer: | Stainless Steel AiSt 316L |
| Seal (Internal): | FKM (Viton Type A) |
| Seal (External): | FKM (Viton Type A) |
Pressure Ranges
| Relative Pressure (PR) |
Absolute Pressure (PA, PAA) |
Over Pressure | Resolution |
| -1 to +1 Bar | 0 to 2 BarA | 8 Bar | 0.1mBar |
| -1 to +3 Bar | 0 to 4 BarA | 8 Bar | 0.1mBar |
| -1 to +6 Bar | 0 to 7 BarA | 20 Bar | 1mBar |
| -1 to +10 Bar | 0 to 11 BarA | 20 Bar | 1mBar |
| -1 to +16 Bar | 0 to 17 BarA | 90 Bar | 1mBar |
| -1 to +30 Bar | 0 to 31 BarA | 90 Bar | 1mBar |
| 0 to 61 BarA | 300 Bar | 1mBar | |
| 0 to 101 BarA | 300 Bar | 10mBar | |
| 0 to 161 BarA | 600 Bar | 10mBar | |
| 0 to 300 Bar | 600 Bar | 10mBar | |
| 0 to 400 Bar | 800 Bar | 20mBar | |
| 0 to 700 Bar | 1100 Bar | 50mBar | |
| 0 to 1000 Bar | 1100 Bar | 100mBar |
General Specifications
| Battery: | 3V battery, Renata CR2430 required for ATEX certification |
| Battery Life: | Approx. 2000 Hours |
| External Interface: | RS485 Half-Duplex, safe area use only |
| Interface Measuring Rate: | 30 measurements per second |
| Pressure Connection: | 1/4″ BSP, Others on request |
| Diameter x Height x Depth: | 76 x 148 x 55mm approx |
| Weight: | 335g |
Accuracy ±0.05 %FS, with KELLER test report ex works (standard)
Keller uses pressure sources to calibrate its products that are at least four times more accurate than the product
to be tested. This enables us to produce products in our factory with an absolute accuracy of up to ±0,05 %FS.
Precision ±0.01 %FS / 0.025 %FS, with KELLER test report ex works
Additional measurement work and selection of a specific pressure transducer means that optimum repeatability is guaranteed for selected pressure transmitters and digital manometers. Owing to the residual measurement uncertainty of the pressure sources used at its factory, KELLER cannot provide any verification of measurement accuracy at scales below ±0.05 %FS for these ultra-precise devices. KELLER therefore uses the term “precision” to denote the ability of a pressure transmitter or manometer to repeat measured values within a tolerance of 0,01 %FS based on the pressure sources used at the factory.
Accuracy ±0.01 %FS with DakkS (German accreditation body) certificate, issued by an external accredited calibration laboratory
By calibrating the zero point and performing amplification via the digital interface, an accredited calibration laboratory (ilac.org) can adapt ultra-precise KELLER products to their more accurate pressure sources and record the results. External calibration to an accuracy of up to ±0.01 %FS is performed in accordance with the guidelines set out by the German Calibration Service (DKD) and is conducted under reference conditions without any consideration of long-term effects.
