The LEO 1 is an autonomous battery powered manometer with digital display designed for monitoring sudden pressure changes in a standalone unit. The LEO 1 features a micro-processor with a 5KHz fast peak function that can show Max and Min values of pressure spike or troughs. Pressure ranges are available from -1 to 3 Bar up to 0-1,000 Bar. The internal battery will provide up to 1,000 hours continuous operation. Accuracy is ±0.2%FS (0-50°C). The LEO 1 is available for safe area use and the LEO 1Ei for hazardous area installation.

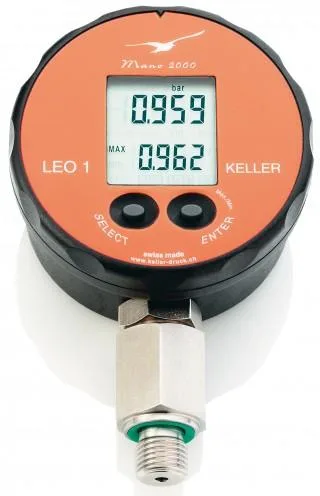

Digital Manometer LEO 1 (Accuracy 0,2%)
The LEO1 is a micro-processor controlled, accurate and versatile digital pressure measuring instrument with integrated fast peak-, max.- and min.-function.
The instrument is used in two modes:
Mano-Mode:
The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the MAX.- or MIN- pressure since the last RESET.
Peak-Mode:
The pressure is measured 5,000 times per second and is brought to the display twice per second. The top display shows the actual pressure, the bottom display the peak- (MAX.) or trough-pressure (MIN.).
LEO 1 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the MAX.- and MIN.-value in both modes.
The instrument has the following functions:
RESET:
With the RESET-function, the MAX.- and MIN.-value is set to the actual pressure value.
ZERO:
The ZERO-function allows to set any value as a new Zero reference.Barometric pressure variations can thus be compensated. The factory setting of the Zero for the ranges -1…3 bar or -1…30 bar is at 0 bar absolute. For sealed gauge pressure measurements, activate “ZERO SEt” at ambient pressure. Instruments with the ranges 0…300 bar, 0…700 bar or 0…1000 bar are calibrated in a sealed gauge mode with 1 bar absolute pressure as a Zero reference.
CONT:
The instrument turns off 15 Min. after the last key function. Activating CONT (Continuous) deactivates this automatic turn-off.
UNITS:
All standard instruments are calibrated in bar. The pressure can be indicated in the following units: bar, mbar/hPa, kPa, MPa, PSI, kp/cm 2
Accessories (optional): Protective rubber covering and carrying bag.

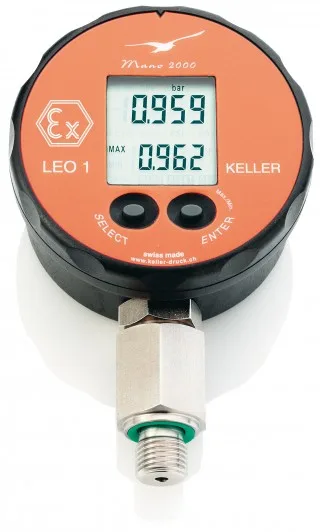

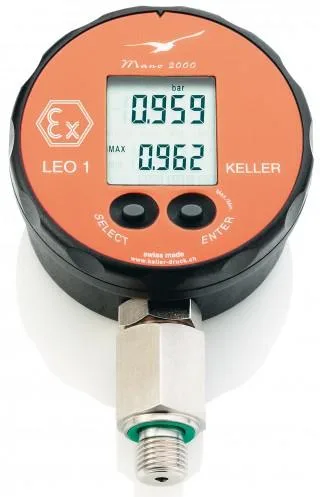

LEO 1 Ei
Intrinsically safe version, 94/9/CE (ATEX 100a)
Classification: EX II 1G EEx ia II C T6 or T5
Certification File: LCIE 01 ATEX 6001X
The EEx ia version of LEO 1 incorporates an additional protection switch. Functions, ranges and accuracy are identical to the standard version.
| Specification | |
| Pressure Ranges | -1…3 bar -1…30 bar 0…300 bar 0…700 bar 0…1000 bar |
| Accuracy | < 0,2% FS |
| Storage- / Operating Temperature | -30…80 °C / 0…50 °C |
| Compensated Temperature Range | 0…50 °C |
| Protection | IP65 |
LEO1-1-3BAR
£315.00
LEO1-1-30BAR
£315.00
LEO1-300BAR
£315.00
LEO1-700BAR
£365.00
LEO1-1000BAR
£365.00
