Description
Features
- Relative humidity, temperature and psychrometric calculations
- Graphical display for graphs and up to 4 values
- Freely settable visual and audible alarms on every value
- 64’000 data points memory for time programmable interval logging
- Long lasting battery (up to 48 h when logging every 30 seconds)
Applications
- Field inspection and spot checks in HVAC
- Building management systems
- Agriculture and food industry
- Pharmaceutical industry
Specifications

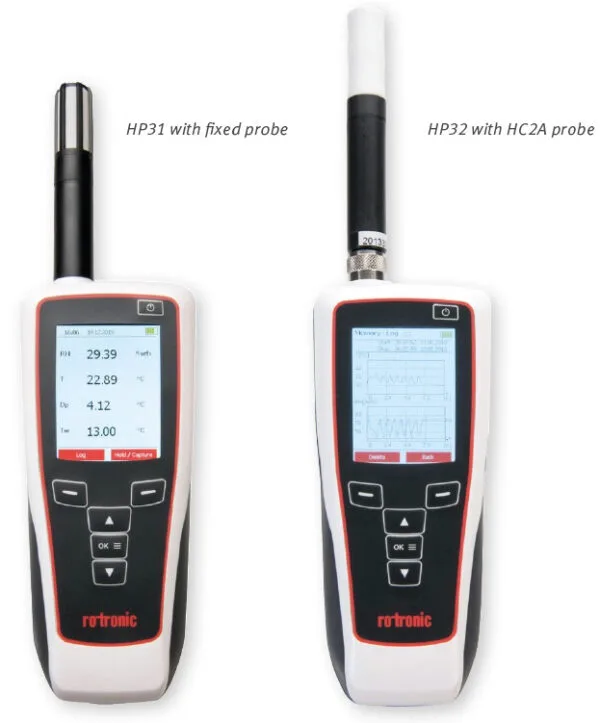

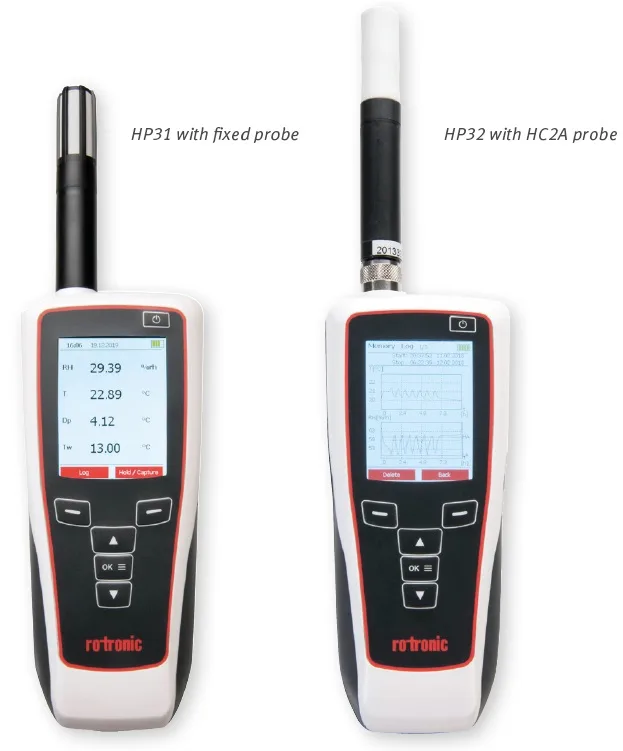

| Â | HP31 | HP32 |
| Compatible Probes | Integrated Probe | All HC2A and HC2 Probes (Except HC2-LDP) |
| Measuring Range | -10 to 60°C, 0-100%RH | Depends on Probe |
| Accuracy | ±0.3°C, ±2%RH | Depends on Probe |
| Psychrometric Readings
|
Dew / Frost point (Dp / Fp) Wet bulb temperature (Tw) Enthalpy (H) Vapor concentration (Dv) Specific humidity (Q) Mixing ratio by weight (R) Vapor pressure (E) Saturation vapor pressure (Ew) Saturation vapor density (SVD) |
|
| Functions
|
Spot measurements Programmable logging interval MIN / MAX / AVG |
|
| Memory Capacity | 8 x 8,000 data points | |
| Logging Interval | 1 second up to 24 Hours | |
| Display Refresh Rate | Every Second | |
| Integrated Battery
|
Lithium polymer, 3.7 V, 1000 mAh 48 h – Logging every 30 s, screen off 10 h – Screen always on |
|
| PC Interface | Micro-USB Port, HW4 Compatible (Version 3.9 or later) | |
| Enclosure Material | ABS, TPR | |
| IP Protection Class | IP65 | |
| Dimensions | 160 x 63 x 30mm | |
| Weight | 185g | |
