HygroPalm 23 AW

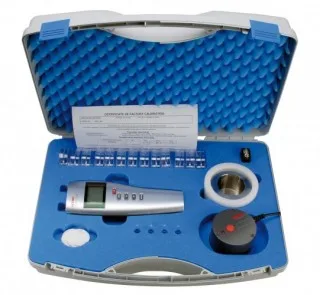

The HygroPalm 23 AW sets are the perfect portable solution for on-site water activity measurements. They are supplied in a tough, lightweight ABS carry case and include everything needed for measurement and calibration. The new HP23-AW was developed as a portable solution with most of the functionality of the HygroLab3.

Need help finding the right product?

Downloads

Description

Description

Features

Measures humidity and temperature (AW or %RH and °C/°F)
Calculates absolute humidity
Software-aided probe calibration / adjustment (one-point / multi-point)
Range of application 0…1 AW (0…100 %RH) / -10…60°C
UART interface
Battery power monitor
Trend indicators

Kit Specifications

Kit	HP23-AW-Set-14	HP23-AW-Set-40
Handheld Device	HP23-AW
Measurement Probe	HC2-AW
Sample Holder	WP-14S	WP-40S
Disposable Sample Containers	PS-14, 14mm	PS-40, 40mm
Sample Containers Suitable For:	Tablets, Powders, Seeds, Tea, etc.	pet food, ore, nuts, beans, etc.
35% RH Humidity Standards	EA35-SCS
80% RH Humidity Standards	EA80-SCS
50% RH Humidity Standards	EA50-SCS
10% RH Humidity Standards	EA10-SCS
Carry Case	AC1124

WP-40S sample holders can be used with both the PS-40 and PS-14 sample containers.

Product

Ref

Price

Product Description

HP23-AW-SET-14

£3,811.00

HygroPalm 23-AW-A Set 14. The set is supplied in a tough, lightweight ABS carry case and include everything needed for measurement and calibration. The Set includes the HygroPalm-AW and HC2-AW probe. This set includes the 14mm Sample holder WP-14-S, Sample liners PS-14 (100 units) and 1 pack of each SCS Humidity standards (EA35-SCS, EA80-SCS, EA50-SCS and EA10-SCS).

HP23-AW-SET-40

£3,989.00

HygroPalm 23-AW-A Set 40. The set is supplied in a tough, lightweight ABS carry case and include everything needed for measurement and calibration. The Set includes the HygroPalm-AW and HC2-AW probe. This set includes the 40mm Sample holder WP-40-S, Sample liners PS-40 (100 units) and one pack of each SCS Humidity standards (EA35-SCS, EA80-SCS, EA50-SCS and EA10-SCS).

HP23-AW-A

£902.00

HygroPalm 23-AW-A. 2 probe inputs, 2 analogue inputs for 0-1V or 0-20mA, Mini USB connection, built in AW-Quick function, hold function, buzzer for aw measurement end, formula editor. Compatible probe: HC2-AW (order probe separately)

HC2-AW

£1,909.00

Water Activity Probe with UART interface. HC2-AW sensor connects via 1m UART cable interface. Powered via USB interface. Dimensions: 68 x 60mm. Operating range -40 to +85°C, 0-100%RH. Accuracy ±0.008 Aw / ±0.8%RH / ±0.1K.

HS-AW-CODE

£1,712.00

HygroSoft Extra with AwQuick Function (Water Activity). Website download and use the key code supplied with purchase. Compatible with all Rotronic water activity products with USB and UART interface. Aw measurement: Measuring water activity with the standard AWE and AW-Quick (getting results in typically 4-5min) measurement method. Aw Reports: Creating water activity measuring reports.

HC2-P05

£862.00

Hygroclip 2 Water Activity Probe HC2-P05. 5mm Stainless Steel Insertion probe for water activity (humidity), temperature and dewpoint measurements. Range 0-1 AW and -40 to +85 C. The 200mm probe is attached by 2m of TPU cable to a 7 pin UART interface. Output is 0-1V and is freely scalable, accuracy 0.015 aw and 0.3 C
