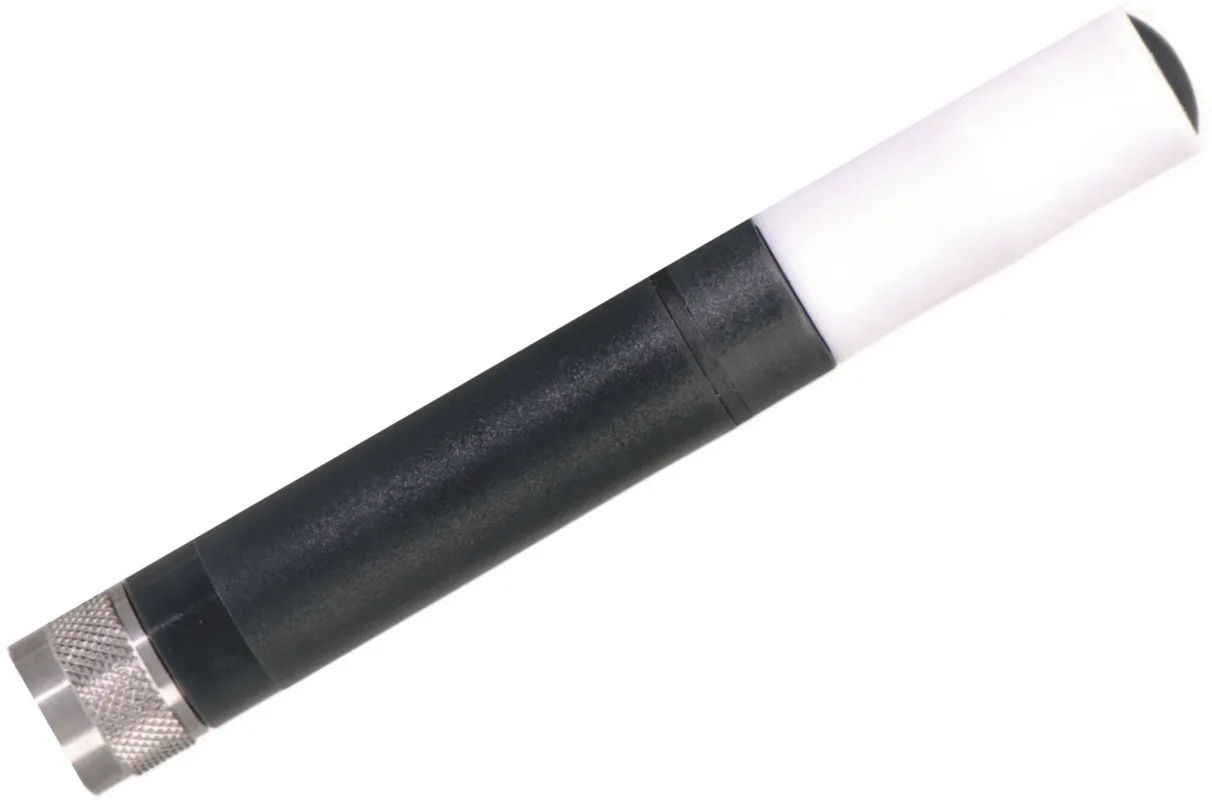

HYGROCLIP 2. Standard Air Measurement Probes.

HYGROCLIP 2. Standard Air Measurement Probes.

The HC2A-S is the standard and most cost effective range of probes for the measurement of humidity and temperature in air using handheld instruments, data loggers or transmitters. Fully interchangeable with a digital output to suit products like the HygroPalm handheld and HygroFlex transmitters. The HygroClip sensors also provide two analogue 0-1V output signal for OEM or data logging applications. These sensors are ideal for use with our Stevenson screen for monitoring temperature and humidity conditions as part of a weather station.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

HygroClip 2

Description

Features

  • Measures relative humidity, temperature and dew/frost point
  • Saves up to 2,000 measurement pairs
  • Range of application 0-100%RH / -50 to +100°C
  • UART interface and freely scalable analog signals 0-1V
  • Standard scaling 0-1V = 0-100%RH/-40 to +60°C
  • Probe with adjustment profile ‘Standard’ factory adjustment certificate

Specifications

Product Ref HC2A-S HC2A-SH HC2A-S3 HC2A-S3H HC2A-S3A
Type Standard Probe Meteorology Probe
Material Polycarbonate housing Polycarbonate housing
Colour Black White
Adjustment At 23°C and 10, 35 & 80 %RH
Accuracy ±0.8%RH/±0.1°C ±0.5%RH/±0.1°C ±0.8%RH/±0.1°C ±0.5%RH/±0.1°C ±0.8%RH/±0.1°C
Weight 10g 17g
Filter Polyethlene 40µm Wire Mesh 10µm
Sensor Hygromer HT-1 Hygromer HM1-SK
Reponse Time <15 seconds

Product

Ref

Price

Product Description

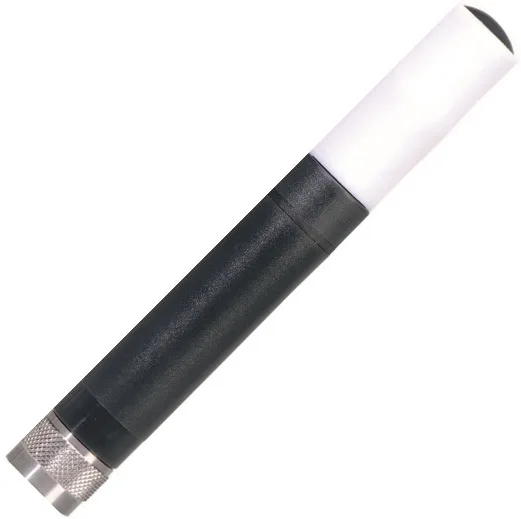

HC2A-S

£327.00

Standard HygroClip 2 Temperature and Relative Humidity Probe. Temperature Range: -50 to +100°C and Humidity 0-100%. Accuracy: ±0.1°C and ±0.8%RH. Outputs: 0-1V. Comes with a black Polycarbonate housing and a Polyethylene (40µm) filter. Sensor Element: Hygromer HT-1. Ideal for general purpose portable measurements in open spaces, warehouses, museums or factory floors. Max wind speed 20m/s.
MORE INFO
Add to basket
HC2A-SH Temp/RH Probe

HC2A-SH

£1,013.00

High Accuracy Standard Temperature and Relative Humidity Probe with UKAS Calibration. Temperature Range: -50 to +100°C and Humidity 0-100%. Accuracy: ±0.1°C and ±0.5%RH, adjustments at 23 °C and 10, 20, 30, 40, 50, 60, 70, 80, 90 %RH. Outputs: 0-1V. Comes with a black Polycarbonate housing and a Polyethylene (40µm) filter. Sensor Element: Hygromer HT-1. Ideal for high accuracy portable measurements in open spaces, warehouses, museums or factory floors. Max wind speed 20m/s. Supplied with UKAS calibrated (UKAS-T1-H3) at: 20, 50, 80 %RH performed at 20°C.
MORE INFO
Add to basket
HC2A-S3 Meteorological Temp/RH Probe

HC2A-S3

£327.00

Standard Meteorological Temperature and Relative Humidity Probe. Temperature Range: -50 to +80°C and Humidity 0-100%. Accuracy: ±0.1°C and ±0.8%RH. Outputs: 0-1V. Comes with a white Polycarbonate housing and a white Polyethylene dust (40µm) filter. Sensor Element: Hygromer HT1. Ideal for high Humidity Environments and Meteorological applications. Max wind speed 20m/s.
MORE INFO
Add to basket

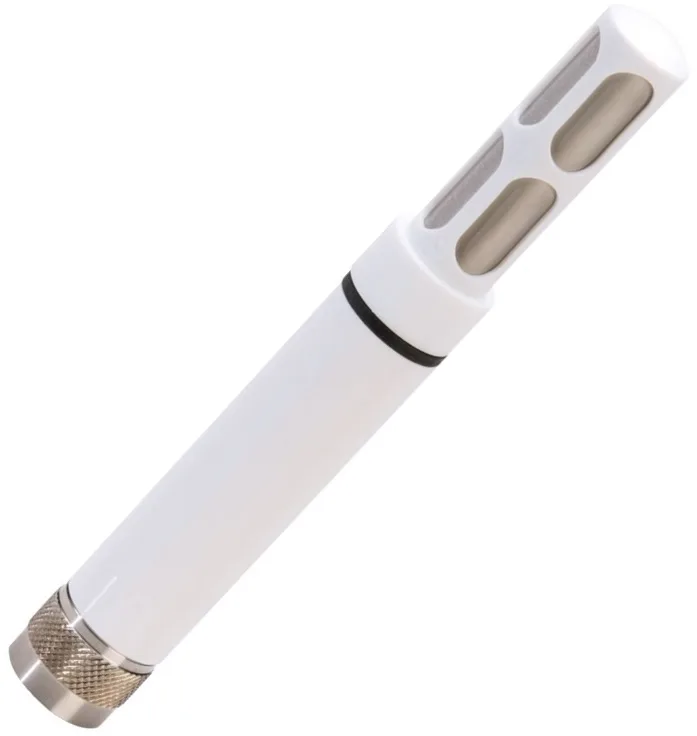

HC2A-S3A High-End Meteorological Temp/RH Probe

HC2A-S3A

£352.00

High-End Meteorological Temperature and Relative Humidity Probe. Temperature Range: -50 to +80°C and Humidity 0-100%. Accuracy: ±0.1°C and ±0.8%RH. Outputs: 0-1V. Comes with a white Polycarbonate housing and a wire-mesh (10µm) filter. Sensor Element: Hygromer HM1-SK. Ideal for high Humidity Environments and Meteorological applications. Max wind speed 50m/s.
MORE INFO
Add to basket
HC2A-S3H Meteorological Temp/RH Probe with Calibration

HC2A-S3H

£1,013.00

High Accuracy Meteorological Temperature and Relative Humidity Probe with UKAS Calibration. Temperature Range: -50 to +100°C and Humidity 0-100%. Accuracy: ±0.1°C and ±0.5%RH, adjustments at 23 °C and 10, 20, 30, 40, 50, 60, 70, 80, 90 %RH. Outputs: 0-1V. Comes with a white Polycarbonate housing and a white Polyethylene (40µm) filter. Sensor Element: Hygromer HT-1. Ideal for high accuracy portable measurements in open spaces, warehouses, museums or factory floors. Max wind speed 20m/s. Supplied with UKAS calibrated (UKAS-T1-H3) at: 20, 50, 80 %RH performed at 20°C.
MORE INFO
Add to basket
