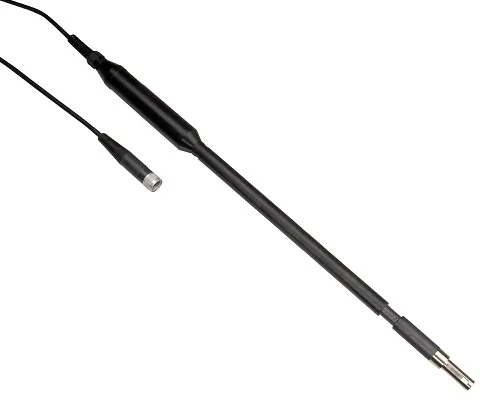

HYGROCLIP 2. High Temperature Measurement Probes.

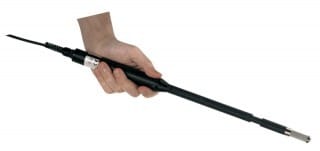

Hygroclip 2 High Temperature probes measure humidity and temperature up to 200°C. The probe is handheld, but the long probe enables full penetration into ducts, ovens, dryers or climatic chambers whilst the operator remains at a safe distance. The high performance PPS probe can withstand the wide operating range, yet has a low thermal mass which provides a faster response times than metal probes. It can be fitted with a range of filters to provide the optimum sensor protection and response characteristics the application requires.

Need help finding the right product?

Description

Features

  • Measures relative humidity, temperature and dew/frost point.
  • Temperature range -100°C up to +150°C (HC2-HK40, max 200°C)
  • Humidity range 0-100%RH
  • UART interface and freely scalable analog signals 0-1V
  • Standard scaling 0-1V = 0-100%RH & -40 to 60°C
  • Probe with ‘standard’ adjustment profile, factory adjustment certificate

Specifications

Product Ref HC2-HK25 HC2-HK40
Type Handheld probe – 2m TPU cable
Temp & RH
Ranges
0-100% RH,
-100°C to 150°C
0-100% RH,
-100°C to 200°C
Handle Anthracite
Adjustment At 23°C and 10, 35 & 80 %RH
Accuracy ±0.8%RH / ±0.1°C
Probe Length 250mm 400mm
Filter Carrier NSP-ME (Order Separately)

Product

Ref

Price

Product Description

HC2-HK25

£917.00

HygroClip 2 High Temperature Probe. Default ranges: Temperature -100 to +150°C and Humidity 0-100%RH, Accuracy ±0.8% RH, ±0.1°C. 250mm handheld cable mounted PPS probe with 2m cable. The high performance PPS probe can withstand the wide operating range, yet has a low thermal mass – therefore providing faster response times than metal probes. Ideal for measurements into ducts, ovens, dryers and climatic chambers whilst the operator remains at a safe distance.

HC2-HK40

£943.00

Hygroclip 2 High Temperature Probe. Default ranges: Temperature -100 to +150°C and Humidity 0-100%RH, Accuracy ±0.8% RH, ±0.1°C. 400mm handheld cable mounted PPS probe with 2m cable. The high performance PPS probe can withstand the wide operating range, yet has a low thermal mass – therefore providing faster response times than metal probes. Ideal for measurements into ducts, ovens, dryers and climatic chambers whilst the operator remains at a safe distance.
