Description

The HiTemp140-7 Data Loggers is an extreme temperature data logger with a rigid 7″ temperature probe. Measuring Temperature Range is -200 to 260°C. Operating temperature range -40 to +140°C, extendable using the Thermal shield to the full measurement range for specific duration. Internal memory is 65,536 readings with a 1 second to 24 hour logging interval and 2 year battery life.

Features

• Measurement Range -200 to +260°C
• Operates -40°C up to 140°C indefinitely
• Can be used with Thermal Barrier for short-term temperature range of -200 to +250°C
• Accuracy ±0.1°C (20 to +140°C), ±0.3°C (-20 to 19.9°C) & ±0.4°C (-40 to -20°C)
• Submersible (IP68)
• User Replaceable Battery
• Programmable Start & Stop Time
• Engraved Label
• Probe Lengths up to 7″ Available
• Battery Life Indicator

Specifications

HiTemp140 High Temperature Data Logger

• Temperature Sensor: Platinum RTD
• Temperature Probe Range: -200 to +260°C
• Temperature Resolution: 0.01°C
• Operating Temperature Range: -40 to +140°C
• Internal Memory: 65,536 readings
• Reading Rate: 1 sec to 24 Hours
• Battery Type: 3.6V High Temp Lithium Battery
• Battery Life (typical):
• 2 year @ 25°C, 1 min logging
• Enclosure: 316 Stainless Steel
• Dimensions: 44.45 x 25mm diameter
• Ingress Protection: IP68 (Fully Submersible)

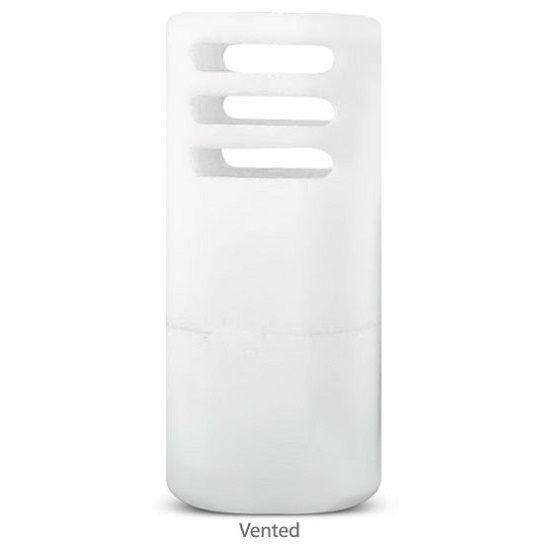

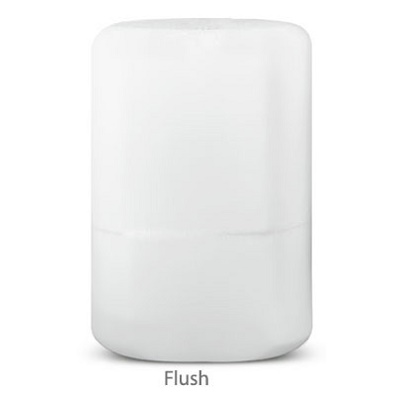

Thermal Barrier

• Operating Temperature Range: -200 to +250°C (Short-term)
• Dimensions: 110 x 51mm diameter
• Material: PTFE Enclosure
