Description

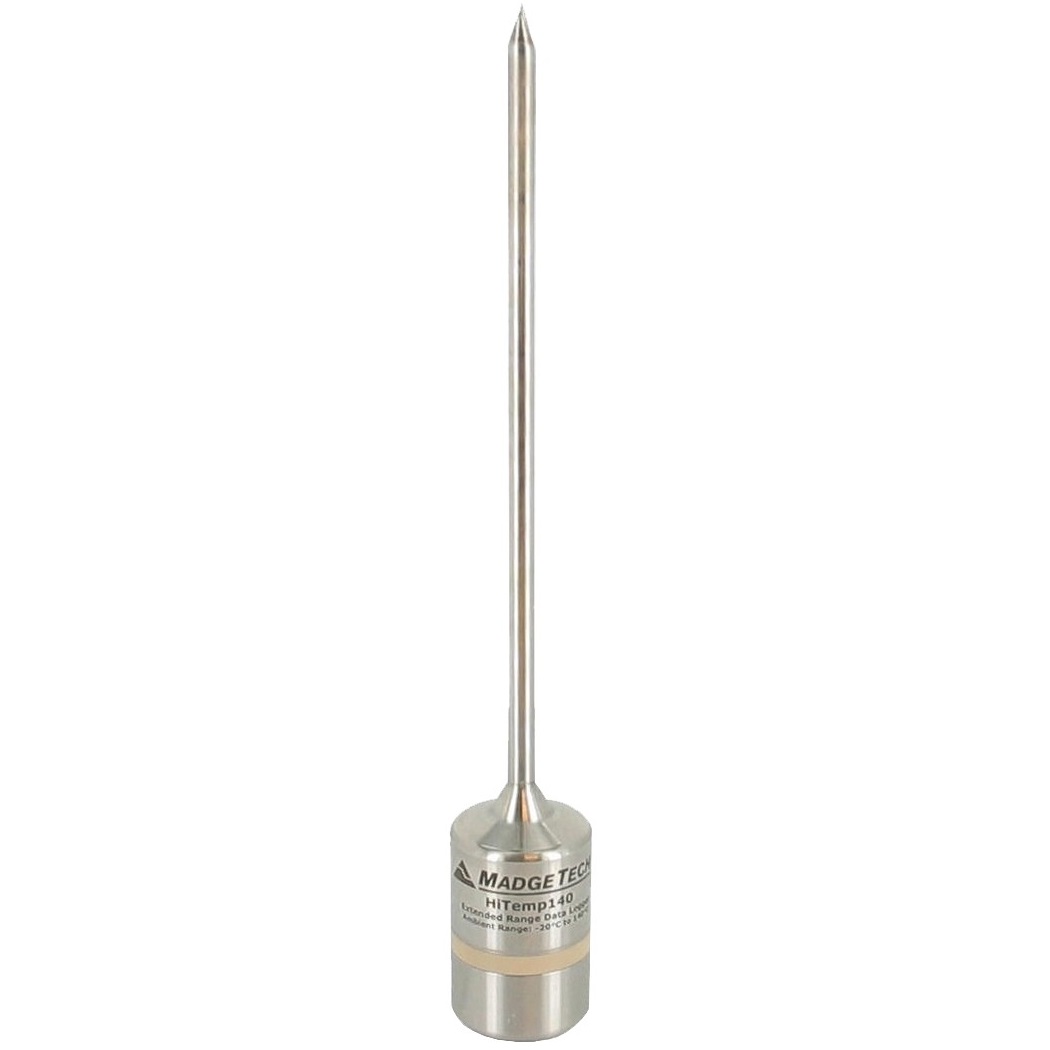

The HiTemp140-5.25 Data Loggers is an extreme temperature data logger with a rigid 5.25″ temperature probe. Measuring Temperature Range is -200 to 260°C. Operating temperature range -40 to +140°C, extendable using the Thermal shield to the full measurement range for specific duration. Internal memory is 65,536 readings with a 1 second to 24 hour logging interval and 2 year battery life.
Features
- Measurement Range -200 to +260°C
- Operates -40°C up to 140°C indefinitely
- Can be used with Thermal Barrier for short-term temperature range of -200 to +250°C
- Accuracy ±0.1°C (20 to +140°C), ±0.3°C (-20 to 19.9°C) & ±0.4°C (-40 to -20°C)
- Submersible (IP68)
- User Replaceable Battery
- Programmable Start & Stop Time
- Engraved Label
- Probe Lengths up to 7″ Available
- Battery Life Indicator
Specifications
HiTemp140 High Temperature Data Logger
| Temperature Sensor: | Platinum RTD |
| Temperature Probe Range: | -200 to +260°C |
| Temperature Resolution: | 0.01°C |
| Operating Temperature Range: | -40 to +140°C |
| Internal Memory: | 65,536 readings |
| Reading Rate: | 1 sec to 24 Hours |
| Battery Type: | 3.6V High Temp Lithium Battery |
| Battery Life (typical): |
2 year @ 25°C, 1 min logging |
| Enclosure: | 316 Stainless Steel |
| Dimensions: | 44.45 x 25mm diameter |
| Ingress Protection: | IP68 (Fully Submersible) |
Thermal Barrier
| Operating Temperature Range: | -200 to +250°C (Short-term) |
| Dimensions: | 110 x 51mm diameter |
| Material: | PTFE Enclosure |
