Submersible Datalogger with a low profile 316 stainless steel enclosure. Temperature Range: -40 to +150°C from a 100 ohms Platinum RTD with a resolution of 0.01°C. Internal Memory 65,536 readings, sample rate 1 second up to 24 hours and 2 year battery life. Operating Environment -40 to +140°C, 0 to 100%RH. Dimensions Body: 1.75 inch x 0.97 inch diameter. (44.45 x 25mm). Probe: 2.0 inch x 0.125 (0.188 inch transitional) diameter (51 x 3.2mm (4.8 transitional).
£449.15

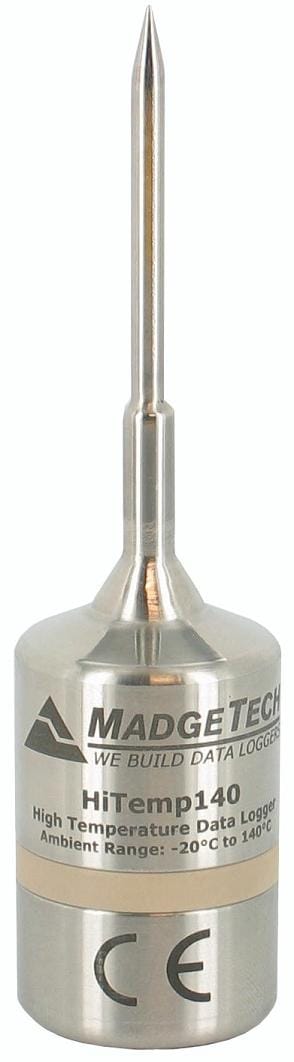

The HiTemp140-2-TD Data Loggers is an extreme temperature data logger with a rigid 2″ temperature probe, with 51mm transitional 4.8mm diameter section. Measuring Temperature Range is -200 to 260°C. Operating temperature range -40 to +140°C, extendable using the Thermal shield to the full measurement range for specific duration. Internal memory is 65,536 readings with a 1 second to 24 hour logging interval and 2 year battery life.
HiTemp140 High Temperature Data Logger
| Temperature Sensor: | Platinum RTD |
| Temperature Probe Range: | -200 to +260°C |
| Temperature Resolution: | 0.01°C |
| Operating Temperature Range: | -40 to +140°C |
| Internal Memory: | 65,536 readings |
| Reading Rate: | 1 sec to 24 Hours |
| Battery Type: | 3.6V High Temp Lithium Battery |
| Battery Life (typical): |
2 year @ 25°C, 1 min logging |
| Enclosure: | 316 Stainless Steel |
| Dimensions: | 44.45 x 25mm diameter |
| Ingress Protection: | IP68 (Fully Submersible) |
Thermal Barrier
| Operating Temperature Range: | -200 to +250°C (Short-term) |
| Dimensions: | 110 x 51mm diameter |
| Material: | PTFE Enclosure |
