Description

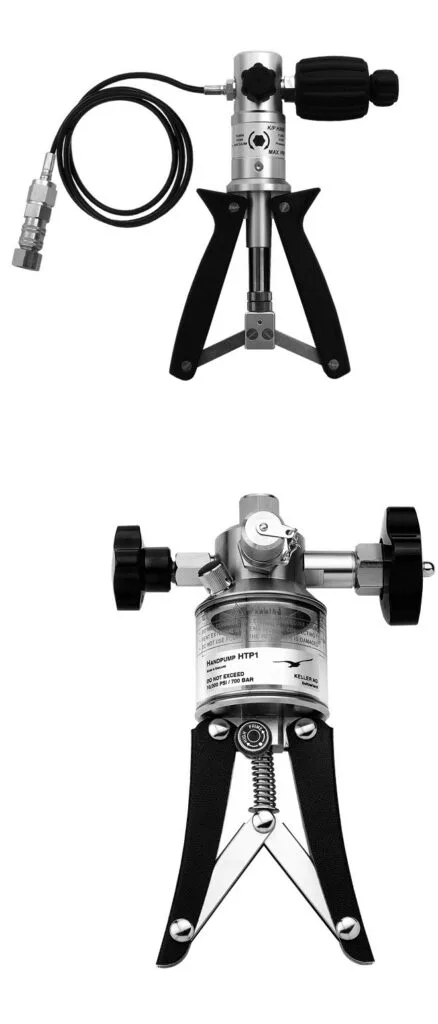

Designed for precision calibration and system testing, these portable hand pumps generate accurate pressures for field and laboratory verification of gauges, transmitters, and switches. The pneumatic unit delivers low-pressure and vacuum control up to 25 Bar (max. 40 Bar), while the hydraulic model utilises oil or distilled water media to reach extreme test pressures up to 700 Bar. Both pumps integrate fine-adjustment needle valves to enable exact pressure setting and resolution.
Features

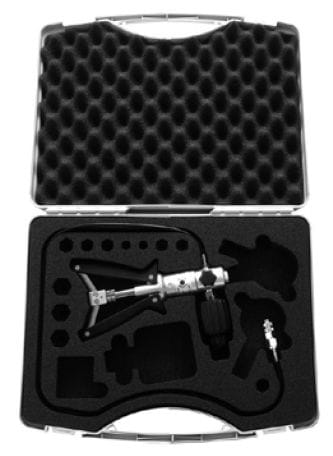

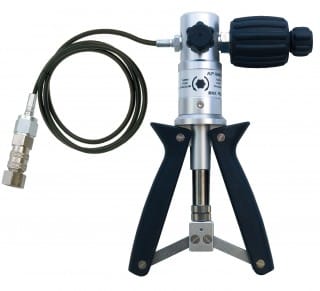

The K/P hand pump provides negative pressures/vacuums and pressures of up to 25 bar (max. 40 bar) using pneumatic pressure. The fine adjustment valve (which is integrated in the pump) allow for precise adjustments for more accurate pressures. A carrying case is available separately for this hand pump. Weight: ≈ 1.1 kg    Dimensions: 240 x 170 x 50 mm |
 |
|||

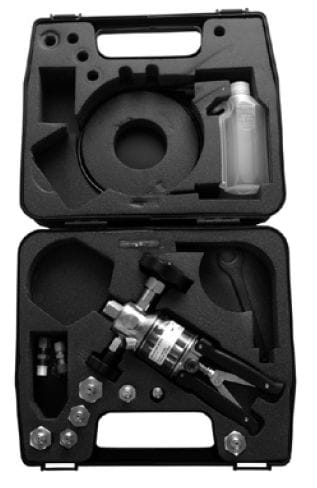

The HTP1 hand pump provides pressures of up to 700 bar using hydraulic pressure. The reservoir has a 100ccm capacity and will accept Hydraulic oil or distilled water as a pressure medium. The fine adjustment valve (which is integrated in the pump) allow for precise adjustments for more accurate pressures. This unit is supplied with accessories (Hose, adaptor, etc) in a stable carrying case. Weight: ≈ 1.7 kg    Dimensions: 255 x 176 x 70 mm Suitable reference manometers are available in the pressure sensors section.
|
