GRD1620-XF-4GM Data Logger

GRD1620-XF-4GM

GRD1620-XF-4GM Remote Data Logger. 4G, 3G, 2G and SMS Serial Server (LTE Cat 1 Global). Ideal Remote Data Logger/SMS Alarm Unit. One RS232 and one RS485 serial ports available for ModBus Master (reads up to 100 registers) and ITAS Satellite modem communication option. USB port available for local programming and configuration. The GRD can send SMS alarm messages directly from the unit for any alarm conditions. Script programming allows for simple operations and maths functions on input channels. GRD unit has an internal back-up memory for up to 100,000 readings in the event of connection issues with mobile network or remote server and to allow for data batching for satellite transmission. Power Supply: 10-30vDC.

£634.64

Need help finding the right product?

CONTACT US

Downloads

Datasheet

GRD1620-XF-4GM Data Logger

Description

Features

  • Data Logger with integral modem for 2G, 3G and 4G mobile networks
  • Serial Ports: 1 x RS232 & 1 x RS485. Protocols, Modbus Master/Slave, NMEA, ITAS Iridium Satellite.
  • Can be used anywhere in the world with GSM/GPRS or Iridium Satellite.
  • Fully user programmable via windows software with custom scripting programming.
  • Configuration for channel labels, scaling, alarm levels etc. via web interface
  • 10-30vDC power supply (150mA at 12vDC, 100mA @ 24vDC)
  • Unit stores up to 100,000 readings if the network connection be lost and uploads readings when the connection is re-established
  • Unit can be configured to send direct SMS messages on alarm conditions



The GRD has 3 LEDs indicators.

PWR: Power applied to the GRD
GPRS: State of registration of the GRD in the GPRS network (GPRS, EDGE, 3G)
LINK: State of the connection between the GRD and the Middleware

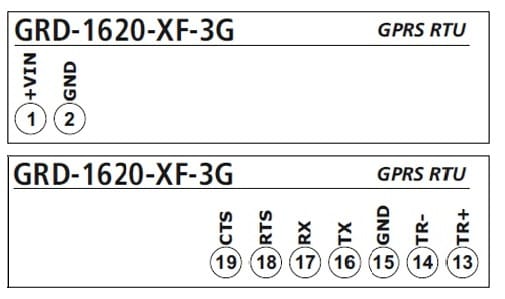

Wiring Diagram

Power supply, 10-30vDC.

The RS232 port is a 5-wire DTE type (TX, RX, RTS, CTS, GND).

The RS485 port is a 2-wire type (TR+ and TR-).

8811100001

£76.22

DigiRail-2A, Dual Universal Analogue Input. The unit provides a dual channel input for Thermocouples, PT100, mV, V and mA inputs with a RS485 ModBus output. The units provide a internal CJC for thermocouples and both input channels and the RS485 port are fully isolated up to 1,000V. Units are DIN Rail mountable with a working temperature of 0 to 70°C and supplied with the DigiConfig software to allow configuration.
MORE INFO
Add to basket
DigiRail-4C Digital Counter Input Module

8811400101

£73.07

DigiRail-4C Module, suitable for converting 4 Counter/Digital Input to RS485 Modbus. The unit provides a four channel input for Digital Inputs, suitable for pulse or digital state inputs, with a RS485 ModBus output. The units four input channels and the RS485 port are fully isolated up to 1,000V. Units are DIN Rail mountable with a working temperature of 0 to 70°C and supplied with the DigiConfig software to allow configuration. Can be used with various GRD, ERD and CMC units to expand the standard channels.
MORE INFO
Add to basket

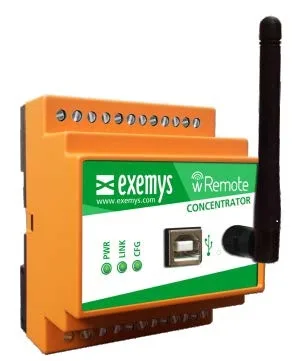

wREMOTE-1000-CN

wRemote-1000-CN

£460.16

wRemote wireless concentrator, acquires data from standard wRemote remote modules. Power supply 10-30vDC, operating temperature -5 to +65°C, DIN rail mounting. 1 x RS232/RS485 serial port, MODBUS protocol RTU/ASCII. 2.4GHz ZigBee radio communications, maximum range 2Km line of sight. Maximum number of remote nodes 50. Can be used to add extra channels up to the maximum limit of 100 Modbus registers. Not suitable for use with battery powered nodes.
MORE INFO
Add to basket

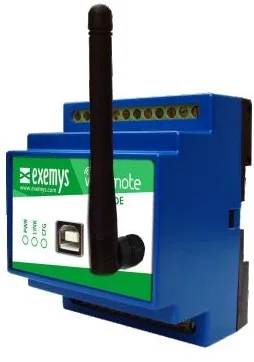

wRemote Node

WREMOTE-3005-ND

£358.11

wRemote wireless remote node, with 4 analogue 0-10vDC or 4-20mA, 4 digital inputs, 2 digital outputs (open collector). Power supply 10-30vDC, operating temperature -5 to +65°C, DIN rail mounting. 1 x RS232/RS485 serial port, MODBUS protocol RTU/ASCII. 2.4GHz. ZigBee radio communications, maximum range 2Km line of sight.
MORE INFO
Add to basket
wRemote Node

WREMOTE-5005-ND

£532.91

wRemote wireless remote node, with 2 analogue 0-10vDC or 4-20mA and 4 digital inputs. 2 analogue 0-10vDC or 4-20mA and 2 digital outputs (open collector). Power supply 10-30vDC, operating temperature -5 to +65°C, DIN rail mounting. 1 x RS232/RS485 serial port, MODBUS protocol RTU/ASCII. 2.4GHZ ZigBee radio communications, maximum range 2Km line of sight.
MORE INFO
Add to basket
